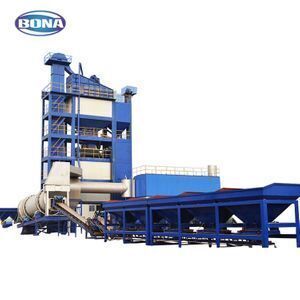

100 to 120 ton stationary asphalt mixing plants for sale

Supplier: Zhengzhou Bona Enterprise Co., Ltd.
Region: Henan, China
Contact: Ms Anne Lee
Price: $60000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Vibrating screen:	4;
Power(W):	230kw;	Control System:	PLC+colorized touching screen/computer;
Cold Feed Bin:	4*8m3;	Brand Name:	BONA;
Drying drum:	1.8x8.0;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash;
Bag filtering area:	450m2;	Mixer capacity:	1600kg;
Product name:	100 to 120 ton stationary asphalt mixing plants for sale;	Dimension(LWH):	10*40HQ;
Certification:	ISO&CE;	Place of Origin:	Henan China;
Hot mixture storage silo:	40ton;	Bitumen tank capacity:	2X4000L;
Supply Ability:	1000 Unit/Units per Quarter;	Port:	Qingdao;
Rated output:	110-125t/h;	After-sales Service Provided:	Field installation, commissioning and training;
Voltage:	380v;	Packaging Detail:	100 to 120 ton stationary asphalt mixing plants for sale ,The whole set can be loaded in ten 40HQ.;
Weight:	120t;	Condition:	New;

100 to 120 ton stationary asphalt mixing plants for sale

LB series asphalt mixing plant includes 12 systems: Cold aggregate batching system; Heating and Drying System; Lifting System;Screening System; Weighing System; Mixing System; Dust Filter System; Powder Supply System;
Asphalt Supply System, Finished Products Storage System; Air Circuit System and Electrical Control System. LB1500 asphalt mixing plant is a middle-type stationary batch asphalt mixing plant, widely used in road construction,
like expressway or highway build and maintenance.

Senior engineers to ensure quality and durability.

User-friendly control
Low manpower involvement
Fast and easy installation and start up
Durable and reliable
Low maintenance cost
Excellent fuel efficiency

LB Asphalt Mixing Plant Technical Specification
Model	LB750	LB1000	LB1200	LB1500	LB2000	LB2500	LB3000
Rated capacity(t/h)	45-60	60-90	90-105	110-125	140-175	180-200	200-240
Mixer capacity(kg)	800	1100	1250	1600	2200	2500	3000
Cold hopper(m3)	4*6.5	4*6.5	4*6.5	4*8	5*8	5*8	5*10
Drying drum(Diameter*Length)	1.2*5.2	1.5*6.6	1.8*8.0	1.8*8.0	2.2*9.0	2.6*9.5	2.6*9.5
Bag filtering area(m2)	230	420	420	450	560	620	917
Vibrating screen	4	4	4	4	5	5	5
Bitumen heating boiler(*104Kcal/h)	15	30	30	40	50	50	75
Bitumen tank Capacity(L)	1*30,000	1*40,000	1*40,000	2*40,000	3*40,000	3*40,000	5*40,000
Hot mixture storage silo(ton)	15	30	30	30	30	70	80
Control system	PLC+ colorized touching screen/computer

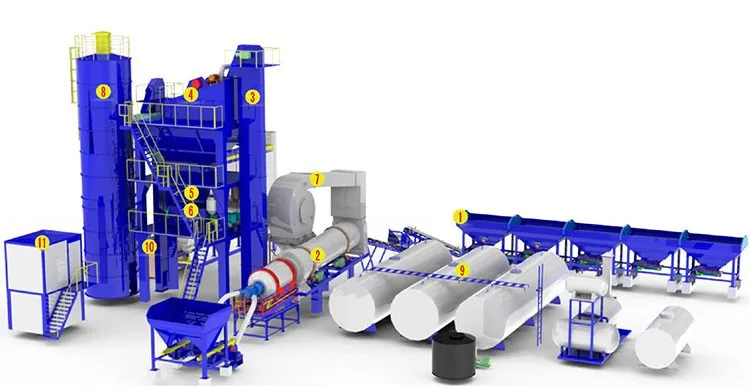

Product Description

1	The cold material ration system	5	Measuring system	9	Asphalt feeding system
2	Dry heating system	6	Mixing system	10	gas path system
3	Hoisting system	7	Dust pelletizing system	11	electrical control system
4	Screening system	8	Filler feeding system

Product details

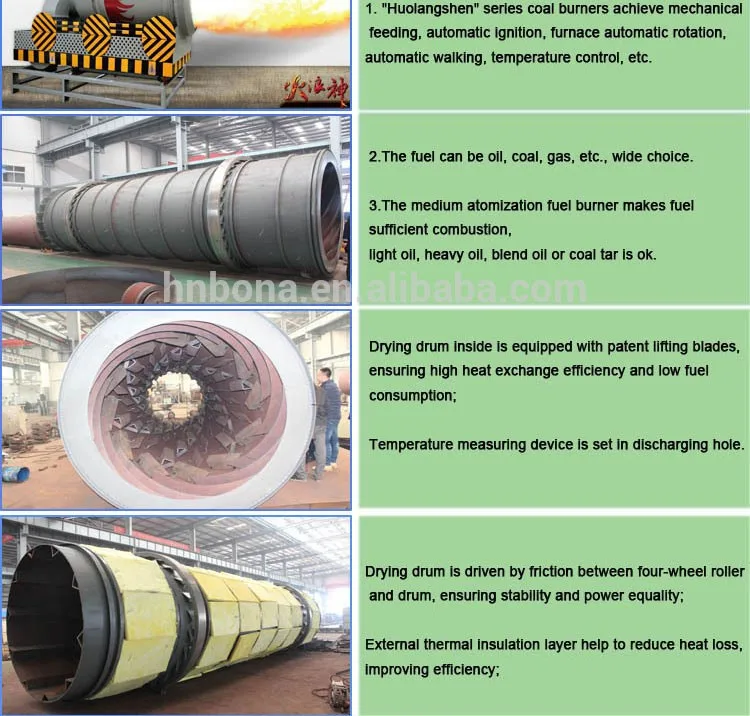

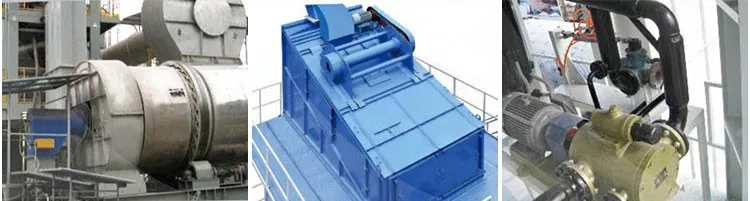

The optimal design of lifting blades repeatedly (patent no. 200520031574.1), and a new aluminum foil coated insulating layer, effectively reduce the heat losses in drying drum, save fuel consumption, improve the thermal efficiency Drying cylinder combustion zone adopts wear-resisting, heat-resisting material, long service life

Chain bucket elevator with spring tensioner automatically, smooth running.

High strength and durable screen mesh; segmented mesh layout, 270°C screen opening that is convenient to replace new mesh.

Complete seal of whole body, with negative pressure design inside to avoid dust emission.

hot aggregate use rough and accurate weighing, combined with automatic impulse compensation program, which will guarantee high weighing accuracy.

Advanced computer automatic compensation function, which will ensure much more accurate weighing control system.

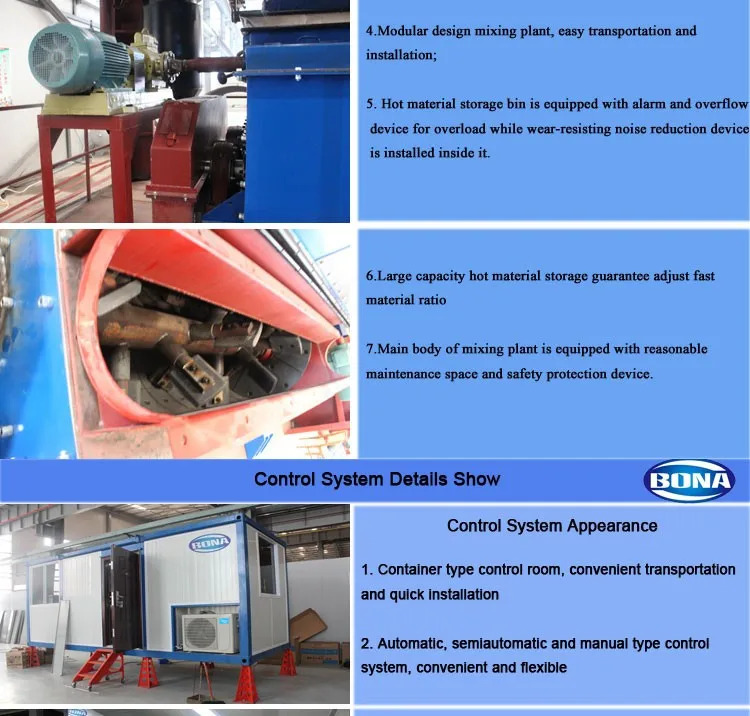

modular and integrated design make plant transportation and installation convenient, set with enough space for maintenance and safety device, running under the micro negative pressure circumstance will prevent filler floating.

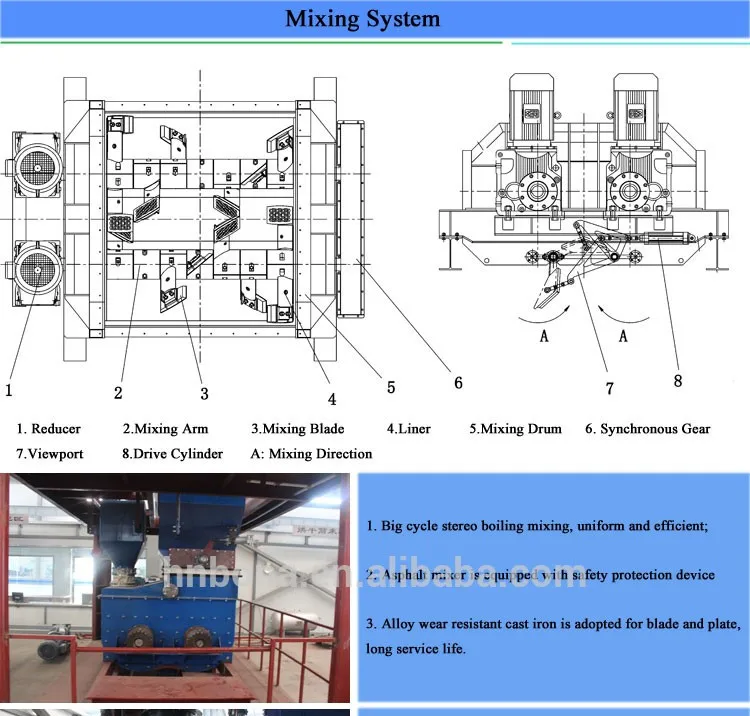

Full circulating and three dimensional mixing, uniform and efficient; equipped with safety devices; mixing paddle and liner board are made of wear-resistant cast alloy with long service life.

multi-stage dust collection, different size of filler will be collected and recycle which will improve the utilization of asphalt mixing plant Parts.

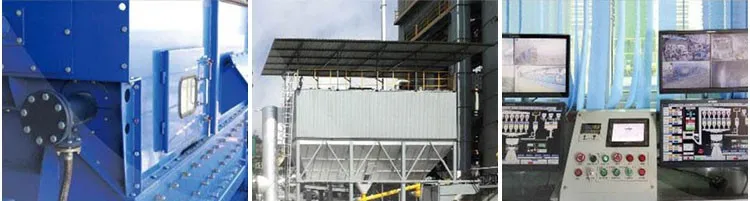

Bag house filter adopted DUPONT NOMEX filter bags, waterproof and oil-filter; high pressure compressed air impulse blowing system that will be much more efficient to clean dust, which will meet the environmental emission standards.

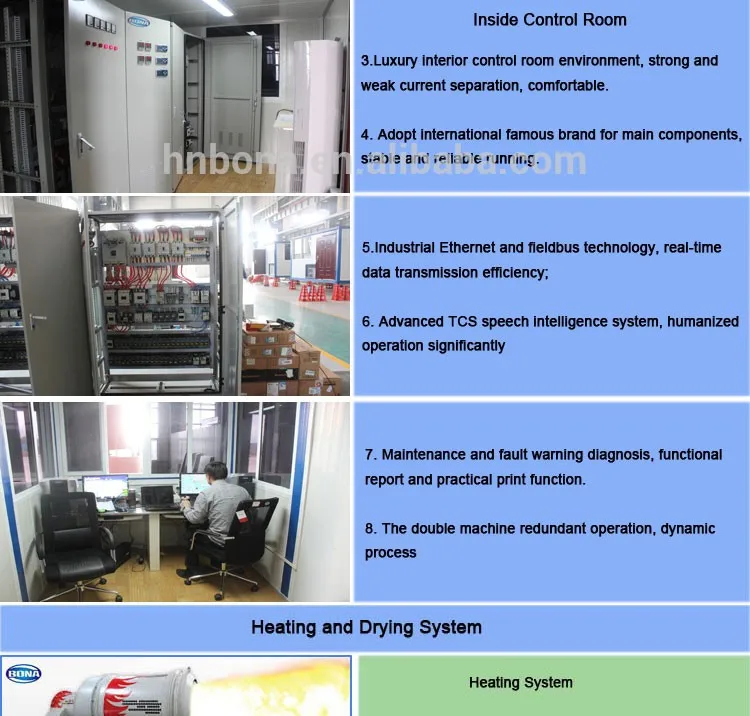

container control room will be convenient for transport, double layer design for heat reservation and wide vision, annexed ergonomics user-friendly make the operator work easily in complex producing site.

Optional: Automatic/Semi-automatic/Manual mode; easy to be understood and learned for operator.

Optional: PC or Color touching screen; equipped with functions of production formula and production data storing.

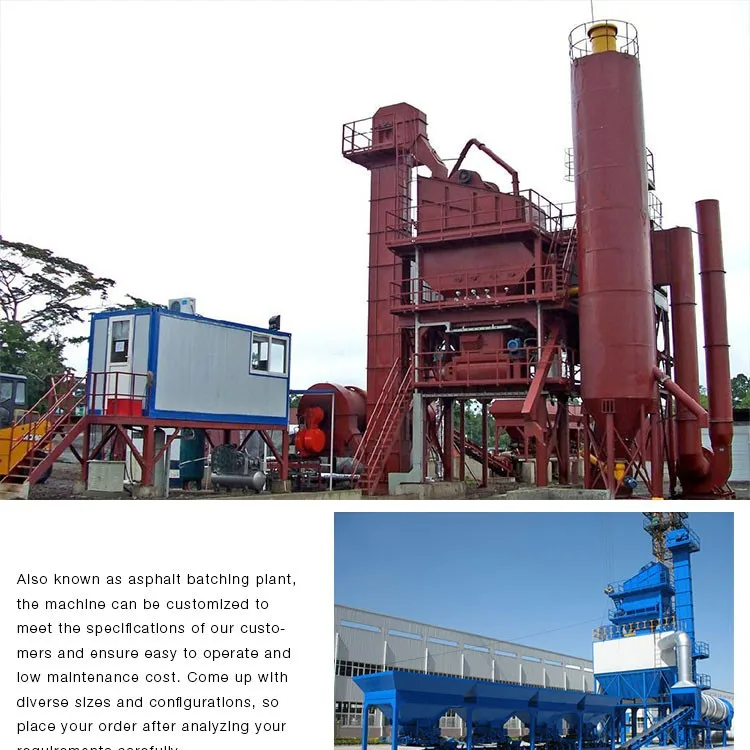

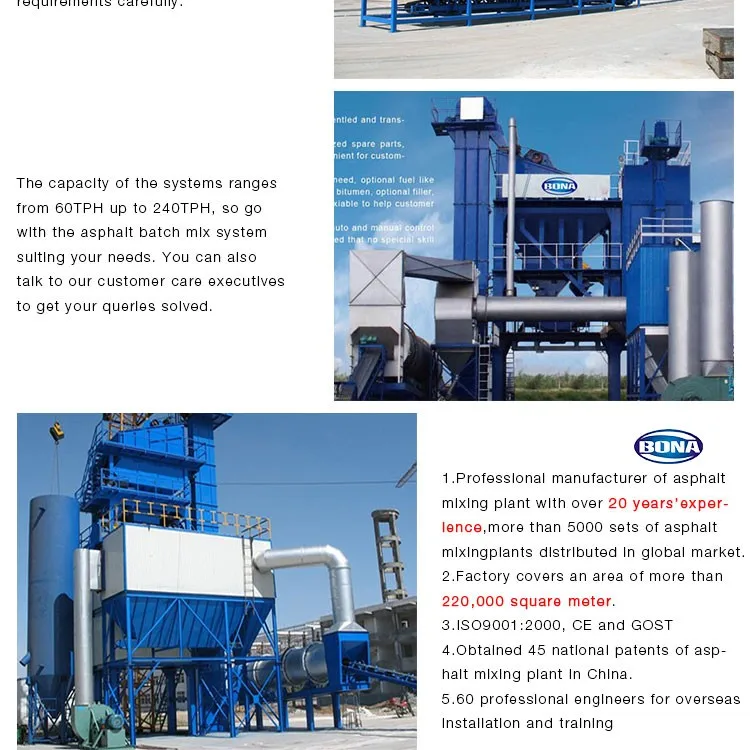

container type asphalt plant details show:

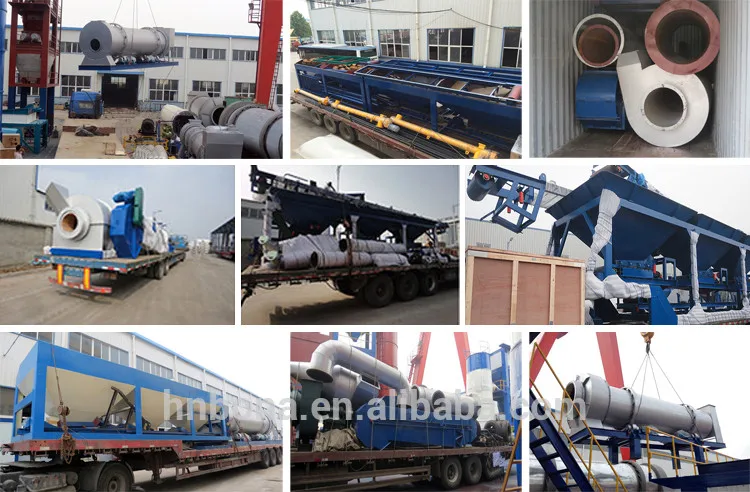

Packaging & Shipping

Package terms: Easily damaged part use sturdy wooden case and cartons packing.
Other parts are in nude, 20GP, 40 HQ standard exporting package, or according to the buyer's request.
Delivery time: 10-15 workdays (in stock); 25-35 workdays (out of stock).
Means of transportation:
1. By sea, Main port: Qingdao,Tianjin,Shanghai,Dalian,Quanzhou,Guangzhou,Shenzhen port.
2. By rail, Inland port: At mohe port, Fuyuan port, Suifenhe port, Alataw Pass, Pingxiang port.

Our Services

1. Provide Turn-Key Solutions, especially technical consultation service,
2. Provide Installation, debug, and provide complete technical training.
3. Guarantee: 15 months in common using condition (except damageable and artificial destruction)

4. Repair: 1) We provide technical guidance all life.
2) Within the guarantee period, we will offer spare parts free of charge
If spare part is broken and the problems caused by our quality. we will repair in free of charge.
