water tank float switch/vertical float switch/magnetic float switch
-
Supplier: Yueqing Sonor Imp. & Exp. Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Bruce Wang -
Price: $1.50 /piece -
Min. Order: 1 piece
| Payment Terms: | T/T,Western Union,MoneyGram,PAYPAL; | Working Temperature: | -30~125℃; |
| Place of Origin: | Zhejiang China; | Reed Switch: | OKI,MKA,COTO,HAMLIN; |
| vertical float switch: | stainless steel float switch; | Operating Temperature: | 120; |
| Current: | 1.5A(220V),0.5A(110V); | Media Type: | Liquid; |
| horizontal float switch: | pp float switch; | Brand Name: | SONOR; |
| Model Number: | SNR; | Flow Rate: | NA; |
| Cable: | Customized; | Certification: | CE, LVD, RoHS; |
| Contact form: | NO,NC; | Supply Ability: | 1000 Piece/Pieces per Week; |
| Packaging Detail: | 10PCS/BAG; | Port: | SHANGHAI NINGBO; |
14 years manufacture experience
Certificated:CE&RoHS
Paypal is OK.
Data sheet:
Data Scan: | 1A1 | 2A1 | |
Max Contact Rating | 10W | 50W | |
Max Switching Voltage | 100VDC | 220VDC | |
Max Switching Current | 0.5A | 1.5A | |
Mac Breakdown Voltage | 220VDC | 300VDC | |
Max Carry Current | 1.0A | 3.0A | |
Max Contact Resistance | 100mΩ | 100mΩ | |
Temperature Rating | SS 304 SS316 | -30~+125℃ | -30~+125℃ |
PP | -30~+85℃ | -30~+85℃ | |
water tank float switch/vertical float switch/magnetic float switch

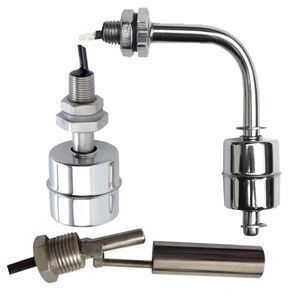

Vertical float switch: stainless float switch/level float switch
PP float switch
Horizontal float switch
Our factory can provide below 450 ° C Liquid float controller , all kinds of non-standard flanges, different sizes
If the products is not your expecting,please tell me your detail requirements.
Customized Float Switches
Working Systems
liquid float switch/vertical float switch/magnetic float switch Working principle
When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float
ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.
sensor,Level Indicator,Level Controller,Float Switch,liquid level sensor,fluid level controller,water lever control, water level switch, flowing sw
| Angela /Sales Manager |
| ******************************************* |
| YueQing Sonor Imp&Exp Co.,LTD |
| Add:Liushi Town,Yueqing City,Zhejiang,China,325603 |
Skype: happy2817 whatsapp:0086 18066287511 wechat:snr879 |
| Http://www.chinasonor.com www.floatswitch.net |
