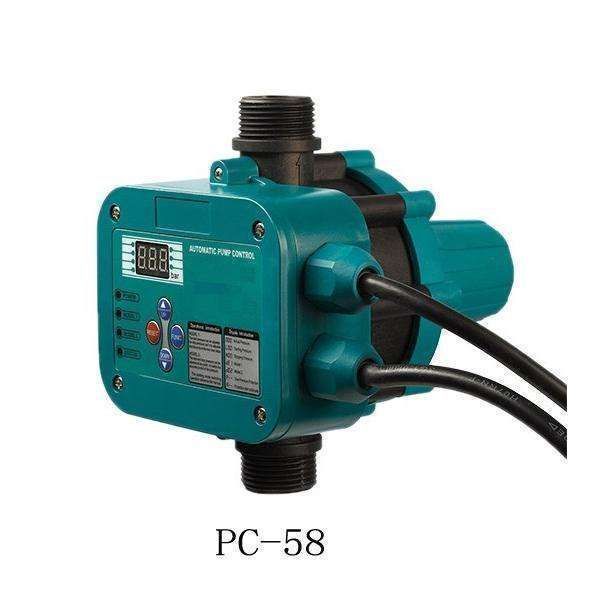

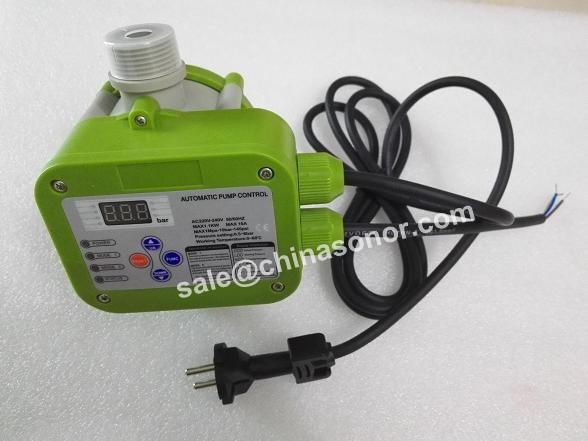

PC-58 pressure switch with digital display/water pump switch with digital display/digital display pressure switch

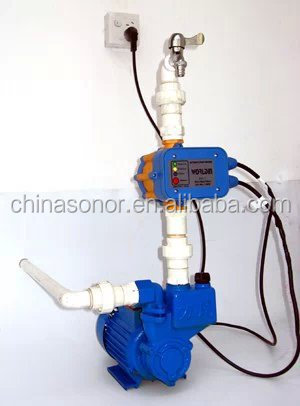

Automatic pressure control water pump

Function:

1. Electric control switch for water system, automatic start and stop of water pump

2. Automatically detect the amount of water, stop the pump when it is short of water, and prevent the pump from being damaged due to idling

3. Completely replace the traditional pump control system consisting of pressure switches, pressure tanks, check valves, etc.

Technical data:

1. Rated voltage: 220V

2. Maximum rated current: 10A or 30(16)A

3. Maximum power: 1.1KW or 2.2KW

4. Maximum allowable pressure: 10 bar

5. Maximum liquid temperature: 0~80℃

6. Adjust the pressure range: 0. 5~6bar

Features:

Using high-precision pressure sensor technology combined with electronic control technology to achieve precise control of the starting point of the pump

1. Human-computer interaction interface, the starting pressure can be adjusted at any point from 0.5bar to 6bar, no need to set the stop point, to ensure the pump works at the maximum lift.

2. It adopts flow sensor technology, pressure sensor technology and electric control technology, which is more suitable for the control of water pumps.

3. The small flow water supply motor fault protection technology is adopted to effectively solve the problem of water pump heating frequently caused by small flow water supply motors, which can effectively protect the motor and improve system reliability and service life.

4. Through the new product control technology, the water pumps that have not been used for a long time are restarted regularly, which solves the following problems. First, the bearings and shafts are easily corroded and stuck, and second, the motor is burned

5. There is an overcurrent protector in the control board, which effectively solves the problem of motor burnout caused by grid voltage fluctuations or motor stalling, and the current increases rapidly

6. The structural design of the integrated buffer tank device has a longer service life, better pressure-holding adjustment, self-leakage protection, and does not start the pump frequently

7. Undervoltage and overvoltage protection.

Before quoting, we need the following information:

• 1. Media
• We will recommend the most suitable model for you.
• For example, if it is used for oil, stainless steel material and high temperature resistance should be used. cable;
• If it is used in water, ordinary PP cables are fine.
• 2. Cable material and conductor size
• The cable can be PVC or rubber;
• Conductor size can be 3*0.5mm2, 3*0.75mm2, 3*1mm2.
• 3. Cable length
• Length can be customized;
• 4. Quantity
• There is a discount for large quantity, and you can get a refund if it is just a sample.
