Hook Electrmangnet Disk Manual Portal Crane

Product details
Span:5 meter;Place of Origin:China;
After-sales Service Provided:Video technical support,Online support,Free Spare Parts;Material:Aaluminium;
Max. Lifting Height:3 meter;Application:workshop;
Warranty:1 Year;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:SHANGHAI;Condition:New;
Feature:Portal Crane;Rated Lifting Moment:9800 Nm;
Supply Ability:50 Set/Sets per Week;Rated Loading Capacity:1000kg;
Brand Name:Maxload;Packaging Detail:Plywood Cases;
Certification:CE & ISO & SGS;
Product Description

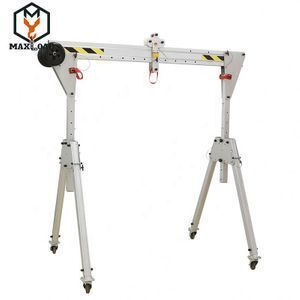

  Hook Electrmangnet Disk Manual Portal Crane



Lightweight, portable and safe, the innovative and unique PORTA-GANTRY lifting system range is designed for easy transport, rapid assembly and safe use. Maxloadc&h offers a range of configurations, lift-ratings and personnel lifting options.

General Drawing

Below 500kg Aluminium Alloy Portable Portal Crane





ModelDimension Parameter (mm)N.W (kG)
ABCEFGHJKL
PRGS20200020761100-15001914-21142064-226411581850-2050219041544033
PRGS23230023761200-1800237634
PRGS40400040762700-3500407640
PRGM20200020761100-15001818-22181968-236812151755-2155207634
PRGM23230023761200-1800237634
PRGM40400040762700-3500407640
PRGT20200020761100-15002092-29922242-314215862028-2928263138
PRGT23230023761200-1800263139
PRGT40400040762700-3500407644



Over 1 ton Aluminium Alloy Portable Portal Crane

+
S.W.L
(kg)
ModelDimension Parameter (mm)Leg Weight
(kg)
Wheel Size
DEFHG
1000S1605-23555x15026752007-275712123385x150
 M2101-28515x15031712503-325314294085x150
 I2188-31885x20034992581-358117264685x200
 T2879-40796x20043993281-448120115185x200
2000S1605-23555x15026752007-275712123385x150
 M2101-28515x15031712503-325314294085x150
 I2188-31885x20034992581-358117264685x200
 T2879-40796x20043993281-448120115185x200
3000S1660-24105x15027302062-281212125585x200
 M2156-29065x15032262558-330814296085x200
 I2188-31885x20034992581-358117267085x200
 T2879-40796x20043993281-448120118285x200
5000I2181-31815x20035922717-3717173697125x200
 T2849-40496x20044873412-46122021106125x200
Product Advantage
  • 500kg up to 5000kg Various Loading Capacity
  • Maximum combined personnel lifting capacity up to 2000kg (depending on model)
  • EN795:1997 certified - as part of an EN363 compliant system (500 & 1000 - 3 persons, 2000, 3000 & 5000 - 5 persons)
  • All models suitable for use in ATEX Zone 2 explosive atmospheres
  • With easy on-site assembly within manual handling guidelines:

         - 4 portable parts assembled on just 4 bolts
         - Simple ‘scissoring’ assembly in just 2-3 minutes



  • ERGONOMIC

        - 360° swivel-locking castors as standard
        - Simple, manual height & span adjustment
        - Ultra-safe captive trolley
        - Ergonomic design of profiles and handles



  • Bolted structure, lateral beam and leg bracing features
  • Variety of standard configurations available, plus customisation for specific requirements and interchangeable components.
