HVST-1000Z Metal Dental Use Portable Digital Micro Vickers Hardness Tester

Supplier: Wuhan Bonnin Technology Ltd.
Region: Hubei, China
Contact: Ms Aimee Wang
Price: $4050.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Shanghai, Shenzhen;	Equipment:	Digital Vickers Micro Hardness Tester;
Model Number:	HVST-1000Z;	Hardness Measuring Range:	5~3000 HV;
Place of Origin:	Hubei;	Packaging Detail:	Standard export box for air sea shipping.;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	Bonnin;
Power supply:	220V 50Hz;	Test Force:	10, 25, 50, 100, 200, 300, 500, 1000gf;
Certificate:	CE ISO;	Supply Ability:	100 Set/Sets per Month;
Type:	Hardness Tester;

Product Description

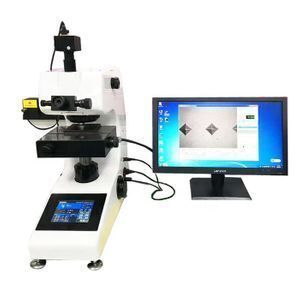

HVST-1000Z touch screen digital display automatic turret micro hardness tester, automatic lifting, auto focus, automatic programming, automatic measurement. HVS-1000 Digital Display Micro Vickers Hardness Tester is used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grades of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

Feature:

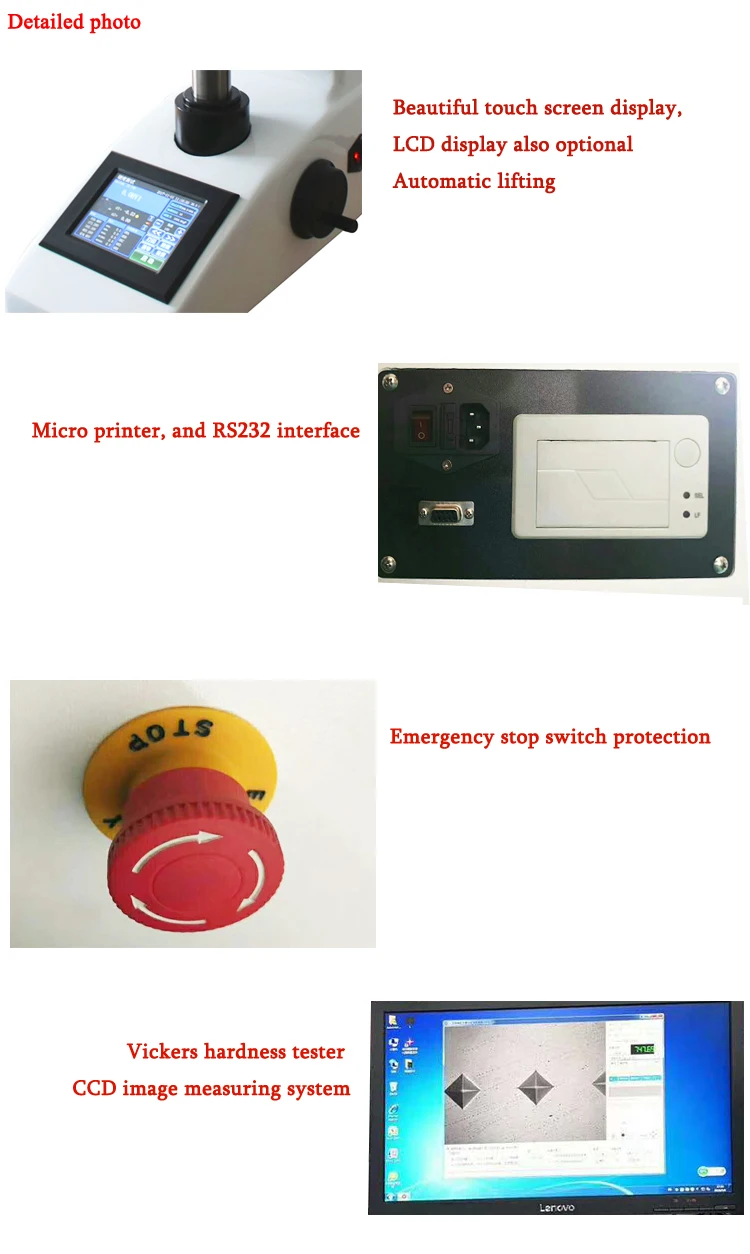

2.1. HV-1000Z is manual turret switching. HVS-1000 is LCD digital display, HVST-1000Z touch screen digital display automatic turret

2.2. Automatic data input, LCD automatically displays hardness value, the printer will print hardness test results.

2.3. High-precision optical measuring systems, precision coordinate testing table.

2.4. Automatic testing process, easy to operate, no human operating error.

2.5. Frictionless loading shaft, high precision testing force.

2.6. Convert various hardness values.

2.7. Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384.

Specifications:

Model	HV(S)-1000Z
Test Force	10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N)
Minimum test unit	0.025µm
Conversion scale	HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness test range	5~3000HV
Test force applying method	Automatic (loading, holding load, unloading)
Optical system	1, manual micrometer eyepiece; 2, total magnification (μm): 100 × (observation), 400 × (measurement); 3, measuring range (μm): 200; 4, resolution (μm): 0.25
Light channel	Double light channel (eyepiece and CCD camera channel)
Test force holding time	1-60s
X-Y test bench	Size: 100 * 100mm Maximum movement: 25 * 25mm
Data output	LCD display read, built-in printer and RS-232 interface
Maximum height of specimen	110mm
The distance of the indenter center to the outer wall	120mm
Power supply	AC220V + 5%, 50-60Hz
Dimensions	405 * 290 * 480mm
Host weight	About 40Kg

Standard Accessories:

Coordinate Testing Table	1 PIECE
Thin shaft Testing Table	1 PIECE
Sheet Testing Table	1 PIECE
Small Flat-clamp Testing Table	1 PIECE
Large V-shaped Block	1 PIECE
Small V-shaped Block	1 PIECE
Diamond Quadrangular Pyramid Indenter	1 PIECE
Standard Micro Hardness Block	2 PIECE

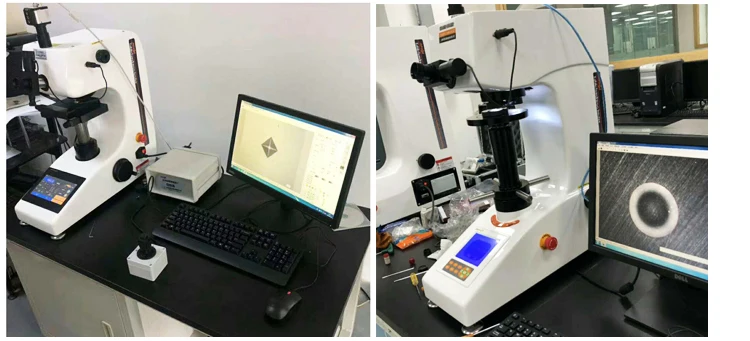

Laboratory use

Packaging & Shipping

Certifications

FAQs

FAQ

1. How do you ensure your instruments's quality?
All our instruments are 100% new. We have ISO 9001:2008 and CE certified, all instruments are inspected and debugging well before delivery with superior quality.

2. What is the delivery time?
Usually within 3 to 15 days after receiving your payment. The accurate time depends on your quantity.

3. How do you package the instruments and ship them?
Usually covered with foam and film, then packed with standard export carton/plywood box. Sea shipping/Air shipping/International express is optional base on client’s needs.

Please send us inquiry to buy, if interested. Thank you!
