Wholesale Cheap Metal Vickers Hardness Testing Machine Micro Vickers Hardness Tester Price

Product details
Port:Shanghai, Shenzhen;Place of Origin:Hubei;
Power supply:220V 50Hz;Certificate:CE ISO;
Type:Vickers Hardness Testing Machine;Supply Ability:100 Set/Sets per Month;
Equipment:Digital Micro Vickers Hardness Testing System;Test range:5~3000 HV;
Brand Name:Bonnin instrument;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
hardness test (N):0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N.;Max. height of specimens (mm):220;
Packaging Detail:Standard export box for air shipping.;Model Number:HV-1000Z, HVS-1000;
Product Description

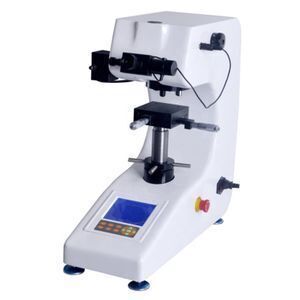

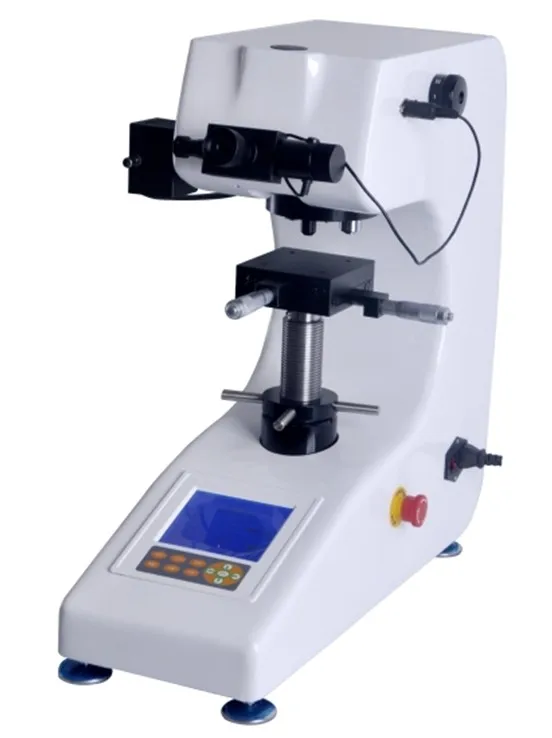

HVST-1000Z touch screen digital display automatic turret micro hardness tester, automatic lifting, auto focus, automatic programming, automatic measurement. HVS-1000 Digital Display Micro Vickers Hardness Tester is used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grades of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.



Feature:

2.1. HV-1000Z is manual turret switching. HVS-1000 is LCD digital display, HVST-1000Z touch screen digital display automatic turret

2.2. Automatic data input, LCD automatically displays hardness value, the printer will print hardness test results.

2.3. High-precision optical measuring systems, precision coordinate testing table.

2.4. Automatic testing process, easy to operate, no human operating error.

2.5. Frictionless loading shaft, high precision testing force.

2.6. Convert various hardness values.

2.7. Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384.



Specifications:

Model

HVS-1000Z

Test Force

10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N),  200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N)

Minimum test unit

0.025µm

Conversion scale

HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Hardness test range

5~3000HV

Test force applying method

Automatic (loading, holding load, unloading)

Optical system

1, manual micrometer eyepiece;

2, total magnification (μm): 100 × (observation), 400 × (measurement);

3, measuring range (μm): 200;

4, resolution (μm): 0.25

Light channel

Double light channel (eyepiece and CCD camera channel)

Test force holding time

1-60s

X-Y test bench

Size: 100 * 100mm Maximum movement: 25 * 25mm

Data output

LCD display read, built-in printer and RS-232 interface

Maximum height of specimen

110mm

The distance of the indenter center to the outer wall

120mm

Power supply

AC220V + 5%, 50-60Hz

Dimensions

405 * 290 * 480mm

Host weight

About 40Kg


Standard Accessories:

Coordinate Testing Table

1 PIECE

Thin shaft Testing Table

1 PIECE

Sheet Testing Table

1 PIECE

Small Flat-clamp Testing Table

1 PIECE

Large V-shaped Block

1 PIECE

Small V-shaped Block

1 PIECE

Diamond Quadrangular Pyramid Indenter

1 PIECE

Standard Micro Hardness Block

2 PIECE



Laboratory use





Packaging & Shipping





Certifications

FAQs

FAQ

1. How do you ensure your instruments's quality?
All our instruments are 100% new. We have ISO 9001:2008 and CE certified, all instruments are inspected and debugging well before delivery with superior quality.

2. What is the delivery time?
Usually within 3 to 15 days after receiving your payment. The accurate time depends on your quantity.

3. How do you package the instruments and ship them?
Usually covered with foam and film, then packed with standard export carton/plywood box. Sea shipping/Air shipping/International express is optional base on client’s needs.



Please send us inquiry to buy, if interested. Thank you!
