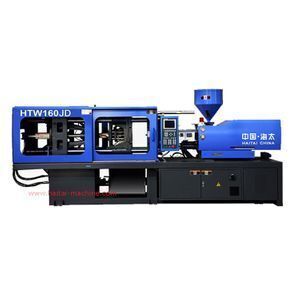

HTW160JD Servo Motor Injection Molding Machine
-
Supplier: Ningbo Haitai Industry And Trade Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Peijune Wang -
Price: $21900.00 /set -
Min. Order: 1 set
| screw speed: | 180 rpm; | Injection Rate (g/s): | 160; |
| Condition: | New; | Distance between Tie Bars: | 460 * 460 mm; |
| Payment Terms: | L/C,D/P,T/T,Western Union; | Min mould height: | 180 mm; |
| Opening Stroke: | 435 MM; | space between tie bar: | 460 x 460 mm; |
| Applicable Industries: | Manufacturing Plant; | Place of Origin: | Zhejiang China; |
| Injection Weight (g): | 319; | Key Selling Points: | Multifunctional; |
| Ejector stroke: | 135 mm; | Injection Screw diameter: | 42-45-50mm; |
| Clamping Force (kN): | 1600; | Plastic Processed: | PP,ABS,PPR,HDPE,EPS,PA,PE,HDPE/PP,ABS/PP,PE/PP; |
| Machine Type: | Hydraulic; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Max mould height: | 520 mm; | Automatic: | Yes; |
| Style: | Horizontal; | Screw diameter (mm): | 45; |
| Power (kW): | 18.5; | Packaging Detail: | Servo Motor Plastic Injeciton machine packed in WOODEN PALLET; |
| Warranty: | 1 year; | Certification: | CE, TUV; |
| Model Number: | HTW160JD; | Type: | Injection molding; |
| Ejector force: | 55 kn; | injection pressure: | 203-177-143 mpa; |
| Plastic Type: | Thermoplastic; | Screw L/d ratio: | 23.6-22-19.8; |
| Brand Name: | HAITAI; | Weight (KG): | 7000; |
| Port: | NINGBO; | After-sales Service Provided: | Online support; |

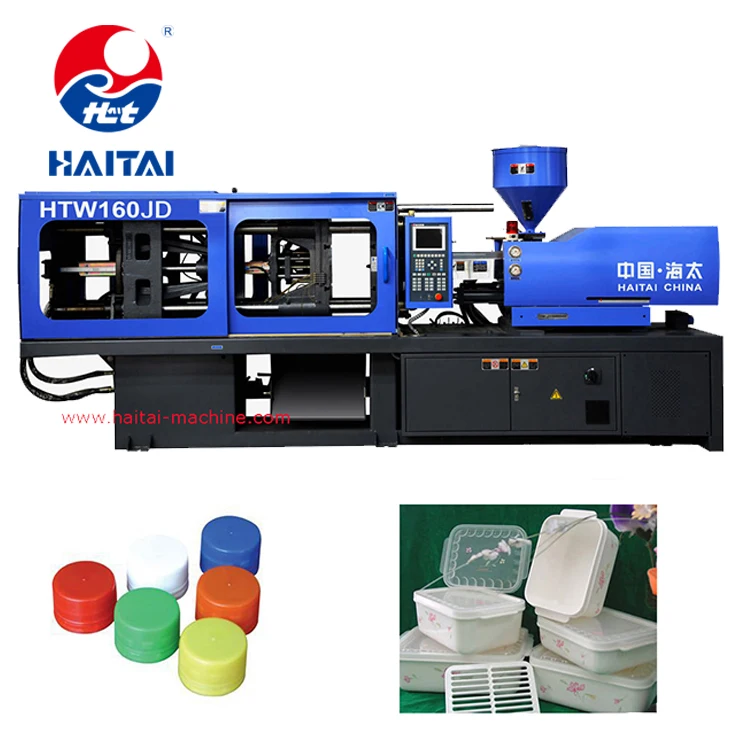

HTW160JD plastic injection Moulding machine Servo Motor Energy Saving Injection Molding Machine
1. Main Products:
A. Servo energy-saving injection molding machine. (HTW-JD)
B. PET Injection molding machine. For bottle perform. ( HTW-PET)
C. UPVC/PVC Injection molding machine. ( HTW-UPVC/PVC)
D. FAST Injection molding machine. ( HTW-F)
E. Variable Pump Injection molding machine. ( HTW-JC)
F. Two Color Injection molding machine.
2. SPECIFICATIONS
Advantage: Strong Technical design ability, Stable quality, and large production capability, Famous brand.
HTW/JD servo energy saving Injection Molding Machine, equipped with high performance servo motor controlling system, the machine's output power can vary in accordance with the loading changes,which reduce
energy consumption and noise. The motor rotates at lower speed in holding pressure stage, an doesn't
work in cooling time.
The Performance of servo energy-saving molding machine:
- Servo motor can optimize the match of energy demand and realize automatic adjustments.
- It can improve injection precision
- It can greatly save power and water, resulting in environment-protection and energy-saving
- Quick response and low noise.
3. TECHNICAL PARAMETERS
SPECIFICATION | HTW160 | |||
A | B | C | ||
INJECTION UNIT | ||||
| Screw diameter | mm | 42 | 45 | 50 |
| Screw L/D ratio | L/D | 23.6 | 22 | 19.8 |
| Shot volume(theoretical) | cm3 | 305 | 350 | 432 |
| Injiection weight(ps) | g | 277 | 319 | 393 |
| Injection rate | g/s | 138 | 160 | 196 |
| Injection pressure | Mpa | 203 | 177 | 143 |
| Screw pressure | rpm | 180 | ||
CLAMPING UNIT | ||||
| Clamping force | kN | 1600 | ||
| Open stroke | mm | 435 | ||
| Space between tie bars(W×H) | mm | 460×460 | ||
| Max.Mold height | mm | 520 | ||
| Min.Mold height | mm | 180 | ||
| Ejector stroke | mm | 135 | ||
| Ejector force | kN | 45 | ||
OTHERS | ||||
| Max.Pump pressure | MPa | 16 | ||
| Pump motor power | kW | 18.5 | ||
| Heating power | kW | 12.5 | ||
| Machine dimension(L×W×H) | m | 4.86×1.30×2.10 | ||
| Oiltank cubage | L | 300 | ||
| Machine weight | t | 6 | ||

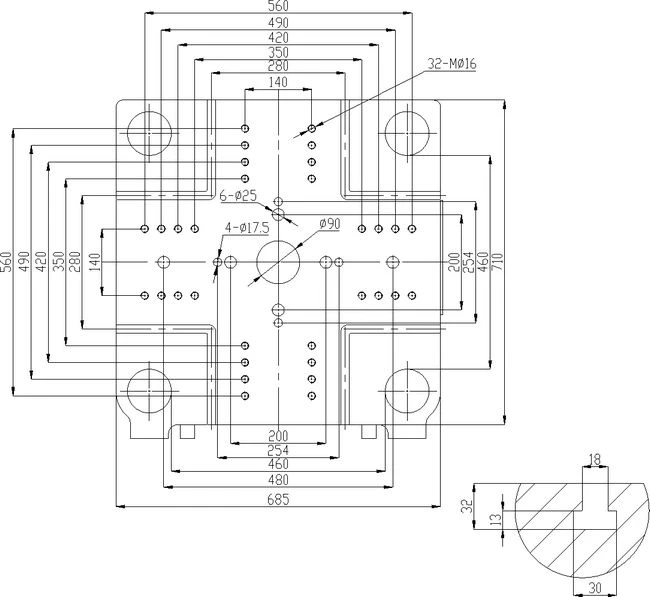

| PLATEN DIMENSIONS |  |

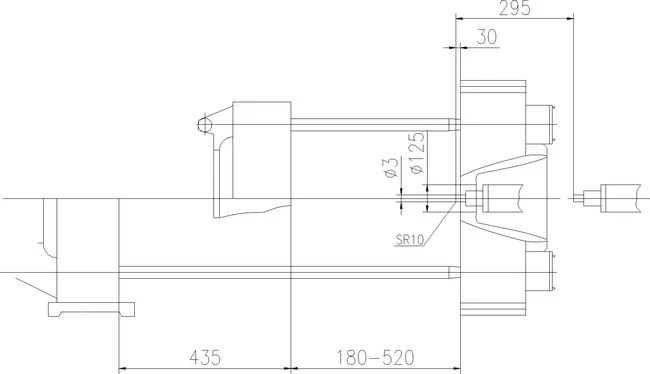

| MOULD SPACE DIMENSOINS |  |

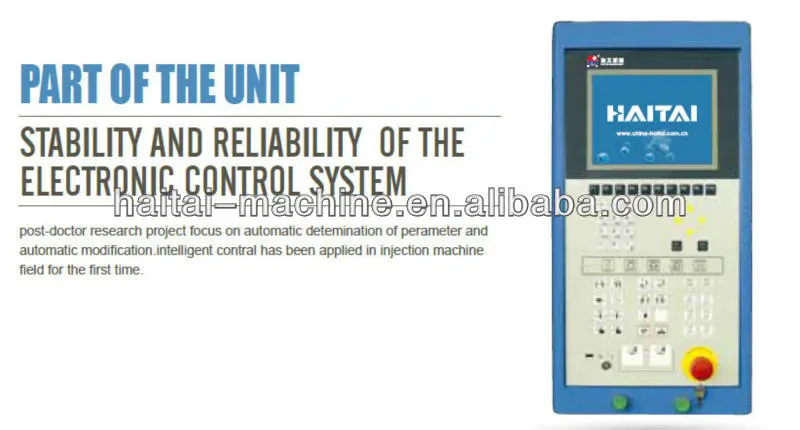

4.CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- To provide EUROMAP robot interface.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.

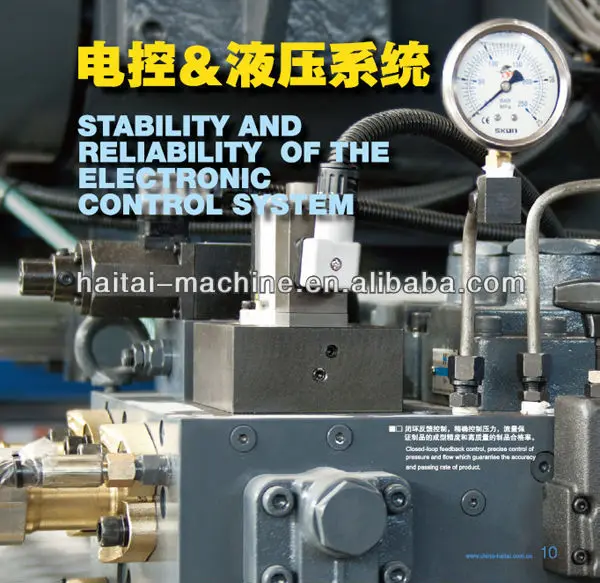

HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves
rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and
reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way
cartridge inserted valve system to improve the system of flow and speed of response, and makes
the whole machine reach the best performance.
INJECTION SYSTEM
2005, diversified screw optimal design municipal science and technology research projects focus
on key issues is completed, and is now designed professionally and production for a whole variety
of raw material. the diversity of the screw is for your option
- A PID temperature control, precise temperature control of barrel.

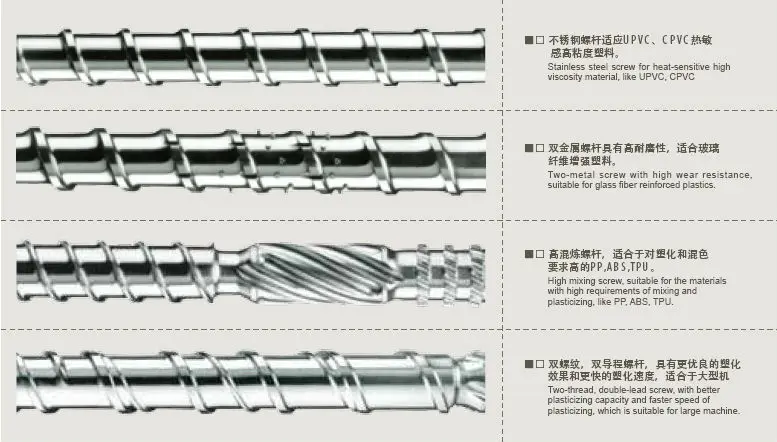

- There are three or four screws and barrels with optimal design, respectively, nitride, hard plating,
dual-metal, which is suitable for different processes of a variety of plastics. and the
choice of product.
- Two-guided guided bar supports, double-balanced rapid injection.
- The high-torque hydraulic motors offer a stable plasticizing capacity, highprecision
electronic device position detection enable accurate measurement.
- Multi-injection speed and pressure and multi-level holding pressure settings, switch from the
injection time, location, pressure control to ensure the quality of molding.
- Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled,
anti- drooling and automated auto purge.
- Expected to prevent cold-start function to ensure that the screw, Liao Tong will
not be harmed. Stability of the injection unit.
- Security doors fitted with hydraulic, mechanical and electrical interlocking triple
safety device. When the safety door is open, the machine cannot clamp.
- Low pressure mold protection device to prevent damage to platen.
- Plywood, frame, the bridge, and the template attached structure, the finite element analysis.
- Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions.
- Flexible tie bars nut eliminates fatigue fracture; assure the working life of tie bars
- Automatic adjustment. The replacement of different mold, the parameters set by clamping force
to achieve the automatic adjustment.
- High-precision electronic detection device, multi-stage control of opening stoke,
speed and location, location accuracy.
-
