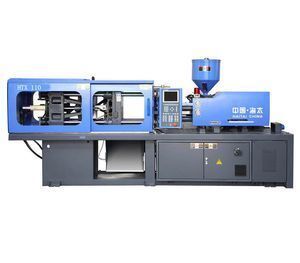

HTW110 HAITAI mini injection molding machine /plastic cap making machine

Supplier: Ningbo Haitai Industry And Trade Co., Ltd.
Region: Zhejiang, China
Contact: Mr Peijune Wang
Price: $15500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	HAITAI;	Place of Origin:	Zhejiang China;
After-sales Service Provided:	Engineers available to service machinery overseas;	Injection Weight:	148g;
Power(W):	13kw;	Plastic Type:	Thermoplastic;
Distance between Tie Bars(Width)(mm):	410 mm;	Supply Ability:	2500 Set/Sets per Year;
Port:	NINGBO;	Distance between Tie Bars(Height)(mm):	410 mm;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Food & Beverage Factory,Printing Shops;	Oiltank Cubage:	230L;
Opening Stroke:	350mm;	Distance between Tie Bars:	410*410;
Open Stroke(mm):	350 mm;	Local Service Location:	Egypt,Indonesia,Mexico,Russia,Spain,Bangladesh;
After Warranty Service:	Video technical support,Online support;	Showroom Location:	Egypt,Mexico,Bangladesh;
Plastic Processed:	PP,ABS,PPR,HDPE,EPS,PA,PE,HDPE/PP,ABS/PP,PE/PP;	Clamping Force (kN):	1100 kN;
Payment Terms:	L/C,D/A,D/P,T/T;	After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Online support;
Automatic:	Yes;	Type:	Plastic injection moulding machine;
Theoretical Shot Volume(cm³):	163 cm³;	Weight (KG):	3400;
Ejector Stroke(mm):	350 mm;	Model Number:	HTW110;
Condition:	New;	Screw diameter (mm):	35 mm;
Packaging Detail:	Plastic injection moulding machine packed in Wooden pallet;	Type:	Injection molding;
Key Selling Points:	Automatic;	Style:	Horizontal;
Injection Rate (g/s):	105 g/s;	Certification:	CE,TUV;
Injection Rate:	89g/s;	Warranty:	1 year;
Machine Type:	Hydraulic;	Injection Weight (g):	175 g;
Power (kW):	13 kW;	Ejector Force(kN):	38 kN;

HAITAI

plastic injection moulding machine
1.Precision,
2.Fast,
3.Energy saving,
4.Stable and super long life plastic machine

Haitai HTW serise injection molding machine ranges from 68T-3000T, aiming at processing high quality plastic products, because of its high-performance, Haitai machine is widely used among domestic and foreign customers. With the pursuit of independent innovation constantly, Haitai now processes a total of 33 independent intellectual property rights, three of which are invention patents with high technology content. The use of advanced computer software designed to optimize the parameters of the most optimal design. And the application of automatic sampling system is used to test performance parameters of the new product. Haitai HTL-series injection molding machines has smaller deformation of the platen,smoother movement, longer working life, lower energy consumption, easily operation, so it has been recognized by the market. Haitai HTW-series injection molding machine is a strong open platform, which can meet the customer's special request, like adding special features so as to suit all kinds of process techniques.

1. Main Products:

A. Servo energy-saving injection molding machine. (HTW-JD)

B. PET Injection molding machine. For bottle perform. ( HTW-PET)

C. UPVC/PVC Injection molding machine. ( HTW-UPVC/PVC)

D. FAST Injection molding machine. ( HTW-F)

E. Variable Pump Injection molding machine. ( HTW-JC)

F. Two Color Injection molding machine.

2. Advantage:
Strong Technical design ability, Stable quality, and large production capability, Famous brand.

3. Production description:

CONTROL SYSTEM

All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

FEATURES

- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- To provide EUROMAP robot interface.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.

HYDRAULIC SYSTEM

Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.

INJECTION SYSTEM

2005, diversified screw optimal design municipal science and technology research projects focus on key issues is completed, and is now designed professionally and production for a whole variety of raw material. the diversity of the screw is for your option.

FEATURES

- There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual-metal, which is suitable for different processes of a variety of plastics. and the choice of product.

- Two-guided guided bar supports, double-balanced rapid injection.

- The high-torque hydraulic motors offer a stable plasticizing capacity, highprecision electronic device position detection enable accurate measurement.

- Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.

- Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti- drooling and automated auto purge.

- Expected to prevent cold-start function to ensure that the screw, Liao Tong will not be harmed. Stability of the injection unit.

- Security doors fitted with hydraulic, mechanical and electrical interlocking triple safety device. When the safety door is open, the machine cannot clamp.

- Low pressure mold protection device to prevent damage to platen.

- Plywood, frame, the bridge, and the template attached structure, the finite element analysis.

- Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions.

- Flexible tie bars nut eliminates fatigue fracture; assure the working life of tie bars

- Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment.

- High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location accuracy.

TECHNICAL PARAMETERS for small plastic machine

SPECIFICATION		HTW110
		A	B	C	D
INJECTION UNIT
Screw diameter	mm	32	35	38	42
Screw L/D ratio	L/D	24.1	22	20.2	18.4
Shot volume(theoretical)	cm3	137	163	192	235
Injiection weight(ps)	g	125	148	175	213
Injection rate	g/s	74	89	105	128.1
Injection pressure	Mpa	260	219	186	152
Screw pressure	rpm	210
CLAMPING UNIT
Clamping force	kN	1100
Open stroke	mm	350
Space between tie bars(W×H)	mm	410×410
Max.Mold height	mm	380
Min.Mold height	mm	150
Ejector stroke	mm	100
Ejector force	kN	38
OTHERS
Max.Pump pressure	MPa	16
Pump motor power	kW	13
Heating power	kW	8.2
Machine dimension(L×W×H)	m	4.15×1.12×190
Oiltank cubage	L	230
Machine weight	t	3.4
