Rubber and Plastic Machinery Two Roll Mill

Supplier: Dongguan Zhongli Instrument Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Cathy Lin
Price: $3200.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Free spare parts,Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support;	Temperature:	room temperature ~ 300 ℃;
Voltage:	380V;	Certification:	CE/ISO;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Construction works ,Rubber And Plastic Industry;	Volume:	9605501150 (W* D* H) mm;
Supply Ability:	150 Set/Sets per Month rolling mill machine Rubber & Plastic Machinery in stock;	Warm-up time:	room temperature ~ 150 ℃ about 20min;
Port:	shenzhen;	model:	Rubber & Plastic Machinery Two Roll Mill;
Power source:	AC380V, 15A;	Temperature accuracy:	± 3 ℃;
Warranty:	2 years;	Power(W):	2800W;
Packaging Detail:	Rubber & Plastic Machinery Two Roll Mill is packed in a polybag, then packed as export safety wooden case;	Key Selling Points:	Competitive Price;
Year:	custom;	Weight:	380kg;
Dimension(LWH):	9605501150 mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Rubber & Plastic Machinery suitable any payment way;
Condition:	New;	Place of Origin:	Guangdong China;
Brand Name:	ZL;	Drum revolutions ratio:	Standard revolutions ratio 1:1.25;
Mixed capacity:	0.5-1kgs / 2-3kgs / 5-7 kgs;	Roller dimensions:	diameter 3.9 "* L13.7";
Roller hardness:	HRC 50 ~ 60;

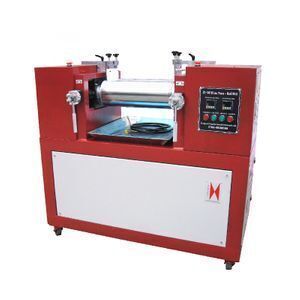

Rubber & Plastic Machinery Two Roll Mill

Product Description

Introduction:

Two roll mixing machine are engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory

Application:

Plastic open two roll mixing mill. It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.

Feature:

1. Construction of mill rolls: drilled roll, bored roll, grooved roll

2. We can design speed ratio as per customers' formula and processing requirements.

3. Frame, frame cap and base are welded and treated by annealing for stress relieving.

4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.

5 Brake and emergency stop device can ensure the safety of personnel and equipment.

6 Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.

7 Human nature designed controlling system ensure labor safety.

8. . Methods of adjusting roll nip: manual or electric

Intelligent control panel and PLC control system:

1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.

2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.

3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.

4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.

Technical parameters:

Model		ZL-3018-76	ZL-3018-120	Zl-3018-160	ZL-3018-200	Zl-3018-230	Zl-3018-300	ZL-3018-400
Diameter of roll	mm	76	120	160	200	230	300	400
Length of roller face	mm	300	350	350	500	650	650	900
Mixing Capacity	kg	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed	rpm	19	19	19	19	19	19	19
Friction ratio		1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range	mm	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power	KW	1	1.5	2.2	7.5	11	30	37
Heating Mode	Electricity heating , Oil Heating ( option)
Cooling Mode	Water Cooling ( option)
Roll Temperature	Room temperature -- 300℃
Roll Hardness	HRC 50 ~ 60
Temperature Accuracy	± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Safety device	It have 6 safety buttons and safety guard is option
Machine weight	kg	160	460	660	860	1960	2960	3800
Overall dimension	mm	1100x400x1180	1100x550x1380	1200x650x1380	2200x750x1380	2200x950x1580	2600x950x1580	5295x1789 x170
Power	380V 3 phase 50-60hz

Related products

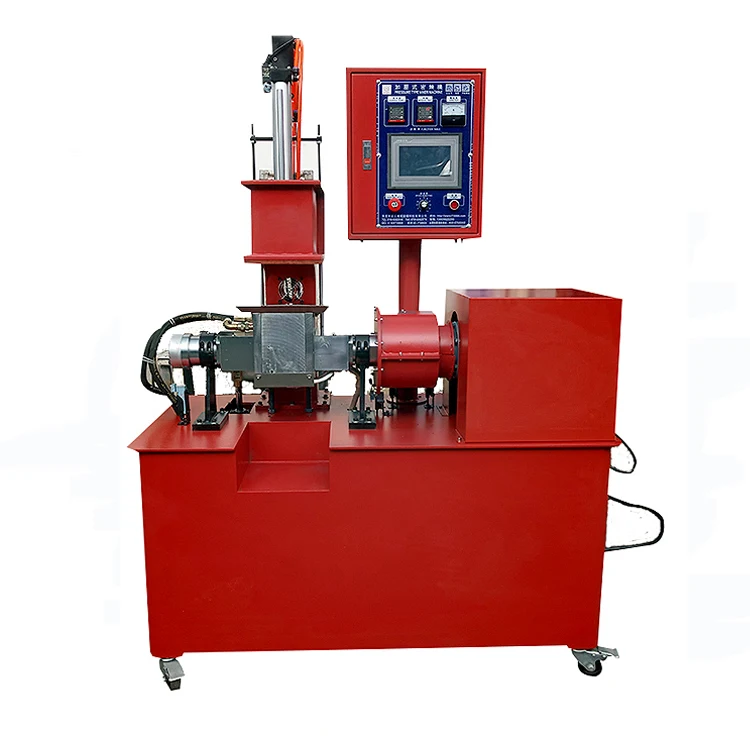

We can produce all kinds of rubber test machines:

Our Services

Honesty+Professional+Dedication=Value

Honesty-Credibility is the soul of the company, operating in good faith to promote enterprise development.

Professional-Professional service process, professional quality services.

Dedication-Will spare no effort to serve for Customer.

Value -Take the customer demand as the guidance, provide super value service.

Packaging & Shipping

Factory details

Our customers

FAQ

1. What's the warranty statement?
Zhongli warrants all the products manufactured by Zhongli to free from defects in material and workmanship
under normal use of a period of 12 months or 36months after the date of the original purchase price if repair
or replacement is not possible of practical, Zhongli warranty covers ONLY the product itself.
Zhongli will assume no liability for labor costs, installation costs, or other losses. Your warranty rights will be honored
only when the product has been installed and used properly as deemed by Zhongli, Zhongli will not repair products
damaged by improper use or faulty installation.

2. What's the return policy?
All order shipments leave our factory complete and in working order, customer must report and damage within 7days of
receipt of order by sending digital photographs(.JPG) of damaged items. Customer must retain damaged merchandise,
package and shipping containers until claim had been settled. Damage in transit is the sole responsibility of the carrier,
and any claim beyond this 7days period will not be deemed valid by ZhongLi .

3. How about in case of breakage?
Zhongli will accept returns for a refund within 30days of the shipment of your order. Please note exceptions bellow:
Returns must be first acknowledged by ZhongLi PRIOR to return, Please contact the related salesman in charge.
All packages sent to Zhongli MUST have the initial sales invoice number issued and printed clearly on the outsite of
package, A lack thereof will result in the item being immediately restocked and no credit or refund will be issued.
All returns must be made in their original packaging with sufficient packing material. Modified or installed items will not
be accepted for return.

4. How about the after-sales service?
24 hours around the clock & 12 months warranty, if need our engineers can provide door-to-door service
Life-long maintenance service for the product

Thanks for your support to Zhongli !
