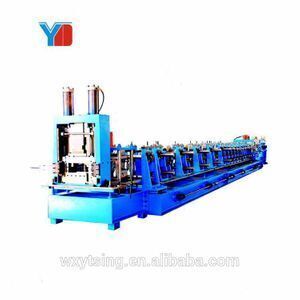

Latest CZ Purlin Steel Profiled Interchangeable Roll Forming Machine

Supplier: Wuxi Yuanding Science And Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms Daisy Liu
Price: $45000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year;	Production Capacity:	15-20m/min;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Working Stations:	20 working stations;
Cutting System:	Hydraulic(80mm oil cylinder);	Certification:	SGS/CE;
Control system:	PLC(Siemens Controller);	Package Type:	NAKE PACKAGE, 1X40 gp container;
Single gross weight:	10,500 KG;	Roller Material:	GCr 15, double machining;
Weight:	9500KG;	Type:	Steel Frame & Purlin Machine;
Chrome:	0.03mm hard chrome;	After-sales Service Provided:	Engineers available to service machinery overseas;
Brand Name:	YTSING;	Condition:	New;
Place of Origin:	China(Mainland);	Power(W):	21.5KW;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Cutter Material:	Cr12, MOV, HRC 58-62;
Product name:	CZ Purlin Interchangeable Roll Forming Machine;	Single package size:	950X150X140 cm;
Shaft Diameter:	76mm;	Dimension(LWH):	9.51.51.4M;
Selling Units:	Single item;	Work Pressure:	16Mpa;
Voltage:	380V;	Structure:	Column;

Product Description

HIGH DUTY STRUCTURE

The sturcture we use for this machine has the higher duty mechanical behavior.

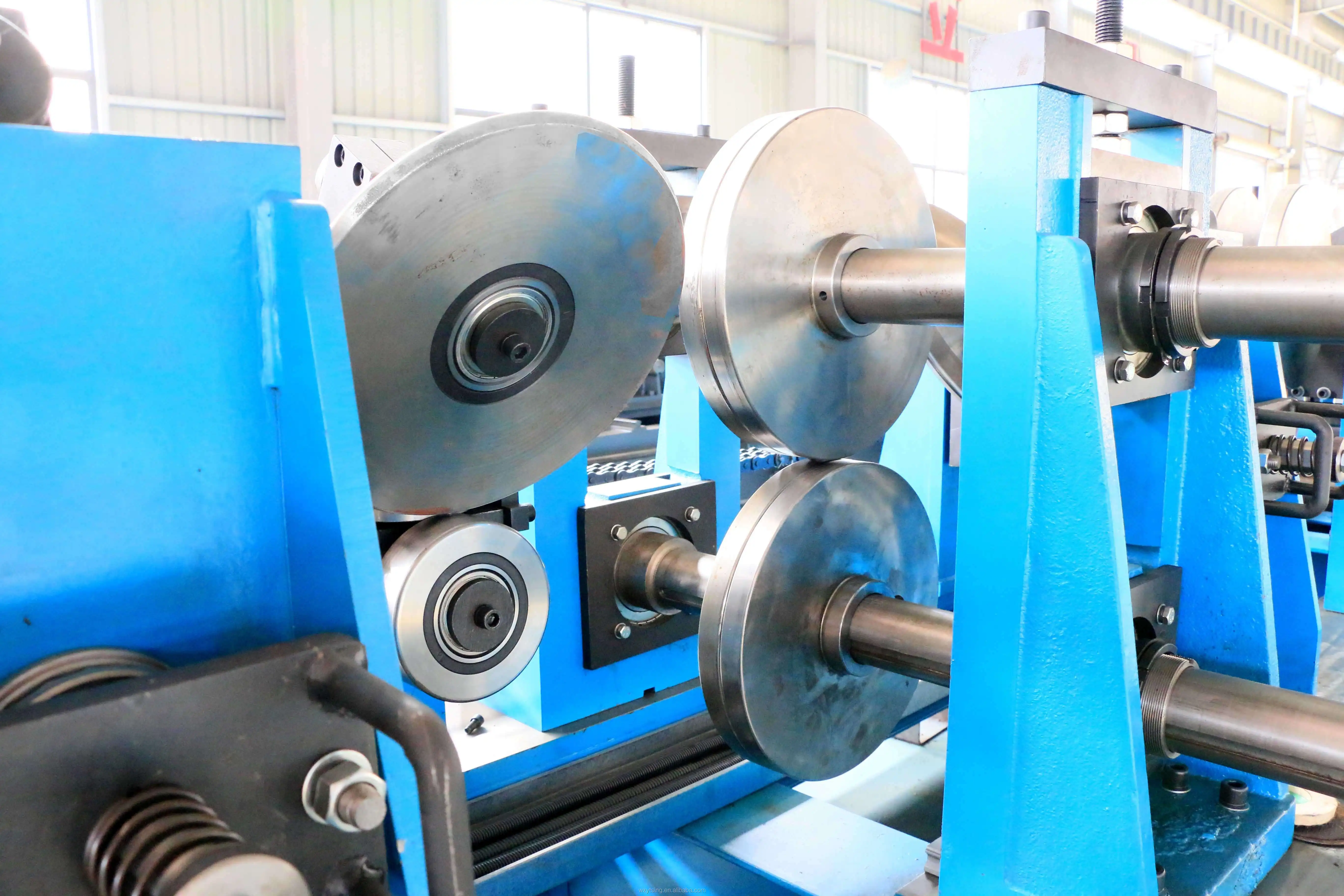

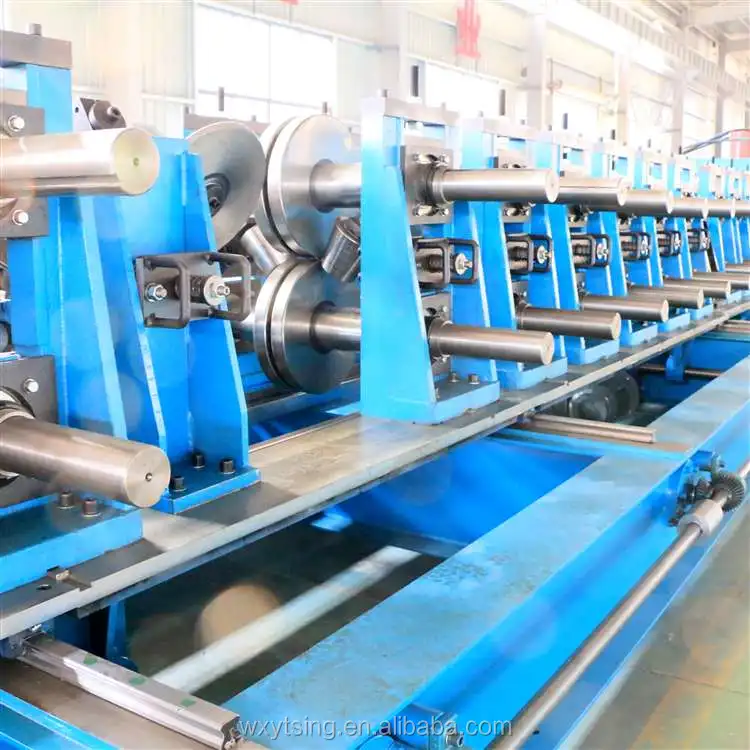

ROLLERS

The rollers processing by twice CNC machining and quenched, HRC 58-62;

AUTOMATIC ADJUST

Design as flexiable width change from 80-300mm as standard;

We can do max size at 120*350mm;

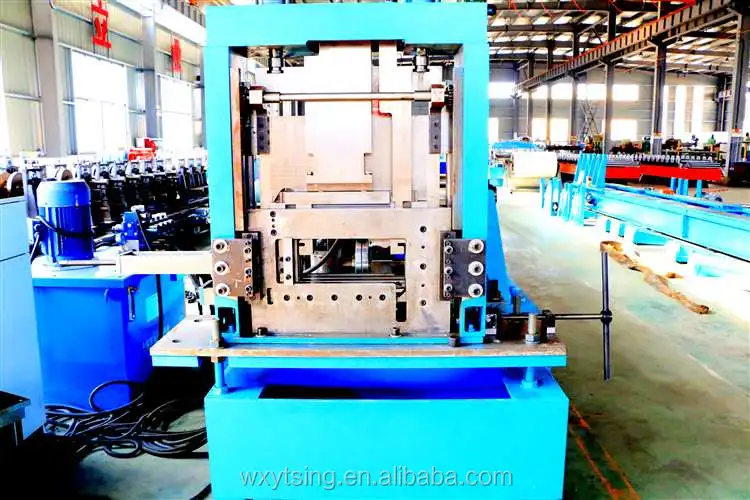

UNIVERSAL CUTTING

Cutting size flexiable;

Cr12, MOV cutting material;

Resharp every 20000-30000 times cutting as maintaince

FAMOUS BRAND PLC

1. PLC controller -- Siemens

2. Transducer -- Yaskawa

3. Encoder -- KOYO

4. Other electronic component- Schneider

More details please contact us to get quotation. We will make the professional technical offer according to your requirement.

Our Advantage

More than 10 year working life

Our machine can steady running at least 10 years.

Based on this situation, you could have stable productivity and avoid from fixing.

More individal service

If you have requrest of your using problem, like running space, operation program language. We can do better.

Better after-sale service

Life long response within 12 hours , while you have question of running machine,

Quality Comparison

shaft material in our factory - YTSING

We never use a piece of hollow shaft in the manufacture production history

hollow shaft - poor quality competitor

Hollow shaft to make the material costing much less and the machine force durable less

the roller made by fresh material - YTSING

The roller material is from one piece of whole fresh material, which the rollers is strong on force durable

the roller made by scrap material - poor quality competitor

The less costing machine, rollers always made from second treatment scrap material

good connection on frame - YTSING

We try to make every details better on the machine design and produce according to exactly

lousy connection with welding - poor quality competitor

The machine produce not based on the design diagram, and it needs cut holes on frame to fit sometimes

more YTSING roll forming machine quality

1. YTSING to control the machine processing precision in every details, including the milling level standard, shaft diameter precision and roller & loops processing. To make sure the machine performance better on working;

2. To choose the good control system which is easy to operate, and sensitive on start & stop to make sure the accuracy;

3. YTSING roll forming machine could running more than 10 years and poor quality competitor machine can running only 1-2 years

example: a steel stud roll forming machine working for customer in Phillippine, non-stop cutting system working 7*24 hours from 2014 till now.

Packing&Delivery

FAQ

1. Are you manufacturer or trading company?

We are manufacturer for 15 years

2. What is the delivery time?

For standard machine, delivery time is usually 60-70 working days.

3. What is your payment term?

30% TT deposit paid in advance, 70% balance paid before shipping.

4. How can I evaluate your company.

1-Please contact our sale service to answer all of the questions you have. By video chat you could check our workshop. And we are welcome you visit our factory for inspection anytime.

2-We have CE certificate, and our factory has been inspected by TÜV , SGS, and Bureau Veritas. Please contact us to get the certificate document if you need.

5. How can I get to your factory.

We could pick you up in airport or high speed rail station. The nearest airport is NANJING international airport, and the nearest station is DANYANG station. The cities nearby also have driver to pick you up, please contact us.
