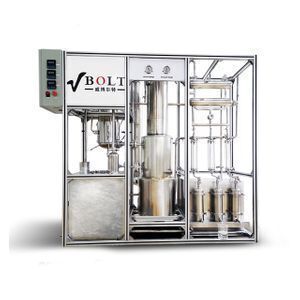

Demo Mini Capacity Waste Oil And Pyrolysis Oil To Diesel Continuous Distillation Machine

Supplier: Chongqing Vbolt Machinery Manufacturing Co., Ltd.
Region: Chongqing, China
Contact: Ms Bonnie Lei
Price: $17300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Flow:	5 liters;	Voltage:	110~415V;
Applicable Industries:	Manufacturing Plant,Farms,Construction works ,Energy & Mining,used oil recycling;	Working temperature:	-10~460 Degree;
Weight:	480KG;	Color of final product:	Water color diesel;
After-sales Service Provided:	Field installation, commissioning and training;	Supply Ability:	20 Set/Sets per Year;
End product:	85-93% Diesel;	Fuel Supply:	Diesel/ Gasoil/Kerosenem/ Heavy fuel oil/Used lube oil etc.;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Place of Origin:	Chongqing China;
Port:	Chongqing/Shanghai/Shenzhen/Guangzhou;	Packaging Detail:	Wooden case,suitable for long distance ocean freight transportation as well as changing climate and with good resistance to moisture and shocks;
Warranty:	1 year;	Noise:	Less than 60dB;
Condition:	New;	Power(W):	5KW;
Heating method:	Indirect Heating with Burner;	Certification:	CE ISO SGS;
Raw material:	Boiler steel/Carbon Steel/Stainless steel;	Dimension(LWH):	2000mm1000mm1800mm;
Showroom Location:	Indonesia,Thailand,Malaysia;	Brand Name:	VBOLT;
Local Service Location:	Indonesia,India,Thailand,Malaysia,Bangladesh;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Warranty:	1 year;	Title:	waste oil distillation machine;
Function:	recycling used oil to diesel or base oil recycling plant;

Demo Mini Capacity Waste Oil And Pyrolysis Oil To Diesel Continuous Distillation Machine

Product Description

Vbolt oil distillation machine is suitable for all kinds of used oil (such as used engine oil, waste motor oil,waste industrial oil , heavy fuel oil , oil sludge etc.), pyrolysis oil (such as tire pyrolysis oil, plastic pyrolysis oil etc. ) recycling to light and heavy diesel oil or base oil. It adopts high speed centrifuge to separate water content from black oil material, and then adopts thin film evaporator to get ride of light components like gasoline, kerosene and so on. Then use advanced membrane distillation system to improve oil gasification. Oil gas will finish catalytic reaction to produce diesel in the distillation column. Higher speed distillation and catalytic reaction combining with large area condensers, the indices of produced oil is very good which could be used for engines directly. Vbolt also supplies exclusive refining system to improve the quality of diesel or base oil product from distillation machine. After refining, the quality of diesel or base oil is with good stability performance and bright color like water and no any bad smell.

(VBOLT supply 1 ton/day to 50 tons/day oil distillation machine, also supply demo machine with mini capacity. Data reference is 10 tons/day oil recycling machine.)

Reference for 10 tons/day oil recycling plant

ITEM	VBT-DD-V
Working capacity	500l/h
Fuel output range	3*10^5Kcal/h
Fuel consume	9.0-30kg/h
Fuel supply	Light diesel fuels/Kerosenen/Heavy fuel oil/Environmental oil/Waste lube oil for burning(Molten salt furnace available)
Vacuum degree	Normal Pressure for diesel and vacuum distillation for base oil
Oil Heat Temp.	-10℃-460℃
Voltage supply	380V/50HZ, 3 phase (customized according to local power supply is available)
Dimension	145.57M
Gross weight	18T
Power	8.5KW
Machine Supply	We supply 100Liter/hour ~ 2500Liters/hour oil recycling machine; for other equipment, please send inquiry.
