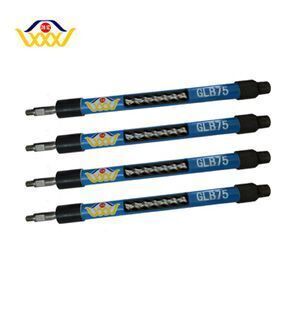

PCP Progressive Cavity Pump GLB75-14

Supplier: Weifang Baofeng Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Monica Nie
Price: $2650.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	T/T,Western Union;	Model Number:	GLB75-14;
Packaging Detail:	plywood box;	Product name:	PCP GLB75-14;
Type:	PCP Progressive Cavity Pump;	Port:	Qingdao,Ningbo,Shanghai,Guangzhou,Tianjin;
Stator material:	buna-N;	Supply Ability:	300 Piece/Pieces per Month;
Rotor:	45# steel;

Product Description

PC Pump System Brief Introduction
PC pupmp system consists of Surface Drive Device, Downhole screw pump, Electrical Control Panel and Matching Tools.
Screw pump has been widely used in oil fields at home and abroad and plays an important role in oil production. There is a trend to replace the large heavy pumping units in shallow well and middle-deep well.

Applicable Oil Condition
The screw pump can be used for low viscosity crude oil, also for heavy oil, high freezing point oil, high wax oil, high sand oil and high gas oil. It has advantages of one-time low investment, high oil production efficiency, low energy consumption, simple structure, and easy operation, installation, and maintenance.

Advantages:
For the use of PC pump, we have four driving head device for option, Belt Gear Reduction Transmission (horizontal), Gearless Transmission (vertical), Direct Drive Motor Gearing and Eccentric Test Gearing. According to the promotion recent years, it is a trend that the PC pump will replace the large heavy beam-pumping unit in shallow well and middle-deep well. It has advantage of one-time low investment, high oil production efficiency, low energy consumption, simple structure, and easy operation, installation, and maintenance. Along with the improvement of application technology and oil production equipment, PC Pump will be widely used in future.

PC Pump Setting Parameters

Setting depth(m)	500	600	700	800	900	1000	1100	1200
Lifting distance (mm)	550	650	750	850	950	1100	1200	1300

Model	Length mm	Maxi. Dia. mm	Rotor screw in	Stator upper screw in	Stator lower screw in	Rod rate rpm	Theoretical dairy flow m3/d	Applicable tubing in	Head m
GLB\10/35	2940	90	15/16″	2-7/8″	2-7/8″	60-150	1-4	≥73	1000-1400
GLB\28/40	3650	90	1-3/16″	2-7/8″	2-7/8″	60-150	3-6	≥73	1200-1600
GLB\40/12	1550	90	1-3/16″	2-7/8″	2-7/8″	60-150	4-9	≥73	600-800
GLB\40/14	2200	90	1-3/16″	2-7/8″	2-7/8″	60-150	4-9	≥73	400-600
GLB\40/21	2330	90	1-3/16″	2-7/8″	2-7/8″	60-150	4-9	≥73	700-1000
GLB\40/42	4670	90	1-3/16″	2-7/8″	2-7/8″	60-150	4-9	≥73	1200-1800
GLB\50/21	2380	90	1-3/16″	2-7/8″	2-7/8″	60-150	5-10	≥73	700-1000
GLB\75/14	2140	90	1-3/8″	3-1/2″	2-7/8″	60-150	6-15	≥73	400-600
GLB\75/21	2200	108	1-3/8″	3-1/2″	2-7/8″	60-150	6-15	≥73	700-1000
GLB\75/40	4410	108	1-3/8″	3-1/2″	2-7/8″	60-150	6-15	≥73	1200-1600
GLB\120/18	3000	108	1-3/8″	3-1/2″	2-7/8″	60-150	10-25	≥73	500-800
GLB\120/21	2932	108	1-3/8″	3-1/2″	2-7/8″	60-150	10-25	≥73	700-1000
GLB\120/27	4428	108	1-3/8″	3-1/2″	2-7/8″	60-150	10-25	≥73	800-1000
GLB\120/36	5865	108	1-3/8″	3-1/2″	2-7/8″	60-150	10-25	≥73	1100-1400
GLB\120/40	5900	108	1-3/8″	3-1/2″	2-7/8″	60-150	10-25	≥73	1200-1600
GLB\165/35	5650	114	1-3/8″	3-1/2″	2-7/8″	60-150	14-36	≥73	900-1300
GLB\190/33	5650	117	1-3/8″	3-1/2″	2-7/8″	60-150	15-40	≥73	900-1300
GLB\200/27	5650	114	1-3/8″	3-1/2″	2-7/8″	60-150	17-42	≥73	800-1000
GLB\300/21	4850	114	1-3/8″	3-1/2″	2-7/8″	60-150	25-60	≥73	700-1000
GLB\300/26	6000	114	1-3/8″	3-1/2″	2-7/8″	60-150	25-60	≥88.9	700-1000
GLB\300/33	6200	117	1-3/8″	3-1/2″	2-7/8″	60-150	25-60	≥88.9	800-1200
GLB\420/20	4820	117	1-3/8″	3-1/2″	2-7/8″	60-150	35-70	≥88.9	700-1000
GLB\500/14	3380	117	1-3/8″	3-1/2″	2-7/8″	60-150	40-80	≥88.9	600-800
GLB\500/21	5060	117	1-3/8″	3-1/2″	2-7/8″	60-150	40-80	≥88.9	700-1000
GLB\600/18	7122	117	1-3/8″	3-1/2″	2-7/8″	60-150	85-130	≥88.9	500-900
GLB\230/2-30	6200	117	1-3/8″	3-1/2″	2-7/8″	60-150	20-50	≥88.9	900-1200

Custom sized and configurations also available

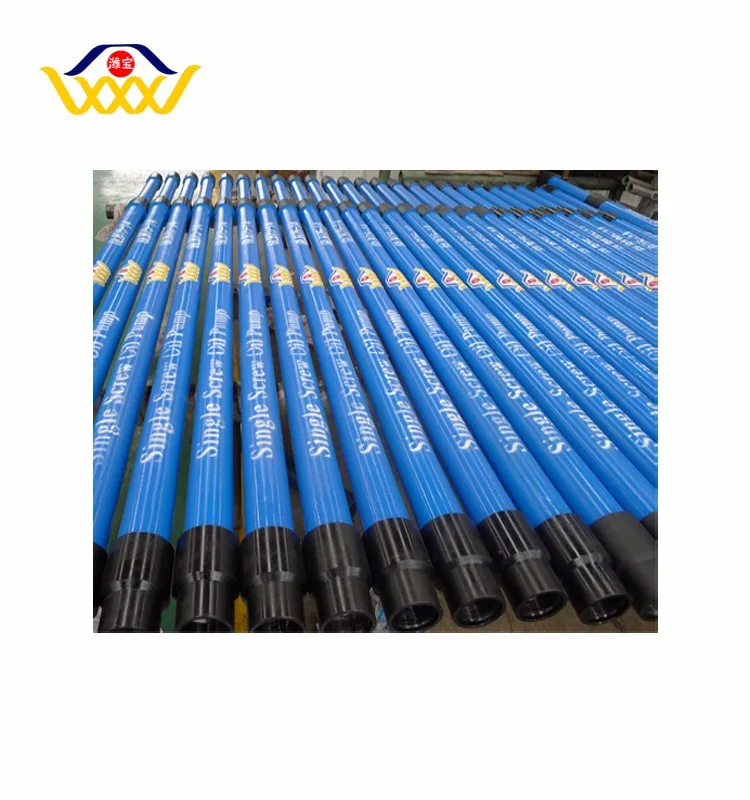

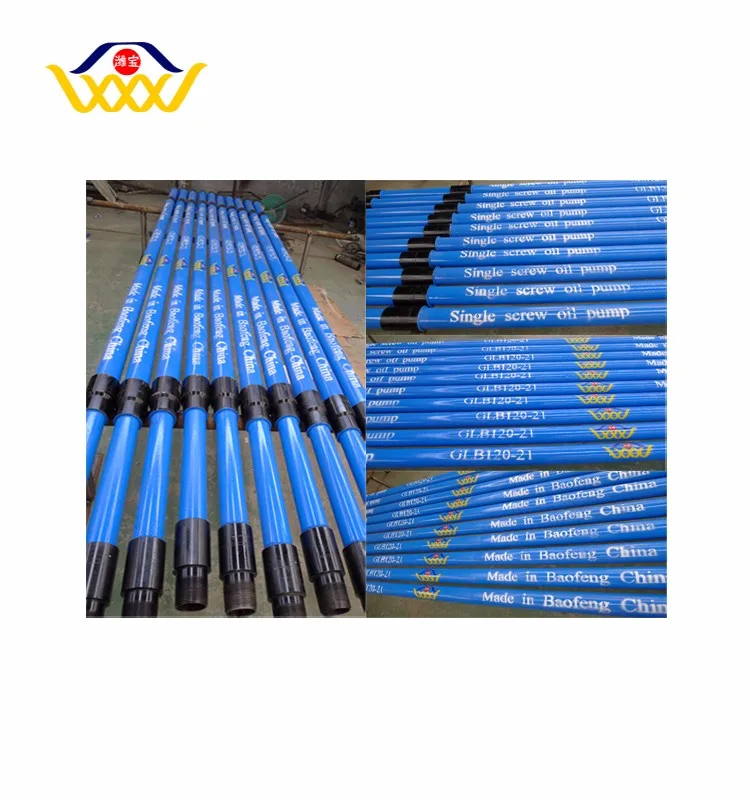

Detailed Images

Packing

Related Products

Our Company

Weifang Baofeng Machinery Co., Ltd. was founded in September, 2006 with registered capital of one hundred and two million. It is a newly-developing private enterprise, producing and selling machinery and it integrates a variety of machinery such as petroleum machinery, agricultural machinery and mining machinery. It is Provincial Safety Production Unit, Municipal Standardized Advanced Enterprise and Municipal Contract-Credit Enterprise.

Our company covers an area of 15000 square meters, office and production area occupies 5000 square meters. The company consists of one office and seven divisions: Technical research and development division, quality checking division, production division, purchasing division, marketing division, technical service division and financial division. Now there are 2 workshops and 30 service workers, including 3 managers, 2 engineering technicians and 5 marketing staff. The company owns over 80 sets of screw pump production equipment, four sets of screw pump and ground drive testing equipment. In 2008, the company passed ISO9001-2008 Quality System Certification, ISO14001: 2004 Environmental Management System Certification and OHSAS18001: 2007 Occupational Health and Safety Management System Certification.

Since foundation, our company is mainly engaged in development, production and marketing for screw pump oil production system. With complete processing equipment, scientific management system, and strong technical force and advanced technology, the company has formed and produced more than 50 kinds of screw pumps: From GLB20 to GLB3000, from conventional screw pump to high temperature screw pump, form single head screw pump to multi-head screw pump, from conventional screw pump to equal thickness screw pump, from ground drive screw pump to down-hole drive screw pump, from oil production screw pump to CBM special screw pump. They have been promoted and applied in Shengli Oilfield, Daqing Oilfield, Huabei Oilfield, Jilin Oilfield, Dagang Oilfield, Henan Oilfield, Xinjiang Oilfield, Inner Mongolia Oilfield, Kazakhstan Oilfield and Oman Oilfield, and gain praise from domestic and foreign users.
