Capacity(t/h): | 15 ~ 1300 T/H; | Customized: | Acceptable; |
Brand Name: | TECHANG; | Port: | Qingdao/Guangzhou/Shanghai; |
Payment Terms: | L/C,T/T,Western Union; | Motor speed: | 1450 r/m; |
Supply Ability: | 100 Set/Sets per Month; | Product name: | Small automatic mining raw rock vibrating feeder price; |
Warranty: | 12 Months; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Installation: | Standing / hanging type; | After-sales Service Provided: | Video technical support, Online support; |
Power Type: | Electric; | Certification: | ISO CE; |
Driven power: | Horizontal vibration motor; | Material: | Carbon Steel; |
Dimension(L*W*H): | According to model; | Application: | Mining Industry; |
Material size: | 120 ~ 800 mm; | Weight: | 110 ~ 3700 Kg; |
Packaging Detail: | Wooden case or pallet for Small automatic mining raw rock vibrating feeder price; | Function: | Feeding/conveying; |
Applicable Industries: | Food & Beverage Shops; | Condition: | New; |
Conveying length: | 0 ~ 9 Meter; | Place of Origin: | Henan China; |
Small automatic mining raw rock vibrating feeder price is used to feed lump, grain and powder material to receiving device from storage bin or hopper at a continuous and even flow during production.

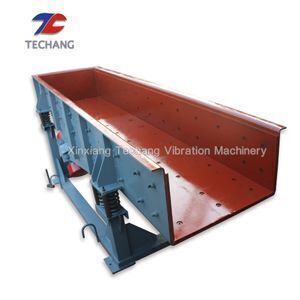

Standing type of Small automatic mining raw rock vibrating feeder price
Main fefatures and advantages of Small automatic mining raw rock vibrating feeder price
1. Easy adjustment, stable flow;
2. Low noise, low power consumption, good performance of regulator, no material clashing;
3. Reliable running, convenient adjustment and installation, light weight, samll voume, easy maintenance.
The detailed specifications of Small automatic mining raw rock vibrating feeder price are showed on the following table for you to refer.
Model | Capacity (t/h) | Size of feed trough (mm) | Operation mode | Weight (kg) |
GZG30-4 | 15 | 300*1000*160 | Continuous | 110 |
GZG40-4 | 30 | 400*1200*160 | 155 | |
GZG50-4 | 50 | 500*1200*160 | 190 | |
GZG60-4 | 80 | 600*1800*180 | 410 | |
GZG70-4 | 100 | 700*1800*200 | 440 | |
GZG80-4 | 200 | 800*2000*225 | 640 | |
GZG90-4 | 300 | 900*1500*300 | 730 | |
GZG110-4 | 400 | 1100*1500*400 | 900 | |
GZG130-4 | 500 | 1300*1500*400 | 1000 | |
GZG70-6 | 80 | 700*1800*200 | 440 | |
GZG80-6 | 160 | 800*2000*225 | 670 | |
GZG90-6 | 240 | 900*1500*300 | 740 | |
GZG110-6 | 320 | 1100*1500*300 | 940 | |
GZG130-6 | 500 | 1300*1500*400 | 1040 | |
GZG150-6 | 780 | 1500*1800*500 | 2000 | |
GZG180-6 | 1000 | 1800*1800*500 | 2590 | |
GZG200-6 | 1300 | 2000*2000*500 | 3700 |
Small automatic mining raw rock vibrating feeder price can be used to feed to belt conveyor, vibrating conveyor, bucket elevator, crusher, vibrating screen, pulverizer, etc., and for processes of automatic configuration and measurement, quantitative packing and automatic control, realizing automation of flow operation.
Xinxiang Techang Vibration Machinery Co.,Ltd is located in the north central city of Xinxiang Sizhuangding industrial park, adjacent to Beijing Guangzhou railway, 107 national highway, the transportation is convenient. Techang Vibration Machinery is a high-tech enterprise which is an integration of design, research & development, production and marketing, the main products are Vibrating sieve, conveying system, feeding machines (High quality soil electric motor vibration feeder, electromagnetic feeder), elevating machine (bucket elevator, vibration elevator), mixer, hybrid machine, mine fittings and other nine items of hundreds of products for you to choose, we can also base users' requirements to design and manufacture all kinds of our mechanical products.

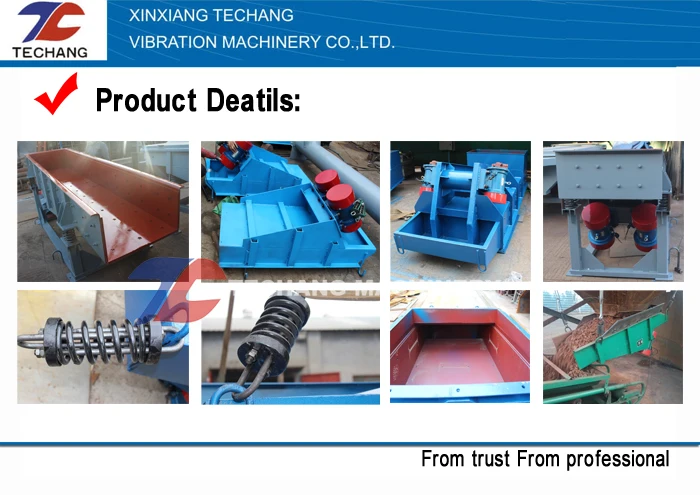

Product show
All our products are designed and manufactured by our professional workers, and in order to ensuring our equipment can work for you, they will be tested and inspected before leaving the factory.
Special design for our customers
We can produce the product of Small automatic mining raw rock vibrating feeder price with good price for our customers, under their different requirements.
Q: What information do you need to provide us to getting an accurate quotation for Small automatic mining raw rock vibrating feeder price?
A: 1. Material’s name, bulk density, and water content
2. Capacity you required___kg/h
3. Conveying length___meters
4. Voltage and frequency
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/ visa/ local accommodation/ local traffic is in charge of customer.
Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer, the customer only need to find special installation team to execute.
