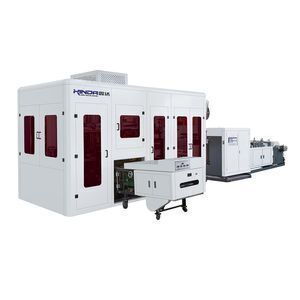

WFB-KT Fully Automatic Non-woven Handle Bag Making Machine

Supplier: Ruian Xinda Packing Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Daisy Pan
Price: $110000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	800024003000mm;	Type:	handle bag, box bag, laminated bag;
After-sales Service Provided:	Engineers available to service machinery overseas;	Model Number:	WFB-KT;
Bag Type:	Soft Loop Handle Bag;	Speed:	30-40 pcs/min;
Place of Origin:	Zhejiang China;	Warranty:	One Year;
Port:	NINGBO;	Payment Terms:	L/C,T/T;
Color:	grey and white;	Material:	Non Woven Bag;
Power(W):	28kw;	Delivery Detail:	Shipped in 30 days after payment;
Condition:	New;	Brand Name:	XINDA;
Machine Type:	Bag Forming Machine;	Application:	don't need turn;
Packaging Detail:	plastic film and wooden foot packing;	Voltage:	220V/380V;
Supply Ability:	10 Set/Sets per Month;	Computerized:	Yes;
Certification:	CE ISO;	Weight:	6000kg;

Main Introductions

This machine is the newest full-automatic non-woven bag making machine. It use environmentally-friendly non-woven fabric as raw material, combined with optical electrical and ultrasonic bonding technology and the computer PLC control. At one-time finish on hand, slice, stereo into cylinder, compaction molding. It's really solves the problem of non-woven handmade box bag high cost and slow efficiency. The finished bag compared to common bag are more beautiful and stronger. It widely used in clothing, footwear, drinks and gift packaging bag production. That can save more manual, higher efficiency, creating higher value for customers, allowing you to remain the leading in market competition.

Main Technical Parameters

Model	WFB-KT
Size of Bag(LWH)	250100200mm--400160400mm
Material Thickness	80-130g
Max.Length of Handle loop	60mm
Production Speed	30-40pcs/min
Voltage	220v/380v
Total Power	28kw
Machine Weight	6.0t
Overall Demensions(LWH)	800024003000mm

Main Configuration

1) DC Motor
2) Thermometer
3) Electric Switch
4) Computer control system
5) Automatic tracking whole process
6) Use a dial indicator to locate the mould
7) Automatic load
8) Automatic tension
9) Handle loop corrector
10) Automatic neaten bag

What is the different with other bag making machine?

It has the newest technology. In general case, non woven box bag made by machine need to turn around. But this machine made new non woven bag don’t need turn. It is one time finished with automatic folding part. It looks like more beautiful and efficient.

Whole Production Line

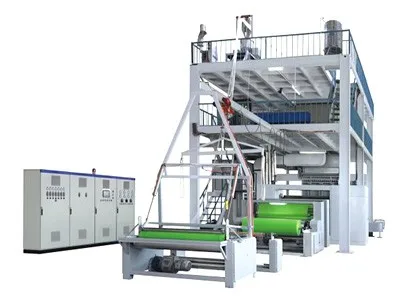

1. Non-woven fabric production line
