Keyland manufacturer broken Solar Cell Silicon Wafer Laser Cutter Machine with Vacuum Table

Product details

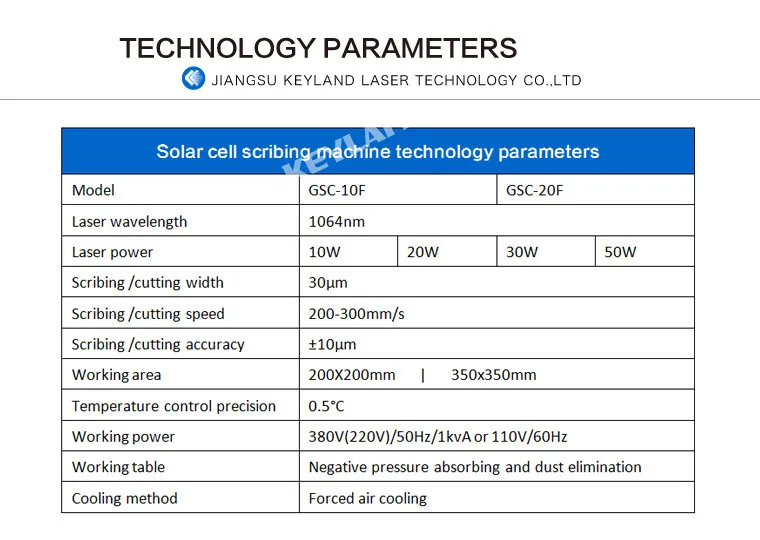

Applicable Material:Solar cell or Wafer;Control System Brand:Keyland laser;
Scribing speed:120-300mm/s;Package Preview:https://sc01.alicdn.com/kf/HTB1sGQhMhTpK1RjSZFKq6y2wXXak.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1P3QeMhTpK1RjSZR0q6zEwXXa9.jpg_640x640.jpg;
Control Software:Keyland Laserscriber;Temperature control precision:0.5°c;
Single package size:68X68X60 cm;Laser Source Brand:IPG Raycus or Keyland;
Condition:New;Place of Origin:Hubei China;
Brand Name:Keylaser;After-sales Service Provided:Field installation, commissioning and training;
Single gross weight:68 KG;Certification:CE,UL,FDA;
Package Type:International Transport Plywood Package witth Aluminum strip fixed;Solar cell Scribing laser system:Solar Cell Dicing Machine;
Application:Laser Scribing;Working area:200mm*200mm;
Guiderail Brand:HIWIN;Laser Head Brand:Keyland Laser;
Key Selling Points:Sustainable;Scribing accuracy:±10μm;

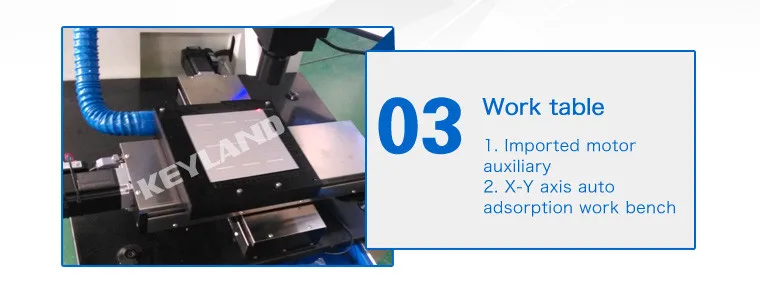

Scribing Width:30μm;Working Table:Negative pressure adsorbing&dust elimination;
Selling Units:Single item;Applicable Industries:solar plant or lab.;
Working Power:380(220V/110V)50Hz/60Hz /1kVA;CNC or Not:Yes;
Warranty:3 years;Cooling Mode:Air Cooling;
Laser Type:Fiber Laser;Graphic Format Supported:AI,PLT,DXF,BMP,DST,DWG,LAS,DXP;
Laser Wave length:1064nm;Laser Power:10W 20W 30W 50W;

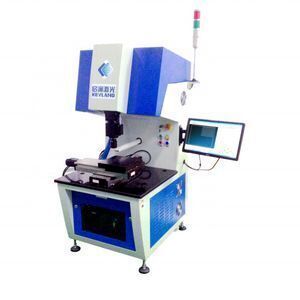

Keyland  broken Solar Cell Silicon Wafer  Laser Cutter Machine

Optical fiber laser scriber / scribing machine , Solar cell laser cutter / cutting machine , Silicone wafer slicer , PV / Solar cell laser scribing machine , fiber laser scriber

Wafer Solar Cell Laser Cutting Machine is suitable for cutting scribing of solar PV industry,

Just like mono crystalline silicon, poly crystalline silicon solar cell,amorphous ribbon silicon and silicon wafers.

Laser power: 10W 20W 30W 50W

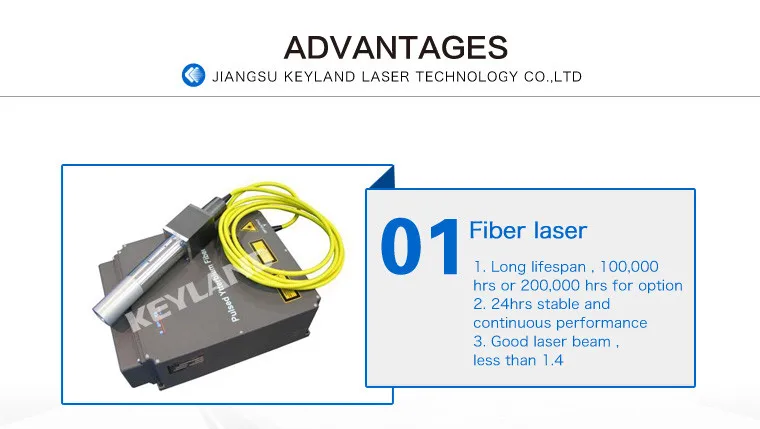

Fiber Laser  (Germany IPG/China Raycus/USA SPI Fiber Laser )

Laser scribing scope : 200x200mm , 350x350mm

Scribing speed : 200mm\s - 300mm\s

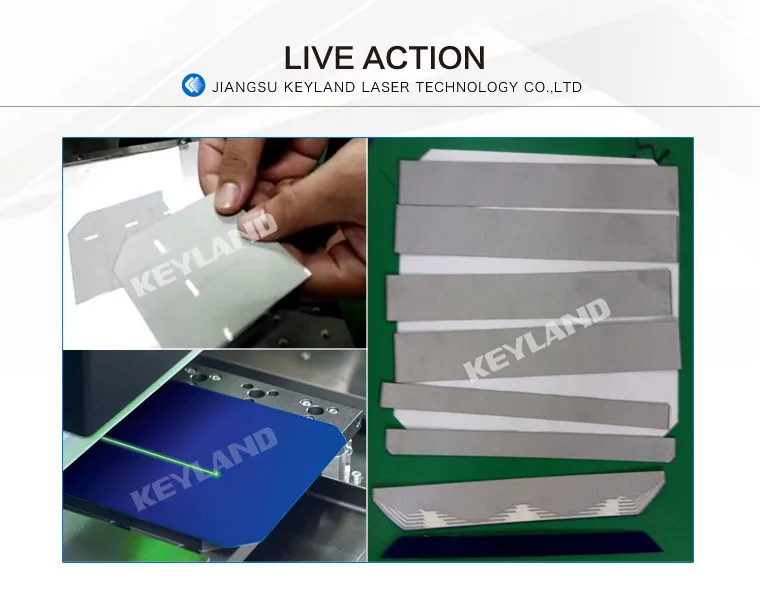

Also suit for Broken cell cutting ,which is used for Solar lamp,Sun hat,Sun toy,solar air conditioning and etc.

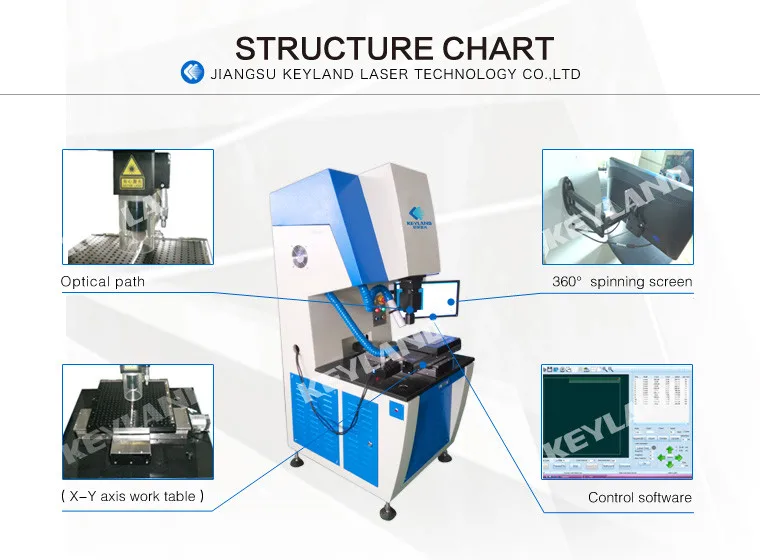

Keyland Wafer Solar Cell Laser Cutting Machine Characters:

  • 1. Small size Compact design for easy moving and handling,in line with moder business management
  • 2. High efficiency electro-optical conversion.
  • 3. High precision and Air cooling
  • 4. Stable and continuous processing but lower operation cost
  • 5. Easy&convenient operation
  • 6. Maintenance-free (no damageable parts&consumable parts be replaced)

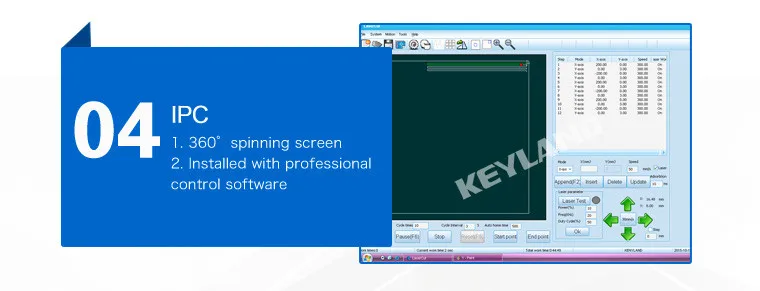

  • 7. Touch screen control,servo/Step  motor for option
  • 8. Automatic absoption and without foot pedal
  • 9. Imported Core parts

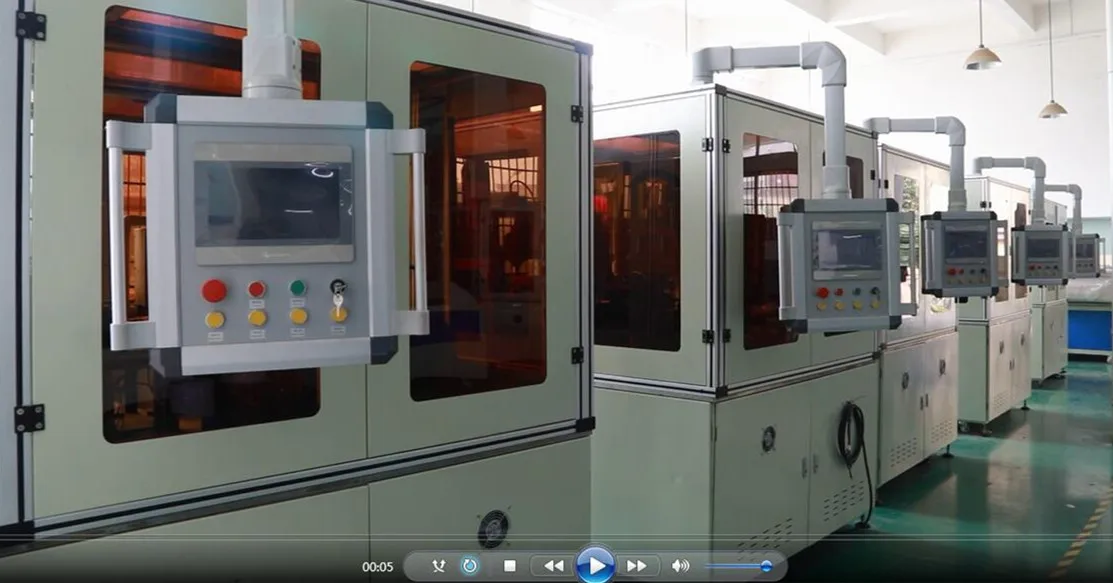

--Operation of Solar Laser cutting Machine by keyland laser


https://youtu.be/xJK3pgzwqRI

Pls click for our full automatic solar cell laser scribing machine



Our Wafer Solar Cell Laser Scribing Cutting Machine is used in

1.Lab. for University

21.solar panel making line

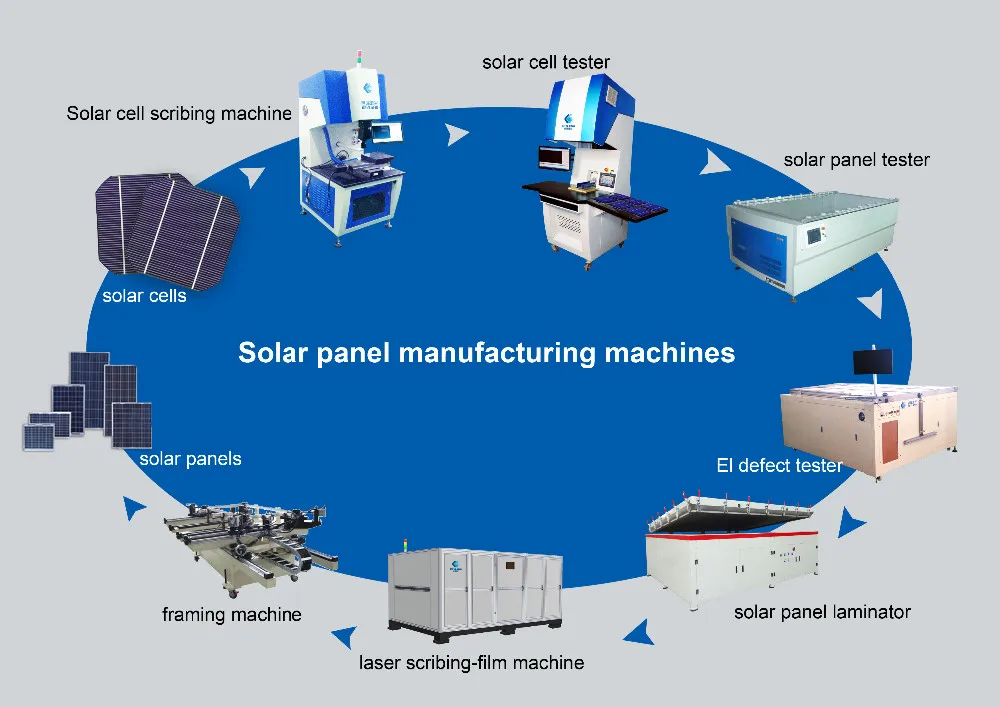

Welcome to inquiry us for solar line equipment

  • Solar Cell Laser Scribing Machine ,  Solar Laser Wafer Slicing Machine,solar cell cutting machine
  • Solar Cell Tester
  • Solar Simulator for solar panel tester
  • Solar El Defector
  • Solar Framing machine
  • Solar Laminator
  • Solar  HIPOT tester
