Payment Terms: | L/C,T/T,Western Union; | Model Number: | CDZ; |
Brand Name: | DYQX PETRO; | Supply Ability: | 100 Set/Sets per Month; |
Applicable Industries: | Energy & Mining; | Packaging Detail: | Standard Exporting package; |
Type: | Drill pipe elevators; | Port: | China Any port; |

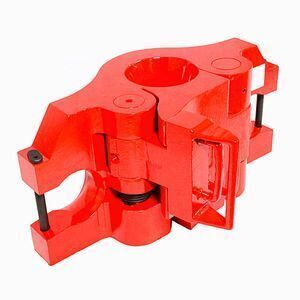

CDZ Type Side Door Drill Pipe Elevators
1. API Spec 8A/8C standard
2. Rated Capacity: 150~500Tons
3: Pipe Range size: 2 3/8~5 1/2
CDZ Series Drill Pipe Elevators are suitable for handling 18 degree taper shoulder drill pipe and drill tools, etc. The products are designed and manufactured according to API 8A-specification for
drilling and Production Hoisting Equipment.
Technical Specification:
Type | Model | Drill pipe size and style | Elevator bores | Elevator sign | Max load tons (KN.m) |
CDZ | CDZ67 | 2 3/8 EU | 67 | 2 3/8 EU |
100(900) 150(1350) 250(2250) 350(3150) |
CDZ83 | 2 7/8 EU | 83 | 2 7/8 EU | ||
CDZ101 | 3½EU | 101 | 3½EU | ||
CDZ109 | 4IU | 109 | 4IU | ||
CDZ121 | 4EU |
121 | 4EU | ||
4½IU | 4½IU | ||||
4½IEU | 4½IEU | ||||
CDZ133 | 4½IU | 133 | 4½IU | ||
5IEU | 5IEU | ||||
CDZ148 | 5½IEU | 148 | 5½IEU |
