P80 plasma cutting torch with cutting kits nozzle electrode shield consumable items

Supplier: Beijing Arcbro Technology Ltd.
Region: Beijing, China
Contact: Mr Tony Leung
Price: $1.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Package Preview:	https://sc01.alicdn.com/kf/Hbcffb9fd4e8844db98c493b0281bf3dem.png_640x640.png,https://sc01.alicdn.com/kf/H67ed718bd49a4dcea1a06fcc1d3585deJ.jpg_640x640.jpg;	Place of Origin:	Beijing China;
Selling Units:	Single item;	Single gross weight:	28.6 KG;
Brand Name:	ARCBRO;	Model Number:	P80;
Single package size:	44X36X38 cm;	Type:	Cutting Torch;

Product Description

We provide several models of P80 plasma cutting torchs, nozzles, Electrodes, shield cups, Please contact us(chet now) before start order.

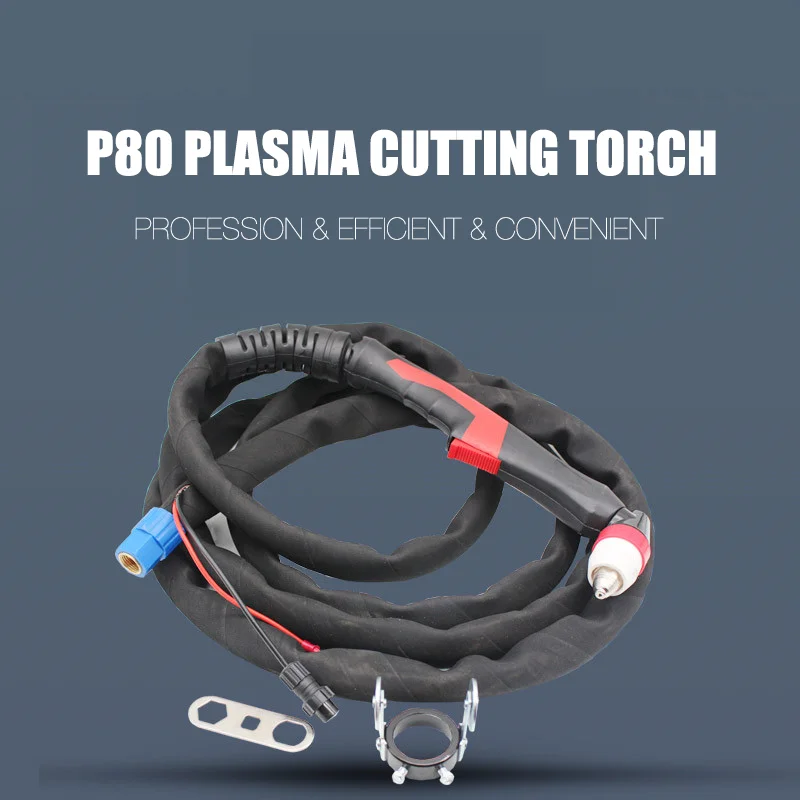

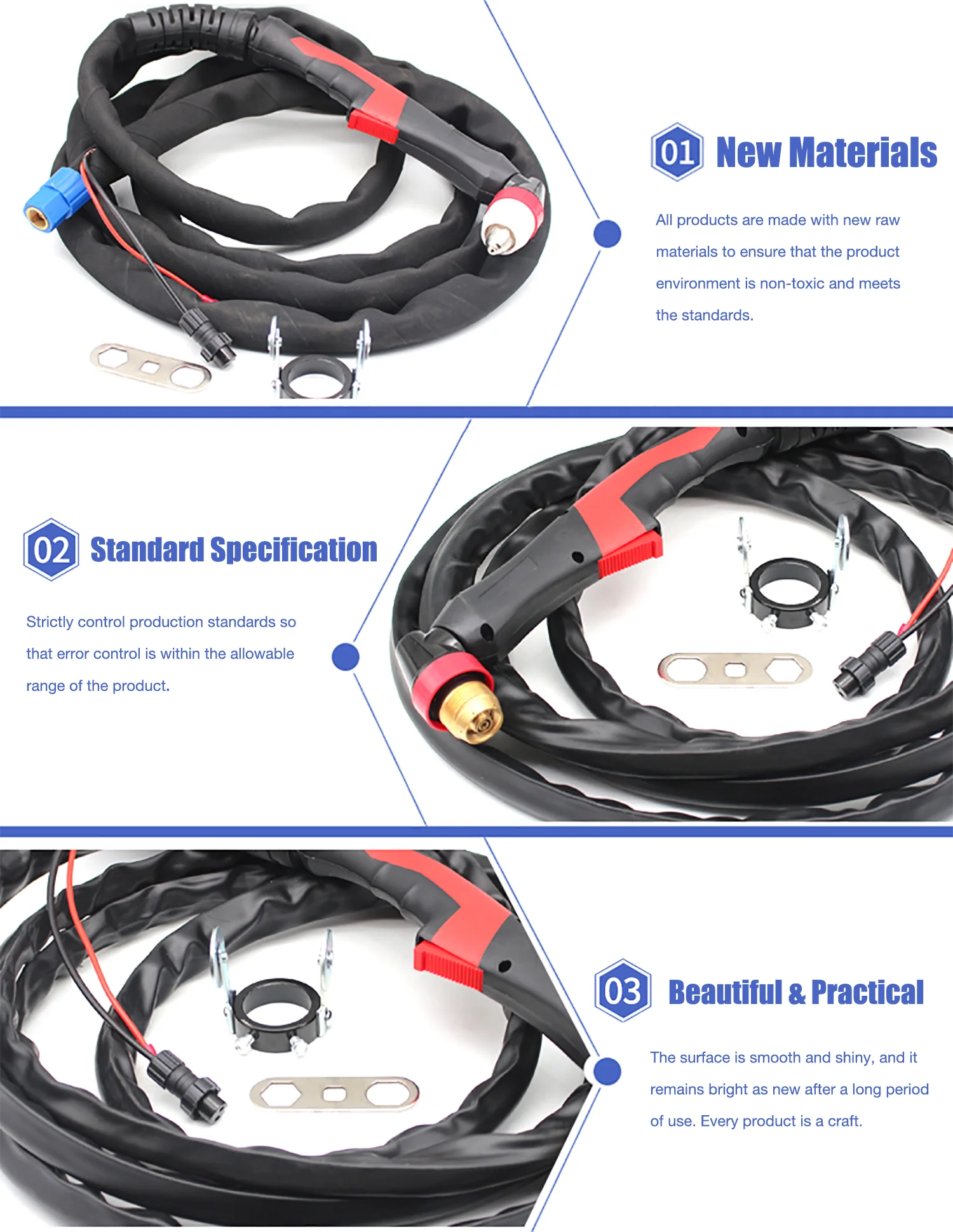

P80 plasma cutting torch with fire protection cover

1.the torch head is processed with high quality copper raw materials

2.the rear handle of the torch is made of thick and hard material. The clamp is tighter and not easy to damage.

3.Provide 4m / 8m line

4.All the accessories sold in the store are products that have been certified as qualified after repeated use.

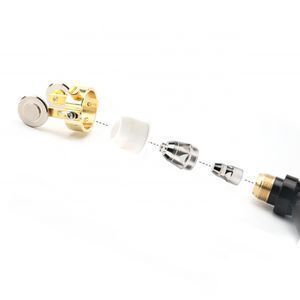

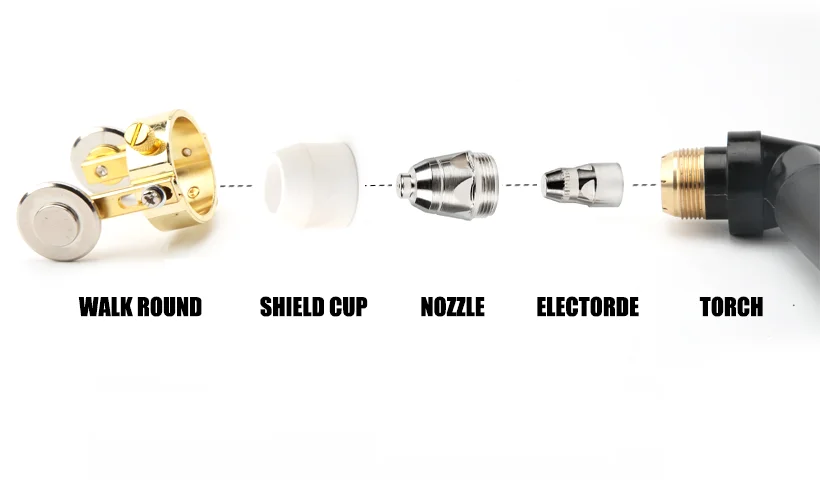

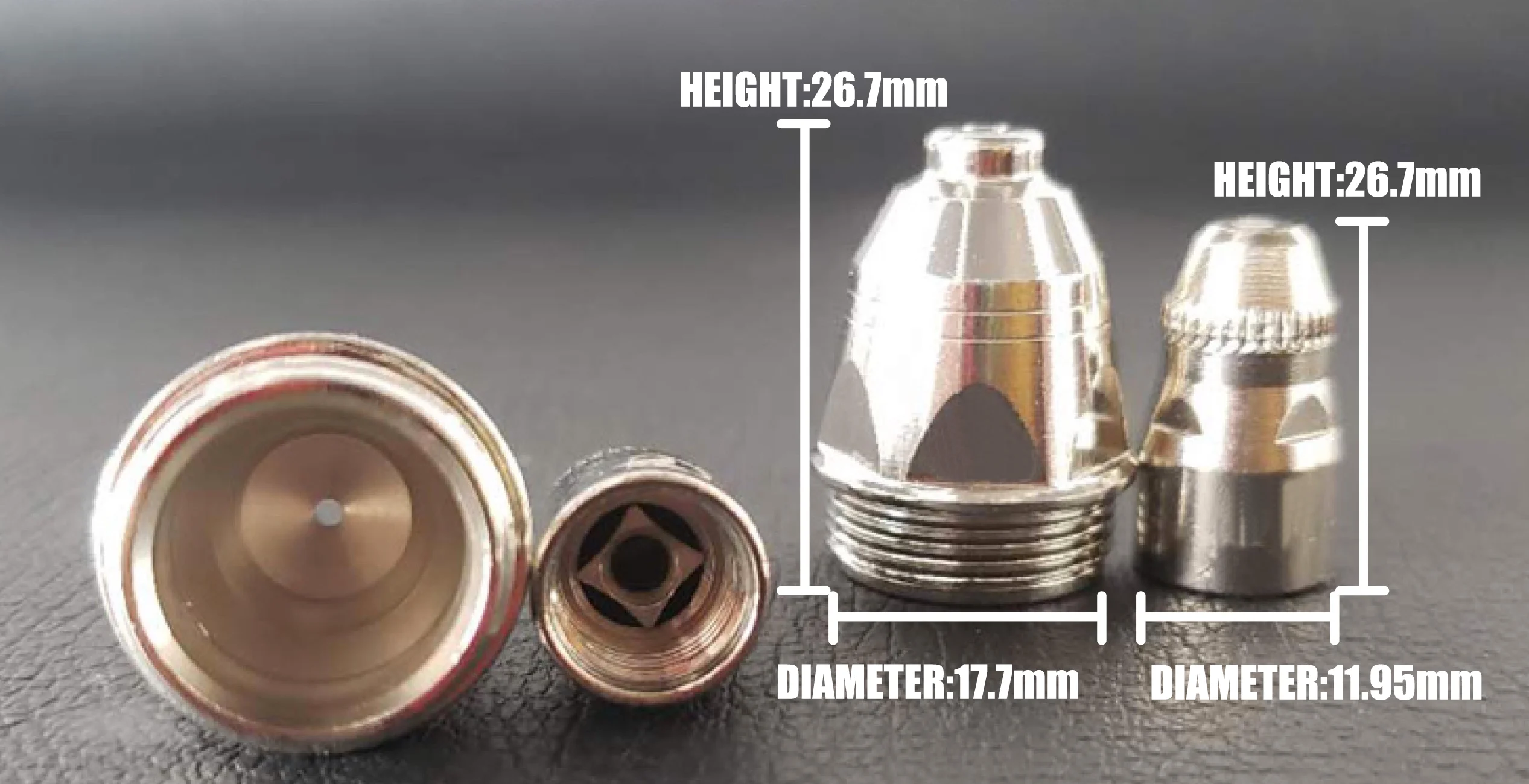

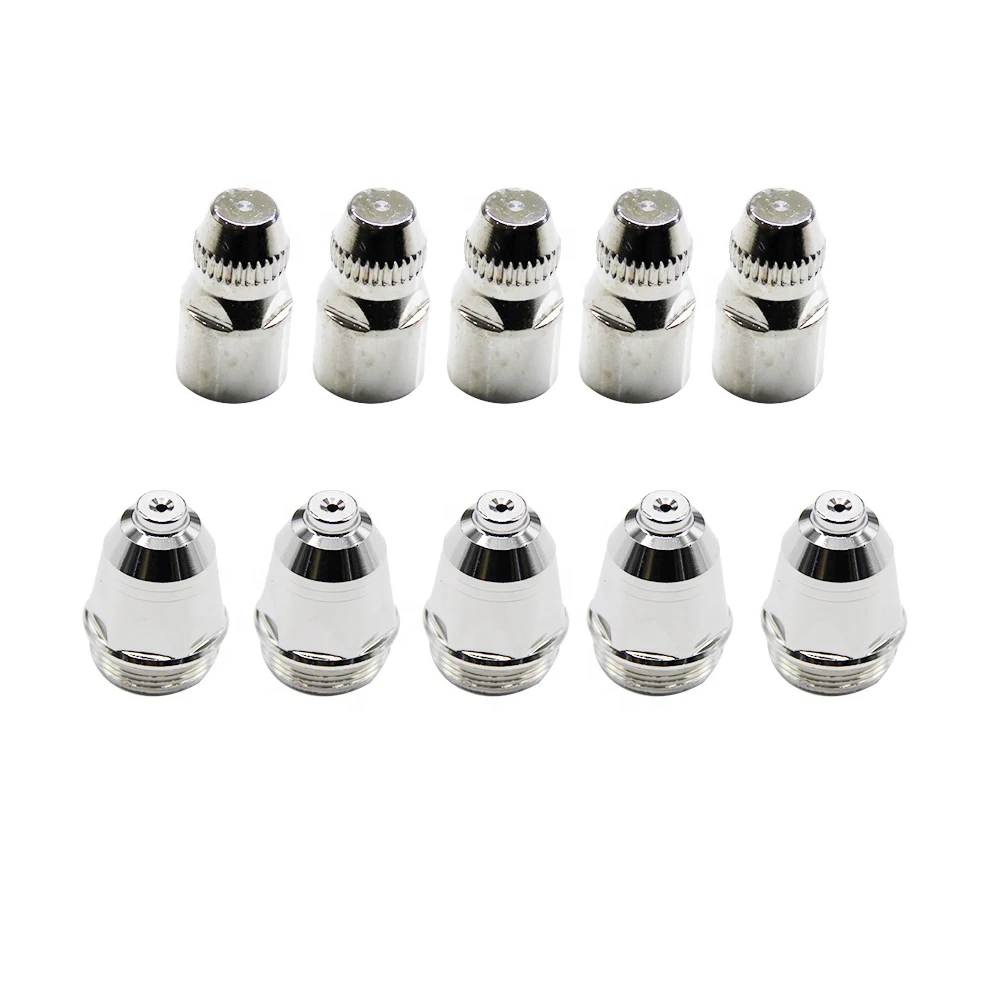

P80 plasma Nozzle & Electrode

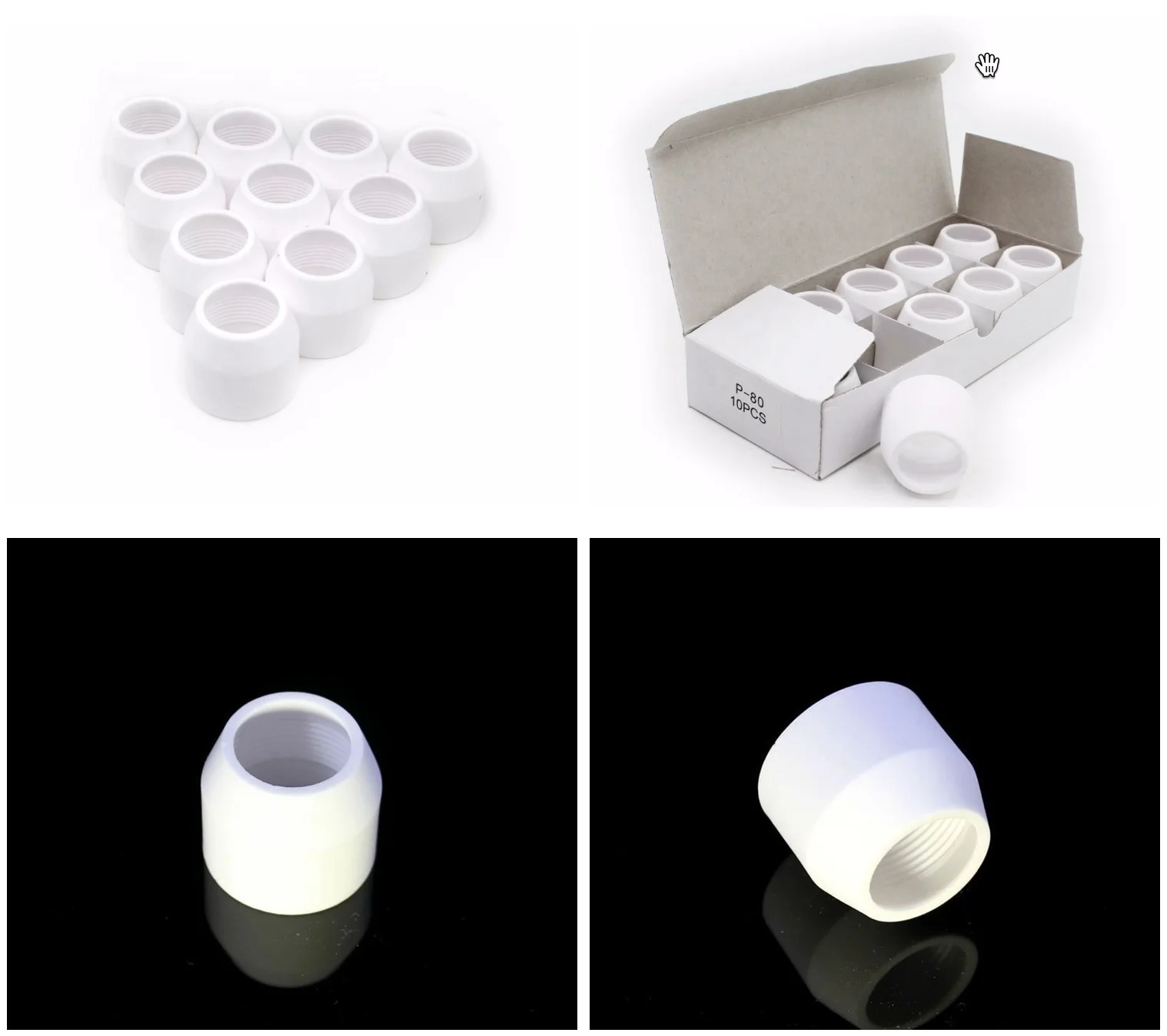

shield cup

parameter

Commodity Name	P80 Plasma Torch
Current	80Amps
Duty Cycle	60%
Gas	AIR
Gas Pressure	4.5-5.5 Bar
Gas Flow	220LPM
Ignition	HF
Post Flow	80sec. recommended
Length	5m

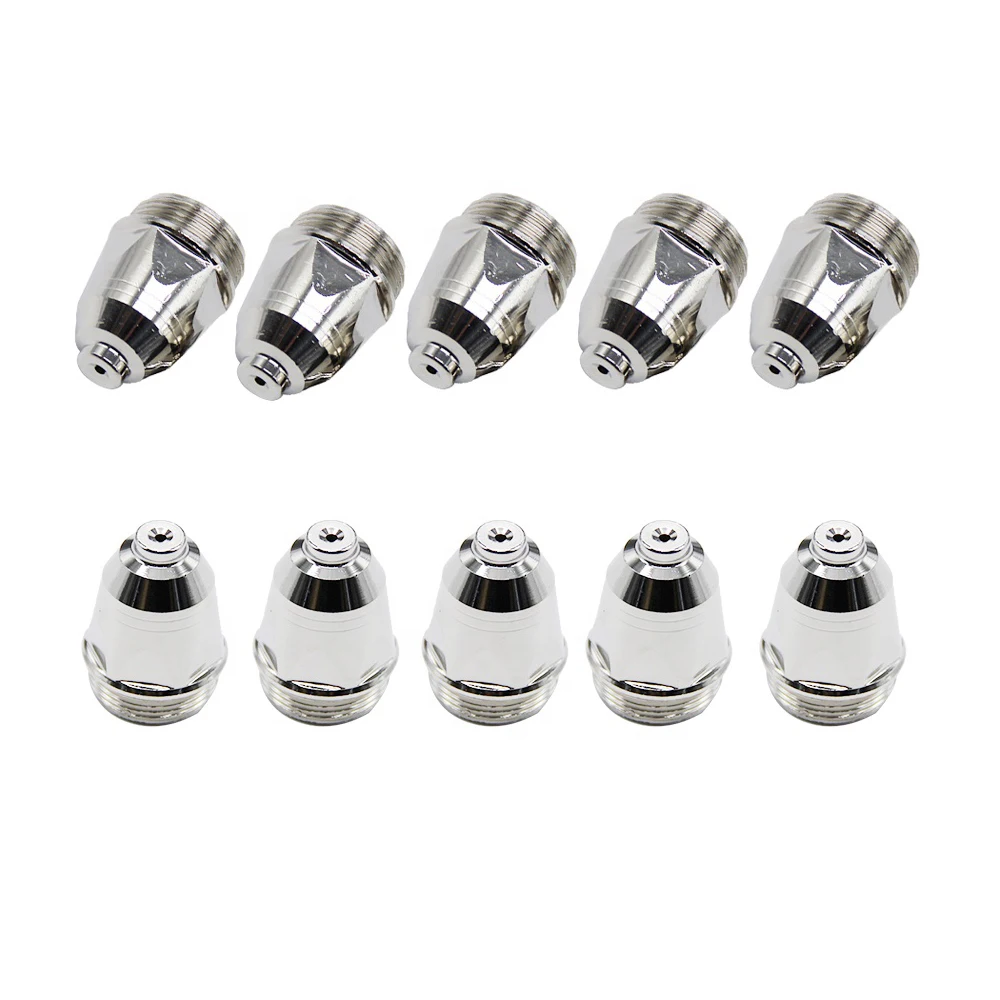

Commodity NameP80 Nozzle
Aperture	Amperage	Cutting thickness
1.1mm	40A	0-6mm
1.3mm	60A	6-10mm
1.5mm	80A	10-18mm
1.7mm	100A	18-25mm
