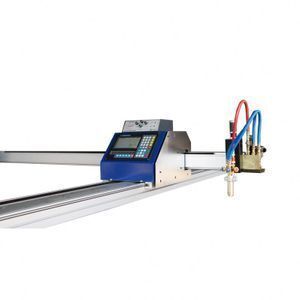

Chinese Cheap Price Portable CNC Plasma and Gas Cut Oxygen Aluminum Metal Flame Steel Plate Small Mini Cutting Machine

Product details
Payment Terms:L/C,T/T,Western Union;Compulsive gas:Oxygen;
Cutting size:1500*3000mm/1500*6000mm;Flame Cutting Speed:0-1000mm/min;
Name:Scout 2;Brand Name:ARCBRO;
Condition:New;Plasma Cutting Speed:0-4,000mm/min;
Local Service Location:United States,Germany,Peru,Japan;Place of Origin:Beijing China;
Warranty:1.5 Years;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Year:2019;Showroom Location:United Kingdom,United States,Peru,Japan;
Certification:CE;Brand Name:ARCBRO;
Voltage:220AC/110AC, 60/50HZ;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Height control:Mechnaical THC for flame, AVC for plasma;Packing:In 1 plywood boxes;
Cutting mode:Flame / Plasma + Flame;Certification:CE;
Weight:80.5KG;Type:CNC Plasma Cutters;
Key Selling Points:Easy to Operate;Rated Power:1800W;
Port:Tianjin, Dalian, Qingdao;
Product Description







Features:

Lightweight & Reliable Cutting Solution



Scout 2 offers a flexible solution with all advantages of a CNC portable cutting machine. Due to its lightweight and solid aluminium construction, this small unit is quick to assemble and dismantle. It can be configured as either a oxy-fuel cutting machine or a plasma cutting machine.



With a standard 18-month warranty, this the CNC machine you’ll own for the long haul. Whether you are a dealer, a busy workshop owner, or a metal artist, this lightweight yet reliable unit will exceed your expectations.





1,Reliable Machinery





Aluminum guide rail, one-shot die forming

Hard-plated shaft, hard casting process, molding, wear-resistant, deformation-free.





New Lifter

Increase the upper and lower limits. eliminate operating errors to damage the lifting body.





Arc voltage Control (AVC) for Plasma Mode

  • Optimized following algorithm to improve cutting quality.
  • Using high power arc starting relay to enhance arc starting stability
  • Professional motor drive chip to strengthen protection measures
  • Double LED digital tube display, set arc voltage and actual arc voltage



2, Easy to Assemble

Due to its compact size, installation of the Scout 2 is easier than ever. Assembly and setup of all components do not require any special measuring tools. Prior to shipping, the Scout 2 is pre-adjusted at our factory. Once you are ready, simply slide all components together and connect

cables.

3, Easy to Operation



The machine is easy to program and nest material. It can be used to manually program simple graphics or to automatically program any complex graphics through the fastcam software provided with machine.


SHANGHAI FANGLING® CNC SYSTEM



Supporing multi-languageSystem comes with multiple graphics



Feature:

A simple, menu-driven interface is easy to learn and operate.
Built-in library of common shapes
File transfer storage is convenient and flexible: Support USB port for program loading.
G code dynamic simulation processing function
Kerf compensation
Complex curve fitting function
Support multi-format file import and export





FASTCAM® SOFTWARE


Feature:
Fastcam® Software for Plate Shape Cutting with integrated 2D drawing, tool pathing, true shape nesting, code verification & NC generation.
It is far less complex than other systems. Easy Editing & Verification of geometry combined with one step nesting makes the system instantly productive.
Extremely Powerful CAD interface that cleans and compresses code ready for quality cutting.
FastCAM® Reads and/or Nests DXF, DWG, DSTV/NC1, StruCAD, IGES and PDF file formats.

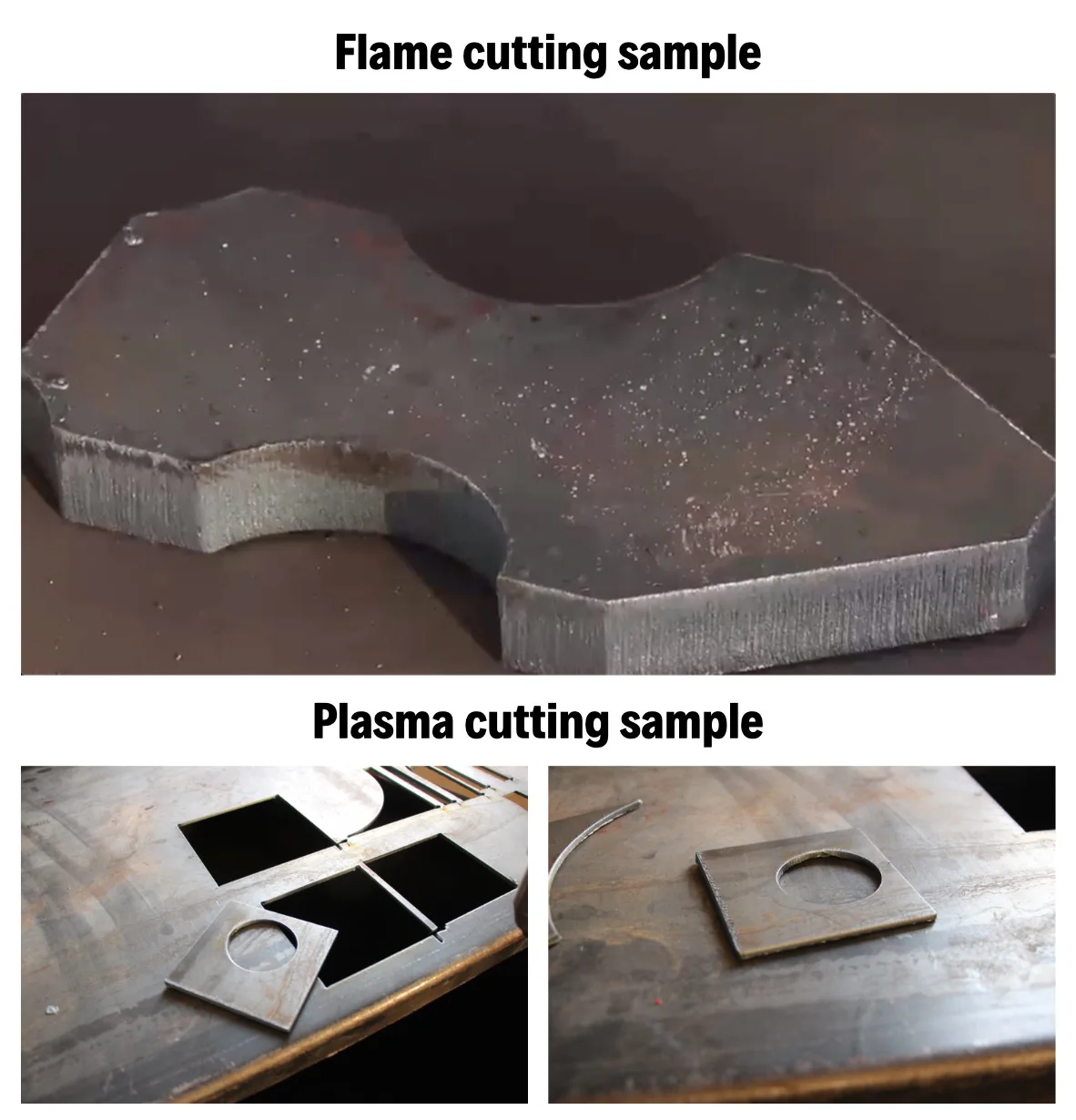

Product pictures:

Parameters:



Type
Scout 2
Mode of Cutting
Plasma / Flame
Input Voltage
110V / 220V
Frequency
50 / 60Hz
Input power
180 W
Display
LCD 7''
Flame Cutting Thickness
5 - 150mm
Plasma Cutting Thickness
Depending on the plasma power source
Flame Cutting Speed
0 - 1000 mm/min
Plasma Cutting Speed
0 - 4000 mm/min
Tolerance
<0.5mm
Plasma Height Control
Automatic voltage THC

Application:

Carbon steel, stainless steel, aluminum,copper, other non-ferrous metals.



Costomization:

We have professional CNC instructors to help you analyze and sort out your cutting needs, and provide you with the most reasonable solution!



- Cutting size: 1300mm*1300mm / 1500*6000mm

- Cutting mode: Flame mode / Plasma + Flame mode

- Color, logo, packing: Only need to pay for the materials' cost.



Packing & Shipping Service:

Payment:

Our Services
Service period: 7*24Hours
PRE-SALE SERVICE
1,Provide users with professional guidance and technical advice on CNC cutting technology
2,Provide relevant procurement advice based on the user equipment usage environment and requirements

AFTER SALES SERVICE

1,After the final acceptance of the equipment, the quality assurance period of the whole machine is 18 months.
2,Technical information:
After the payment by the buyer, the supplier unit provides free of charge: machine instruction manual, basic production installation diagram, circuit diagram, gas supply drawing, power supply drawing.
3,During the warranty period, when the equipment failure occurs due to the quality of the equipment supplied by the seller, theseller will respond within 12 hours after receiving the buyer's notice, and free online troubleshooting, guidance repair orreplacement of parts.
4,After the warranty expires, the equipment enters the paid service period, and the manufacturer only charges the cost and transportation costs.

SERVICE FOR FREE

1, Free installation of video, machine and using instructional videos of software, after-sales forums (please visit Arcbro official website - Support)
2,Provide free machine instruction manual, basic production installation drawing, circuit diagram, gas supply drawing, power supply drawing
3,Free online staff training (also available directly to manufacturers); multi-language CNC trainers: support one-on-one training in English, Russian, Spanish
4,Free online technical support, technical consultation and machine diagnostics
5,Warranty period: Free replacement of any machine fault parts, free online machine diagnosis . After the warranty period, the manufacturer only charges the cost and freight.
