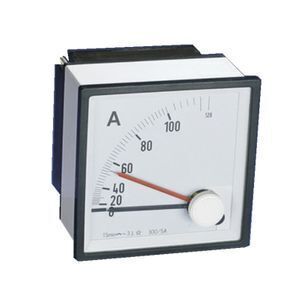

Everfar- CP-48M Maximum Demand AC Analog Panel Ammeter bi-structure bimetallic instrument red pointer analog ammeter

Supplier: Wenzhou Everfar Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Kelvin QIN
Price: $3.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Port:	ningbo shanghai;	Supply Ability:	10000 Piece/Pieces per Month;
Measuring Range:	0-6000A;	Supply Voltage:	0-600V;
Display Type:	Analog Only;	Place of Origin:	china;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Dimensions:	48x48;
Brand Name:	everfar OEM;	Model Number:	CP-48M;
Operating Temperature:	-25 Degrees-+55 Degrees;	Accuracy Class:	1.5 & 3;
Weight:	0.5kg;

Other Products

Product Description

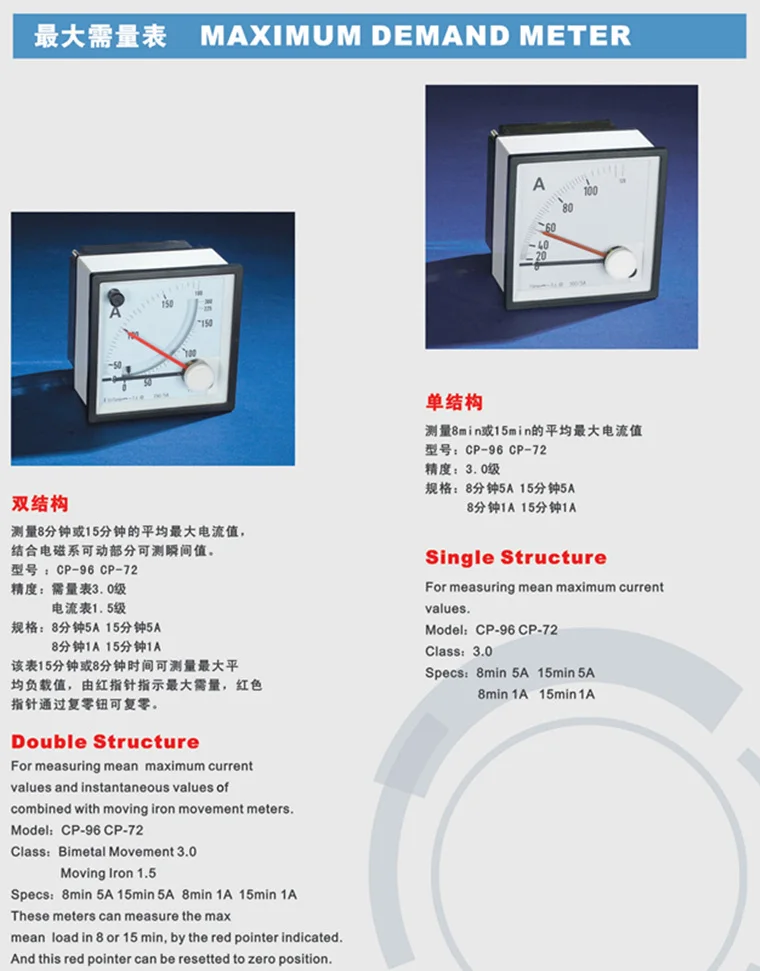

Maximum demand meters are intended for testing momentary thermal load of transformers, cables, electrical machines etc. The bimetallic movement responds and indicates the mean RMS current loading over a specified period of time. A black pointer which is attached to the bimetal spiral moves in response to the current -(heating) in the bimetal spiral. A red pointer (slave or memory pointer) is driven by the black pointer. The red pointer remains at its maximum position to which the black pointer has reached during any period of time. Further, when the loading is reduced, the red pointer remains at the maximum value. This enables the operator to know the maximum loading of the system without continuously watching the meter. A zero corrector is provided on the front of the meter to bring back the red pointer to the position of the black pointer. A sealing/locking facility is also provided on the zero corrector to prevent tampering of the reading at the red pointer.

Model	Frame Size	Mode	Measuring Range	Class Index red pointer	Class Index black pointer
CP-96M2	96x96	x/5A T=15min*	5~6000A	3	1.5
CP-72M2	72x72	x/5A T=15min*	5~6000A	3	1.5
CP-48M2	48x48	x/5A T=15min*	5~6000A	3	1.5
