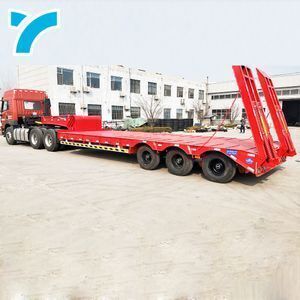

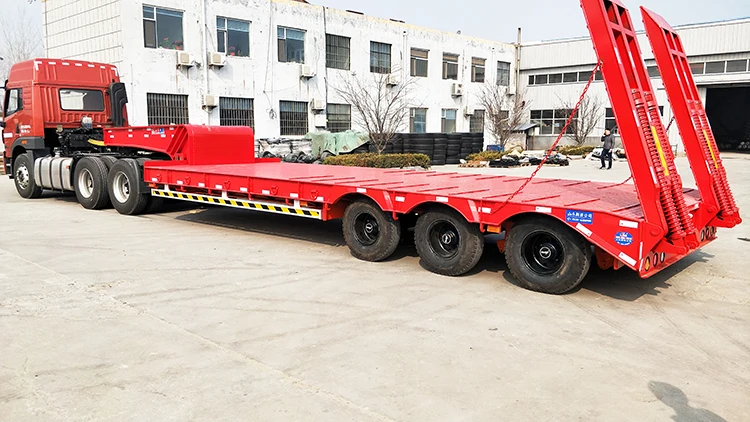

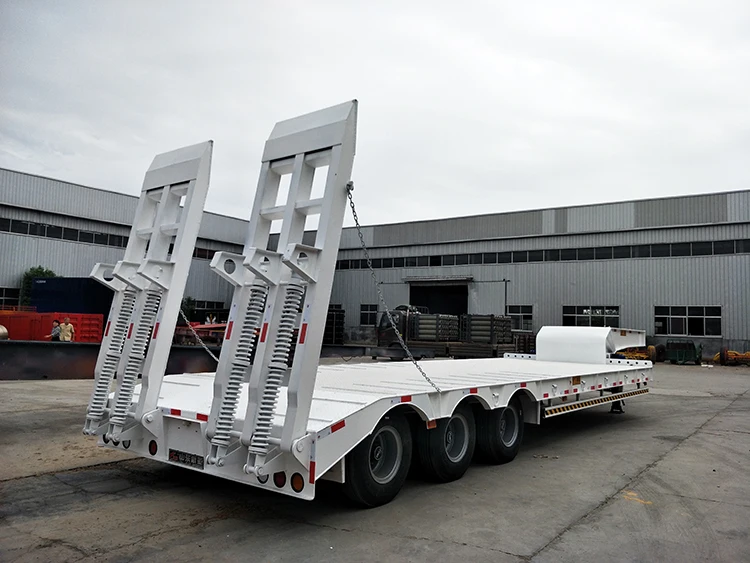

China manufacturer low bed truck semi 3 axles lowboy trailer lowboy semi trailer for sale

Supplier: Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Ms GUO Kara
Price: $3000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Landing Gear:	Standard 28Ton, JOST / FUWA etc.;	Size:	1300030001100mm;
Type:	Semi-Trailer;	Product name:	3/4 Axles goose low bed truck Semi Trailer;
Axles:	13T16P;	Packaging Detail:	Shipped by RO-RO / container / bulk cargo carrier. PS: 3 or 4 stack up when transported by bulk cargo carrier. PS: 2 or 3 units in one 40' container;
Max Payload:	60T -70T;	Suspension:	Mechanical / air / single point suspension;
Usage:	Truck Trailer;	King pin:	2"(50mm) or 3.5"(90mm);
Material:	Steel;	Supply Ability:	400 Unit/Units per Month;
Place of Origin:	Shandong China;	Certification:	ISO9001, CCC;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Axle Brand:	BPW / FUWA / Yonglitai / Huajin etc.;
Color:	optional;	Brand Name:	Yong Chao;
Use:	Truck Trailer;	Type:	Semi Trailer;
Port:	any port of China;	Tire:	12R22.5 / 12R20;

Product Description

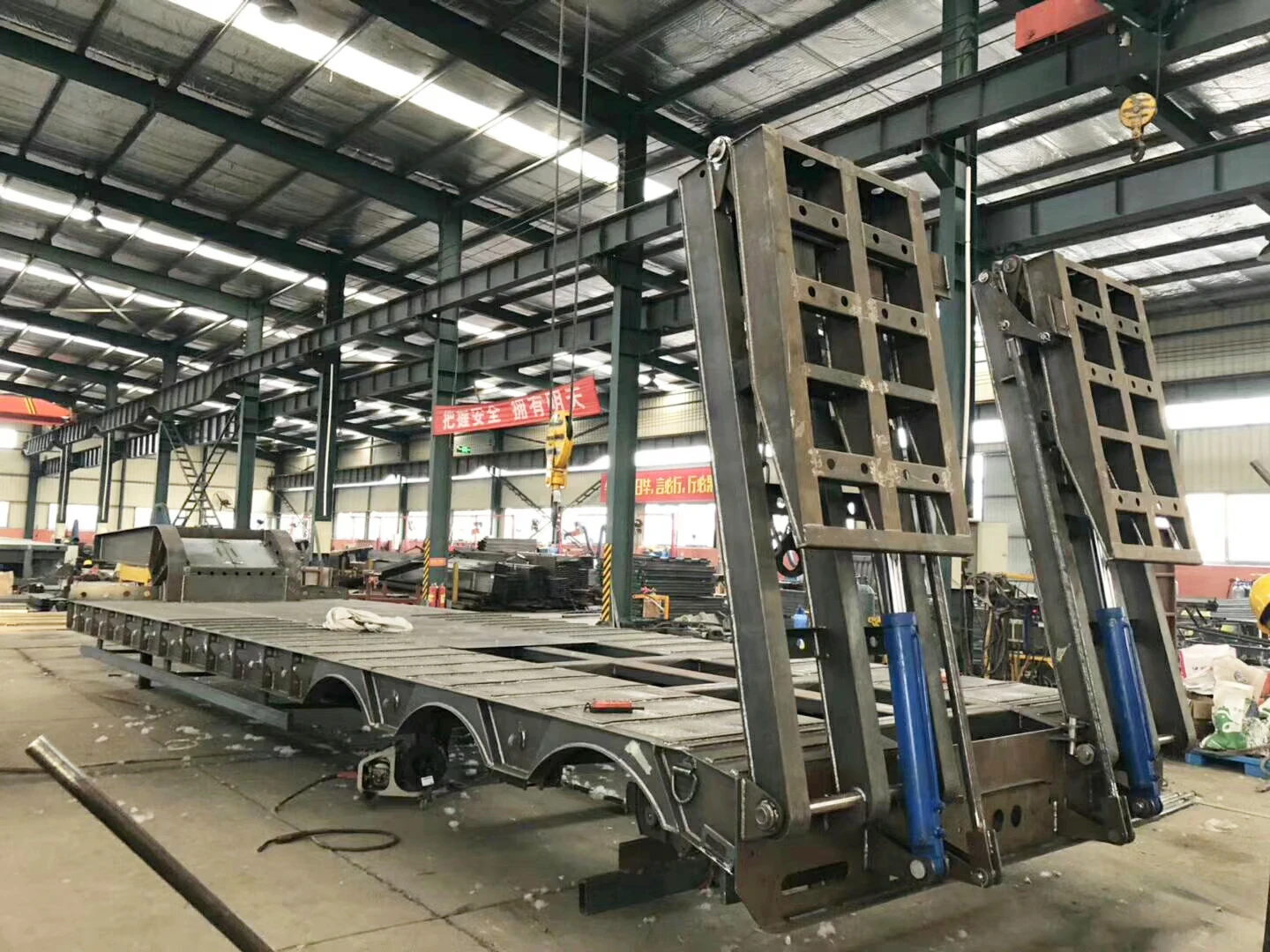

Welcome to visit our factory
Make the most suitable trailer for you

Overall Dimension(LWH)	1300030001100mm or customize
Tare Weight	7t
Loading Weight	60t – 70t
Axle	13T, 1-4 pcs, BPW / FUWA / Yonglitai / Huajin etc.
Leaf Spring	90*13-10, 6/8 sets, Funiu / Taiyue etc.
Suspension system	Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)
Main Beam	T700 Steel. beam height 520mm, upper plate 12mm, down plate 14mm, middle plate 10mm.
Side Beam	T700 Steel, beam height 230mm, upper plate 8mm, down plate is 8mm, middle plate is 6mm.
Cross member	“C” type & “T” type channel steel
Platform plate	Side 4# checker plate, middle 1.8# checker plate
Steel Rim	9.00-22.5, 12 pcs
Tool Box	1 spanner, 1 gudgeon sleeve and 1 cranking bar
Tire Type and quantity	12R22.5-18, 12units
Steel Rim	9.00-22.5, 12Units
Tool Box	1 Standard (equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)
Traction Pin	2"(50mm) or 3.5"(90mm)
Spare Wheel Bracket	1 piece
Landing Gear	Standard 28Ton, Single-Side Operation or Double-Side Operation, JOST / FUWA etc.
Brake system	WABCO RE 6 relay valve; T30/30+T30 chamber; two 40L air tanks, ABS Optional
Ladder	1 pair, Mechanical or hydraulic type, width 800mm
Electrical system	1. Voltage: 24V, LED lights 2. Tail lamp with turn signal, brake light & reflector, side lamp etc. 3. 7 ways (7 wire harness)
Painting	Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints
other	Can add Mid & Rear Side protection, the side beam hook

Product Function:
Mainly used to carry heavy mechanical , large equipment , such as excavator, tractors, buses, special purpose vehicles, large tanks, rail vehicles, mining machinery, forestry machinery, power station equipment, and other heavily goods.
Loading 30-200tons low bed semi trailer can be provided based on client requirements.

Characteristics:
1. Material: T700 high strength steel, more durable and stronger; main beam is thicker and wider, reject twisting, shock and bump.
2. Drive on different roads.
Try our best to lower the center of gravity, make it steady for super-tall loads and to pass overhead obstacles.

Our Services

1. Provide customization.
2. Strictly comply with customer requirements.
3. Strict quality inspection.
4. Lifelong technical support.
PS: Nobody complain for the past 10 years, even big buyers.
