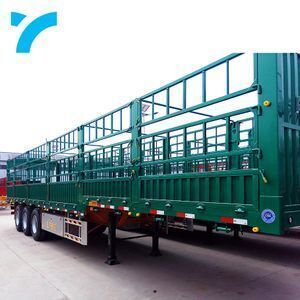

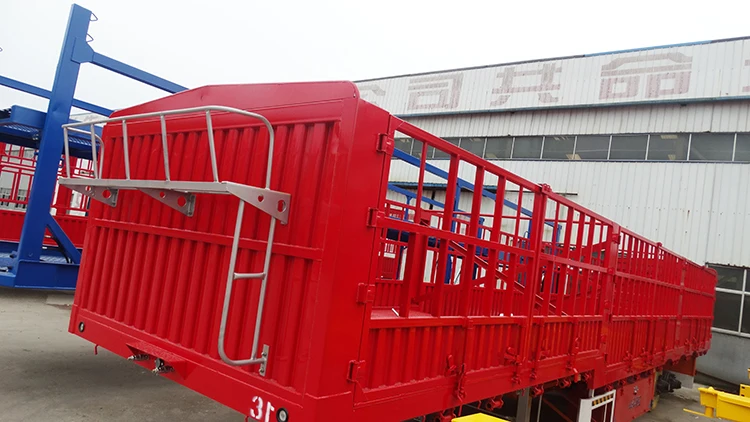

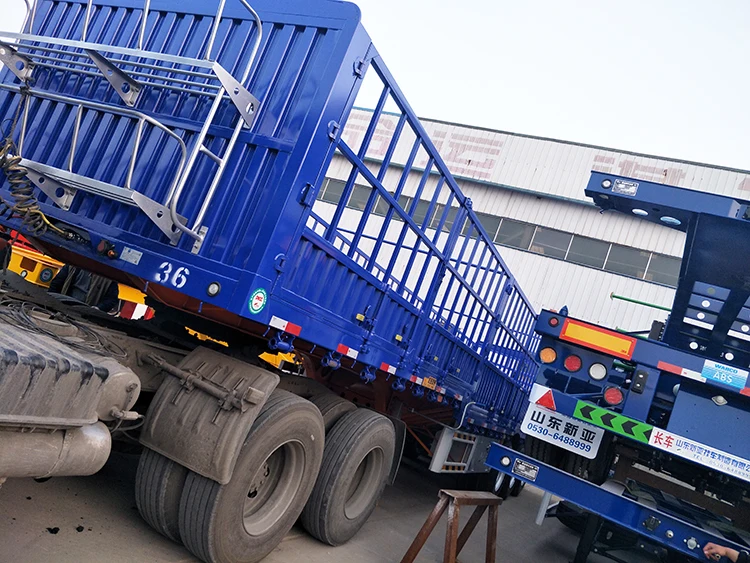

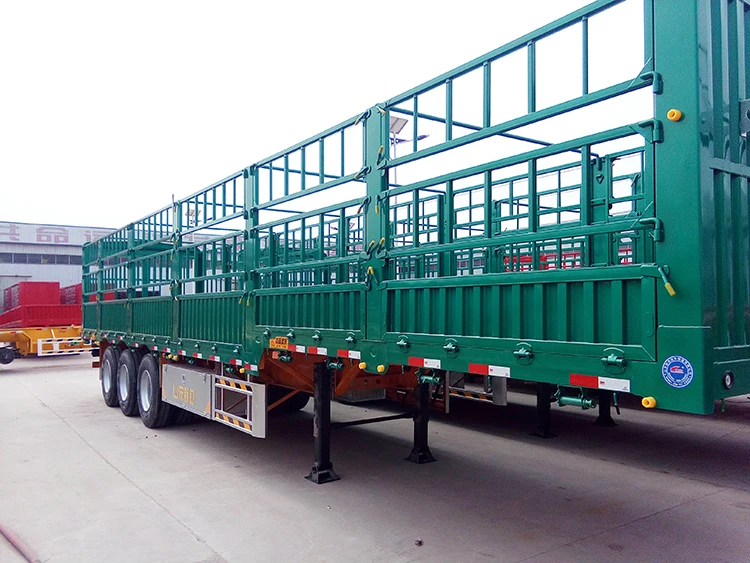

Factory 3/4 axles 40ft side wall semi cargo truck fence semi trailer lowbed semi fence trailer

Product details
Max Payload:70T;Packaging Detail:Transport by RO-RO or container or bulk cargo carrier.;
Axles:13T 16P, 1-4 pcs;Supply Ability:400 Unit/Units per Month;
Function:bulk transportation, especially farm or logistics.;Size:13000*2500*3380mm;
Landing Gear:Standard 28Ton, JOST or FUWA etc.;Brand Name:Yong Chao;
Port:any port of China;Type:Semi-Trailer;
Certification:ISO9001, CCC;Suspension:Mechanical / air / single point suspension;
Place of Origin:Shandong China;Usage:Truck Trailer;
Use:Truck Trailer;Type:Semi Trailer;
Material:Steel;Twist Locks:optional, 4, 8, 12pieces;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Painting:customization;
Product name:3/4 axles 40ft side wall semi trailer;Tire:12R22.5 or 12R20;
Product Description

 Welcome to visit our factory.
Make the most suitable one for you.

Dimension(L*W*H)13000*2500 (fence height 1600 / 1800 / 2000 / 2200mm)
Tare Weight 7.5t
Loading Weight70t
Axle13T, 1-4 pcs, BPW or FUWA or Yonglitai or Huajin Brand
Leaf Spring90*13-10, 6/8 sets, FUWA / Funiu / Taiyue etc.
Suspension system Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)
Main BeamMaterial: Q345 Carbon Steel.
Beam height: 500mm. Upper plate: 14mm, down: 16mm, middle: 6/8 mm
Side Beam14#/16# channel steel (Q235)
Cross member8#/10# channel steel (Q235)
Platform8#/10# channel steel (Q235)
Side wall height600mm/800mm/1000mm etc.
Front board1500mm
Tire 12R22.5-18, 12units
Steel Rim9.00-22.5, 12Units
Tool Box1 Standard (equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)
Traction Pin2"(50mm) or 3.5"(90mm)
Spare Wheel Bracket1 piece
Landing GearStandard 28Ton, JOST or FUWA etc.
Brake systemWABCO available. 4 sets T30/30+2 sets T30 chamber; Two 40L tanks, ABS Optional



Characteristics:
1. It can carry all kinds of cargo, mainly for farm and logistics, such as agricultural products, light cargo, animals, vegetables, fruits etc.
2. It can be customized, give you the one most suitable.
3. The structure is simple and easy dismantling, reasonably designed for different goods, to meet the fully weight situation and reduce cost.
4. Material: mixed with light high strength steel to balance the strength, stiffness and toughness of the frame, make it stronger.
5. Straight type or gooseneck type optional. Try our best to lower the center of gravity, to make the truck more stable at high speeds, and to enable to load more cargo.

Our Services

1. Provide customization.
2. Strictly comply with customer requirements.
3. Strict quality inspection.
4. Lifelong technical support.
PS: Nobody complain for the past 10 years, even big buyers.












Company Information

 1.    Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. was established in June 2010. It is the "bulletin" enterprise of the Ministry of industry and information.

2.    Main business: light trailer, container trailer, van trailer, flatbed trailer, fence trailer, self-unloading trailer, wing open trailer, tank trailer, car trailer, glass fiber plate trailer, spare parts and so on.

3.    It covers more than 100,000 m2, we have more than 300 staffs spread in 6 department, 4 strict quality inspections throughout the production process. More than 60,000 m2 workshop which produce more than 4,000 trailers per year.
