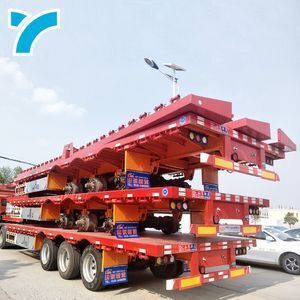

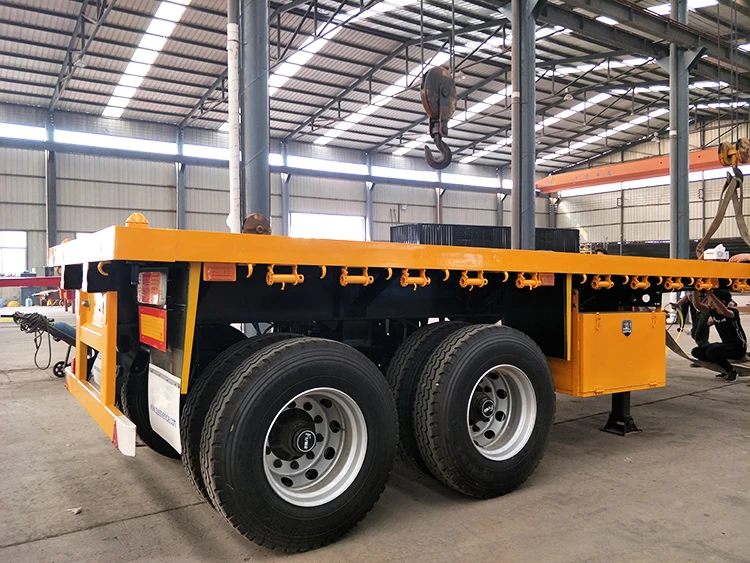

New arrival 2/3/4 axles 40ft flatbed truck semi-trailer container flatbed trailer low bed truck trailer

Product details
Port:any port of China;Brand Name:Yong Chao;
Certification:ISO9001, CCC;Axles:13T 16P, 1-4 pcs;
Max Payload:80T;Use:Truck Trailer;
Type:Semi-Trailer;Size:customize;
Suspension:Mechanical Suspension / air suspension / single point suspension;Supply Ability:300 Unit/Units per Month;
Landing Gear:Standard 28Ton, JOST / FUWA etc.;Axle Brand:BPW / FUWA / Yonglitai / Huajin Brand etc.;
Container Lock:as you need;Color:Optional;
Packaging Detail:Transport by RO-RO or container or bulk cargo carrier. PS: 3 or 4 stack up when transported by bulk cargo carrier. Port: any port of China. PS: 2 or 3 units in one 40' container;Tire:12R20 / 12R22.5;
Use:Truck Trailer;Product name:2/3/4 Axles 40ft flatbed truck semi Trailer;
Function:Carry bags, dry bulk cargo, big items or containers;Material:Steel;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Place of Origin:Shandong China;
Product Description



Welcome to visit our factory.

 Make the most suitable trailer for you

Overall Dimension(L*W*H)12400*2500*1550 or customize
Tare Weight 7t
Payload53t
Axle 13T  2/3/4 pcs,BPW or FUWA etc.
Leaf Spring90*13-10 4/6/8 sets, Funiu or Taiyue etc.
Suspension systemMechanical Suspension / air suspension / single point suspension
(Germany Type or America Type or Japan Type)
Main BeamQ345 Carbon Steel, beam height 500mm, upper plate 14mm, down plate 16mm, middle plate 6/8 mm

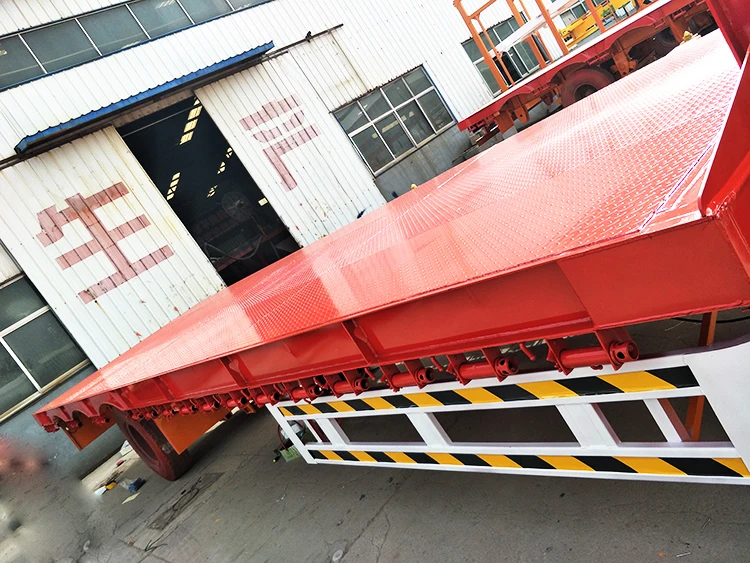

Platform3mm Diamond Plate
Twist Locks 4 pcs or 8 pcs or 12pcs container lock
Tire 12R22.5-18,  12 pcs
Steel Rim9.00-22.5,  12 pcs
Tool Box1 spanner, 1 gudgeon sleeve and 1 cranking bar
Traction Pin2"(50mm) or 3.5"(90mm)
Spare Wheel Bracket1 pc
Landing GearStandard 28Ton, JOST brand or FUWA etc.
Brake systemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two 40L air tanks, ABS Optional
Electrical system1. Voltage: 24V, LED lights
2. Tail lamp with turn signal, brake light & reflector, side lamp etc.
3.Receotacle: 7 wire
Coloroptional
PaintingComplete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints
OtherCan add Mid & Rear Side protection, D-rings



Product Function:
Commonly used for container transporting and other dry bulk cargo:
PS: Dry bulk cargo: such as wood, crop pallets, bagged cement, floor tile, glass, equipment, stone, steel pipes and so on.
PS: customize available:
(1) extendable flatbed trailer for long items,
(2) flatbed trailer with upright column for log loading,
(3) flatbed trailer with groove / sleepers / portal frame / front wall / Sidewall /side pillars / D-rings. Small item, make your trailer more functional.

Characteristics:
1. Straight or gooseneck type, used to carry non-removable big size objects in factory and construction site.
2. Made of high-strength steel, strong bearing, rational construction and good stability.
3. The frame is welded by automatic submerged arc welding, beautiful weld joint, reliable performance.
4. Good looking, easy to sell. Use shot blasting to improve the surface.










Company Information

 1.    Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. was established in June 2010. It is the "bulletin" enterprise of the Ministry of industry and information.

2.    Main business: light trailer, container trailer, van trailer, flatbed trailer, fence trailer, self-unloading trailer, wing open trailer, tank trailer, car trailer, glass fiber plate trailer, spare parts and so on.

3.    It covers more than 100,000 m2, we have more than 300 staffs spread in 6 department, 4 strict quality inspections throughout the production process. More than 60,000 m2 workshop which produce more than 4,000 trailers per year.
