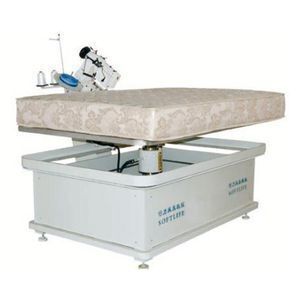

Chain stitch Mattress edge banding tape sewing machine

Supplier: Softlife Mattress Machinery Co., Limited
Region: Guangdong, China
Contact: Ms Feeling Zhen
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	SOFTLIFE;	Weight:	520KG;
Payment Terms:	L/C,T/T,Western Union;	Supply Ability:	100 Set/Sets per Year;
Warranty:	one year;	Voltage:	3-phase AC 380V;
Condition:	New;	Certification:	SGS;
After-sales Service Provided:	Engineers available to service machinery overseas;	Sewing head type:	300U Chainstitch Sewing Head;
Name:	Hot selling Easy operation mattress tape edge machine;	Product name:	Tape Edge Sewing;
TABLE SIZE:	1420x1950mm;	Power Supply:	According to customer's requirement;
Applicable Industries:	Manufacturing Plant;	Dimension(LWH):	195014201650mm;
Productivity:	6.5m/min(adjustable);	Port:	Jiangmen Waihai Port;
Sewing head:	300U Chain Stitch;	Packaging Detail:	Earl cotton & PVC film / According to customer requirements;
Type:	Auto-Flip Mattress Tape Edge Machine;	Application:	Mattress Handle Sewing;
Mattress Thickness:	100-300mm;	Place of Origin:	Guangdong China;

This machine’s working table is adopted high-strength independent bearing, stable working condition, motor upper and down the height of worktable. The rotary power supply is assembled in the machine. It is equipped with Singer-300U chain sewing head and microcomputer controlling system imported from America. It may change walking carriage’s turning speed automatically, which make mattress sewing operation more convenient, fast and the finished turn-flange more beautiful.

Technical Specification:

Model	SL-E
Speed of corner	1-6.8m/min (adjustable)
Working angle of sewing head	30°-55°
Speed of sewing	6.5m/min(adjustable)
Mattress Thickness	100-300mm
Lifting range of worktable	140 mm
The whole machine dimension	1950×1420×1650mm
Worktable size	1420 X 1950 mm
Moving motor power	0.75KW
Motor-upper & down power	0.75KW
Working Voltage	3-phase AC 380V
Weight	520KG
