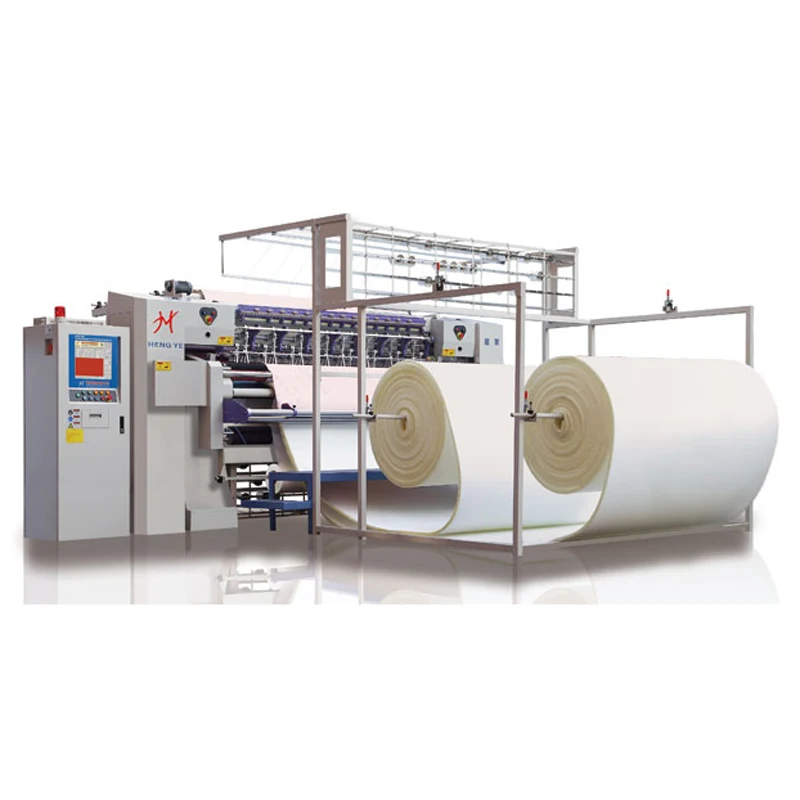

China products CNC automatic high running speed Computerized mattress quilting machine

Supplier: Softlife Mattress Machinery Co., Limited
Region: Guangdong, China
Contact: Ms Feeling Zhen
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product Name:	quilting machine;	Voltage:	380V/50HZ,220V/60HZ;
Quilting width:	2450mm;	Power(W):	7KW;
Place of Origin:	Guangdong China (Mainland);	Port:	Jiangmen Waihai Port;
Speed of operation:	60~230(m/hour);	After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Warranty:	1 Year;	Moving Style:	Frame Moved;
Space between needles:	25.4;	Certification:	CE;
Packaging Detail:	Pearl wood and PVC film.;	Max Sewing Thickness:	≤80(for all patterns);
X-axis movement displacement:	410;	Payment Terms:	L/C,T/T,Western Union;
Stitch length:	3-8;	Condition:	New;
Space between needle rows:	50.8,76.2,127(5");	Weight:	4500KG;
Supply Ability:	20 Set/Sets per Month quilting machine;	Model of needle:	24/180 23/160 22/140 21/130;
Number of Head:	Double Heads;	Max Sewing Speed:	200~900(RPM);
Brand Name:	SOFTLIFE;	Dimension(LWH):	4800x1600x2000;

Product description:
1.Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material.
2. Multi-span and independent patterns(360°and 180°patterns are available).
3.Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment.
4.CE Certificate.
5.No need to adjust the press plate' s position when the thickness of quilting material varies.
6. Outstanding features such as high rigidity, high running speed, low vibration and noise.
7.CNC precision control system.
8.Easy preparation of CAD drawings extremely precise.
9.Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
10.Fault detection function for ease of determining the running state of the machine at any given time.

Technical Specification:

Dimension(L×W×H) :	4800×1600×2000
Quilting width:	2450
Space between needle rows:	50.8,76.2,127(5”)
Space between needle rows:	76.2,76.2,152.4(6”)
Space between needles:	25.4
X-axis movement displacement:	410
Thickness of quilting	≤80(for all patterns)
Stitch length:	3-8
Speed of operation:	60~230(m/hour)
Model of needle:	24/180 23/160 22/140 21/130
Quilting speed:	200~900(RPM)
Total power required:	7KW
Voltage :	380V/50HZ 220V/60HZ
Gross weight:	4500kg

Payment term:
1.L/C at sight.
2.T/T:30% deposit by T/T ,70% balance by T/T before shipment.
3.Trade term: EXW or FOB Jiangmen.

Packing detail:
1.Pearl wood and PVC film.
2.All of the productions are inspected carefully by QC before delivery.

Delivery time:
By T/T within 60 days after receive 30% deposit
Min.Order: 1 set.

FAQ

Q:Are you a trading company or a manufacture factory?

A:We are manufacture factory which is professional for foam machinery,mattress machinery.

Q:What is your website?

A:Our website is:www.softlife88.com.cn.

Q: How about after-sales service and machine service?
A: Softlife Mattress Machinery Co.,Ltd will send professional engineers to final customer’s factory for machine installation , commissioning and carefully working training . The final customer will afford related cost .

Q: This is the first time I use this kind of machine, is it easy to operate?
A:We will send you manual and guide video, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways such as wechat ,whatsapp and etc.

Q: If there are some problem occur in my place, how could I do?
A:We could send parts to you if machines have any problem.You can also contact us,then we will guide you until the machines in normal operation.

Q:What is the warranty and quality of this machine?
A:Warranty normally 1 years.

Q: What's the package?
A: PVC Film packaging+wooden case,or PVC Film+container(according to customer’s requirements.

Q: What is the shipping cost from China to my country?
A: It depends on the distance between you and the sea port. We offer door to door service as long as you pay the relevant cost. For the shipping cost you can ask for our advice or from the freight forwarder.

Q: Where is your factory located? How can I get there?
A: Our factory is located in Taishan,Jiangmen City, Guangdong Province,China. You can fly to Baiyun Airport,Guangzhou City,then take a Airport Express to Taishan. We can pick you up at Taishan Airport Express Station.

Q: Is there any after sales service?
A: We have integrated after sales service. Besides our own experienced engineers, we also offer local after sales service through the help of our agents. All this will make you convenient.
