China made mattress covering packing machinery by plastic smoothly chinese mattress machine

Supplier: Softlife Mattress Machinery Co., Limited
Region: Guangdong, China
Contact: Ms Feeling Zhen
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	SOFTLIFE;	Certification:	SGS;
Supply Ability:	20 Set/Sets per Month chinese mattress machine;	Port:	Jiangmen Port;
Max Sewing Speed:	20m/min;	Mattress width:	930-2200mm;
Condition:	New;	Weight:	1500KG;
Applicable Industries:	Hotels,Home Use;	Moving Style:	Frame Moved;
Air pressure:	0.6MPa;	Main body size:	276011701690mm;
Warranty:	1 year;	Packaging Detail:	Pearl wood and PVC film.;
Power(W):	3.4KW;	Filling speed:	20m/min;
Dimension(LWH):	2760x1170x1690mm;	Product Name:	chinese mattress machine;
Arm length:	430mm;	Efficiency:	3 sheets /min;
Place of Origin:	Guangdong China;	Voltage:	380V;
Payment Terms:	L/C,T/T,Western Union;	Mattress thickness:	100-380mm;
Max Sewing Thickness:	3 sheets /min;	After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Input table size:	23602000800mm;	Number of Head:	Single Head;

Product description:

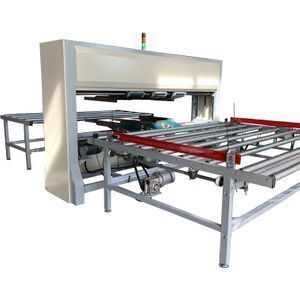

SL-CV-B3 is used for filling the cover of foam mattress and covering other similar mattress products by plastic. Adopted mode of belt conveyor, combined with the input table with motor and the output table without motor to finish the covering process. Both height adjustment and width adjustment are adopted electrical control, and also with the guide device driven by cylinders to make the covering mattress straight on the input table, make sure the mattress can be conveyed into the conveyor belts and cantilever arms straightly and smoothly. The operation of this machine is very simple because of the advanced programmable logical controller and the touch panel. This machine takes the advantages below: stable performance, easy operation, smooth conveying, steady running, high efficiency, low noise and so on.

Technical Specification:

Model	SL-CV-B3
Main body size	2760(L)1170(W)1690(H)(mm)
Input table size	2360(L)2000(W)800(H)(mm)
Output table size	2360(L)1200(W)735(H)(mm)
Mattress thickness	100-380(mm)
Mattress width	930-2200(mm)
Arm length	430mm
Filling speed	20m/min
Total weight	About 1500 kg
Efficiency	3 sheets /min
Total power	3.4 KW
Air pressure	0.6MPa

Payment term:
1.L/C at sight.
2.T/T:30% deposit by T/T ,70% balance by T/T before shipment.
3.Trade term: EXW or FOB Jiangmen.

Packing detail:
1.Pearl wood and PVC film.
2.All of the productions are inspected carefully by QC before delivery.

Delivery time:
By T/T within 30 days after receive 30% deposit
Min.Order: 1 set.

FAQ

Q:Are you a trading company or a manufacture factory?

A:We are manufacture factory which is professional for foam machinery,mattress machinery.

Q:What is your website?

A:Our website is:www.softlife88.com.cn.

Q: How about after-sales service and machine service?
A: Softlife Mattress Machinery Co.,Ltd will send professional engineers to final customer’s factory for machine installation , commissioning and carefully working training . The final customer will afford related cost .

Q: This is the first time I use this kind of machine, is it easy to operate?
A:We will send you manual and guide video, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways such as wechat ,whatsapp and etc.

Q: If there are some problem occur in my place, how could I do?
A:We could send parts to you if machines have any problem.You can also contact us,then we will guide you until the machines in normal operation.

Q:What is the warranty and quality of this machine?
A:Warranty normally 1 years.

Q: What's the package?
A: PVC Film packaging+wooden case,or PVC Film+container(according to customer’s requirements.

Q: What is the shipping cost from China to my country?
A: It depends on the distance between you and the sea port. We offer door to door service as long as you pay the relevant cost. For the shipping cost you can ask for our advice or from the freight forwarder.

Q: Where is your factory located? How can I get there?
A: Our factory is located in Taishan,Jiangmen City, Guangdong Province,China. You can fly to Baiyun Airport,Guangzhou City,then take a Airport Express to Taishan. We can pick you up at Taishan Airport Express Station.

Q: Is there any after sales service?
A: We have integrated after sales service. Besides our own experienced engineers, we also offer local after sales service through the help of our agents. All this will make you convenient.
