Single gross weight: | 0.5 KG; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining; |
Brand Name: | SUMA; | Drag Torque(Ncm): | 6; |
OEM: | Accept; | Selling Units: | Single item; |
Model Number: | CSK20P-2RS; | Weight(kgs): | 0.145; |
Package Type: | single box or as your requirements; | Type: | Special; |
Package Preview: | https://sc01.alicdn.com/kf/H8276df0ee7304288acb2318c7326a0c7p.jpg_640x640.jpg; | Stock: | Rich; |
Height (mm): | 19; | Type: | sprag; |
Delivery: | 7-10 days; | Package: | single box or as your requirements; |
Torque (Nm): | 50; | Single package size: | 19X18X10 cm; |
Port: | Shanghai; |

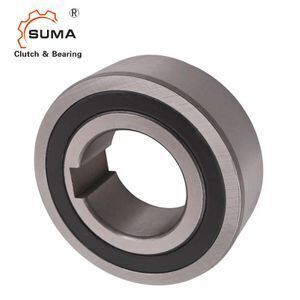

One Way Bearing Manufacturer Sprag Bearing CSK20P-2RS
DATA SHEET
Details | ||
Model | CSK20P-2RS | |
Material | bearing steel | |
Type | sprag | |
Inner Diameter | 20 mm | |
Outer Diameter | 47 mm | |
Weight | 0.145 kg | |
Width | 19 mm | |
Torque | 50 Nm | |
Drag torque | 6 Ncm | |
bearing loads(dynamic) | 9.4 kN | |
bearing loads(static) | 4.46 kN | |
Price terms | FOB,EXW,CIF,CFR | |
Payment term | T/T,western union,paypal |
INTRODUCTION:
Types CSK..P and CSK..PP are sprag type freewheels integrated into 62.. series ball bearings (except size 40).They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.
The use of additional “nylos” type seals is recommen-ded especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
In addition to the basic CSK model, type CSK..P features a keyway on the inner race. For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.
CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.
Different Sizes For Your Reference
Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
dynamic | static | |||||||||||
CSK..P | d | TKN1) | nmax | D | L | b | t | C | C0 | TR | ||
[mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |||
15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |||
17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |||
20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |||
25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |||
30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |||
35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |||
40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |||
CSK..PP | 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 |
17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
40 | – | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
CSK..P-2RS | 12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | ||
15 | – | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | |||
17 | – | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | |||
20 | – | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | |||
25 | – | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | |||
30 | – | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | |||
35 | – | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | |||
40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 |
MOUNTING
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the goods?
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
