ETONM ET-SGM37G Gearbox Motor Reduction 37mm 12 Volt Dc Geared Motor 12v Dc Gear Motor

Supplier: Shenzhen Etonm Motor Co., Limited
Region: Guangdong, China
Contact: Mr Charlie wo
Price: $4.16 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

load speed:	53-260rpm, customized;	Payment Terms:	T/T,paypal;
Commutation:	Brush;	Port:	shenzhen and HK;
Torque:	0.1~15kg.cm;	Usage:	Home Appliance,Other;
torque:	0.19kg.cm-2.1kg.cm, customized;	Supply Ability:	180000 Piece/Pieces per Month sample price: $25;
rotation direction:	CW/CCW running;	Model Number:	ET-SGM37-G;
shaft diameter:	6mm;	weight:	150g;
Protect Feature:	Drip-proof;	Type:	Gear Motor;
Packaging Detail:	plastic film bags, foam, carton packing.;	Product Name:	ET-SGM37G Spur Gear motor;
Speed(RPM):	30-600rpm;	Place of Origin:	Guangdong China;
Construction:	Permanent Magnet;	Efficiency:	65%;
Certification:	CE,ROHS;	Brand Name:	ETONM MOTOR;
Continuous Current(A):	≤0.22A;

Product Descriptions

ET-SGM37G Mini Spur Gear Motor
Model	ET-SGM37G
Motor Voltage(VDC)	3v-24v
Gearbox ratio	10,30,90 or Custom
Gearmotor no load speed(rpm)	30rpm - Custom
Gearmotor rated load speed(rpm)	25-600rpm
Gearmotor rated load torque(kgf.cm)	0.1-15kgf.cm
Gearmotor rated current(A)	<0.22
Gearmotor no load current(A)	<0.07
Housing material	Stainless Steel
Bearing at output shaft	ball bearing or oil-retaining bearing
Certificate	CE,ROHS,ISO
Shaft Shape	D-shaft
Encoder	3PPR, 7PPR, 12PPR
Gear type	Straight gear, or worm gear, or planet construction

Notice: The above specification is just for reference. The gear motor's gear, shaft, speed, ratio, torque and motor type can be customized.

If you can't find the right motor or feel confused, please contact me. Our engineers will help you and evaluate the suitable motor for you.

Products Show

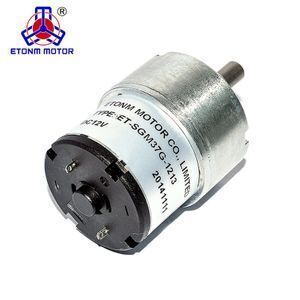

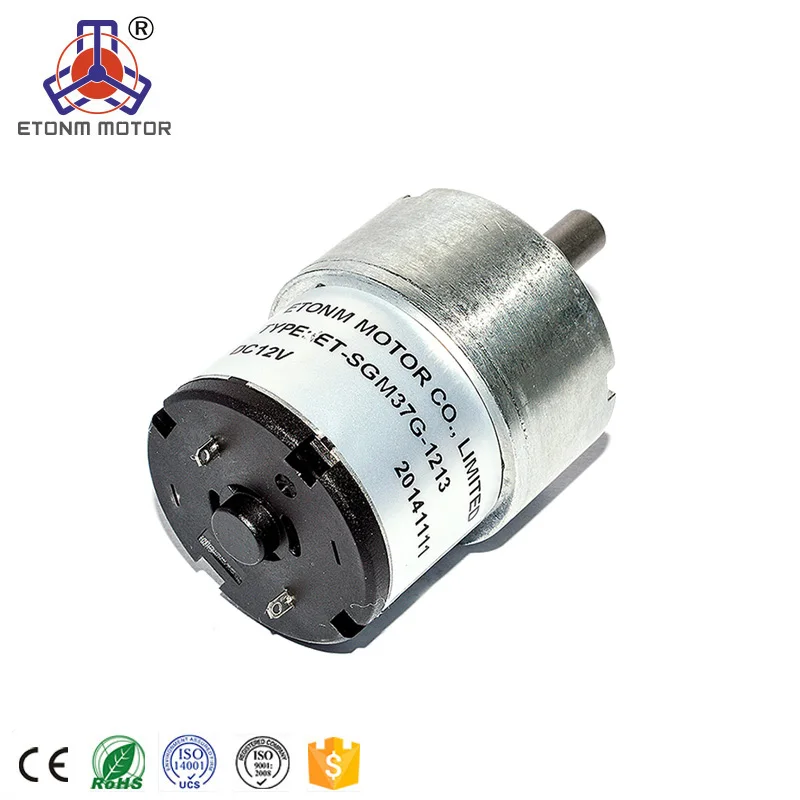

Item Name: Small Spur Metal Gear Motor 6V12V

Model Number: ET-SGM37G

More Products

ET-PGM36

Planetary gearbox motor

ET-SGM51-B

Round gear motor

ET-WGM58A

Worm Gearbox Motor

ET-CGM95C

Flat gearbox motor

ET-SGM12C

Spur gear motor

ET-SGM37A

Spur gear box motor

Our Company

Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. With 13 years experience, we have the perfect team, excellent engineers and modernized production line.

There are 5 series gear motor and 1 series encoder, over 100 types. They are Round Spur Gear Motor, Right Angle Gear Motor, Planetary Gear Motor, Flat Spur Gear Motor, Micro DC Motor and Magnet Encoder. In each series motor, we all have our own strong type.

ET-WGM58A is very popular used on CNC machine. ET-CGM95C, ET-SGM27A, ET-WGM58C are popular for valve. ET-SGM51B is our another strong product. ET-PGM36, ET-PGM32, ET-PGM28A and ET-PGM28B have a excellent performent, because they are planetary gear motor.

For round spur gear motor, ET-SGM12C is used on various industry this year. ET-SGM25A, ET-SGM37A, ET-SGM37D2, ET-SGM37E and ET-SGM37F, because their low price and good performance, many clients buy these type motors. ET-CGM95-A has big torque and high rpm, so lots of customers choose this type motor.

These motors are used on various industries. Home Appliance, Office Equipments, Vending Machine and Bank Equipment, Robotics and Electric Valve, Safe and Security, Sanitary Dispenser. 80% gear motors are exported.

Porduction Workshop

Production Process

Quality control

Certifications

Packing & Shipping

Packing Details : plastic film bags, foam, carton packing.

Delivery Details : 10-30 days after payment.

1. Special protecting packaging

2. Outer Packing 1

3. Outer Packing 2

Service

1: Are you trading company or manufacturer ?

A: We are factory, which has 13 years experience.

2: How long is your delivery time?

A: Generally it is 7-20 working days if the goods are in stock. or it is 15-45 working days if the goods are not in stock, it is according to quantity.

3: What is your terms of payment ?

A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

4: Which shipping way is available?

A: DHL, UPS, FedEx, TNT, EMS, China Post, Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
