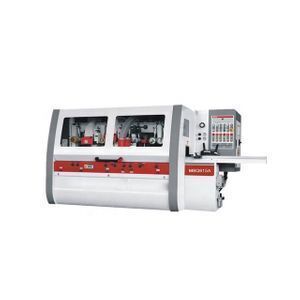

MBQ615A four-side planer with 6 spindles four side moulder

Product details
Dimension(L*W*H):3500*1410*1650mm;Max.working thickness:100mm;
Condition:New;Certification:ISO&CE;
Packaging Detail:Stretch film with wooden case or as your request;Min.working thinkness:8mm;
Spindle speed:6000rpn;Overall dimensions:3500*1410*1650mm;
Power(W):29.25kw/40hp;After-sales Service Provided:Online support;
Place of Origin:Shandong China;Voltage:220v380v;
Supply Ability:100 Set/Sets per Month;Warranty:12 months;
Brand Name:STEELER;Weight:2720kg;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,as your request;Min.working width:25mm;
Weight:2720kg;Max.working width:150mm;
Spindle amounts:6 pcs;Feed speed:4-18m/min;
Port:QINGDAO SHANGHAI GUANGZHOU or as your request;Packing dimensions:3700x1610x1835mm;
Applicable Industries:Building Material Shops,Manufacturing Plant;
Hot Sale Products

Double Side Wood Planer

Horizontal Band Sawmill

Finger Joint Assembler

Four Side Wood Planer

MBQ615A four-side planer with 6 spindles four side moulder

Product Description

1.Application:

Professional solution for different wood mouldings, like wood door, door frame, floor, furniture etc.Can have different spindle distribution to work different mouldings.



2.Features:

1.This adopts frequency conversion material feeding,material feeding speed ranges from 6-35m/min.

2.Each main shaft is driven by independent electric motor,cutting force is powerful.

3.Main shaft is adjustable to focus on the front,operation is convenient.

4.Hard chrome plating worktable is durable.

5.Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.

6.Multi-group drive rollers improve feeding efficiency.

7.Adopts central charging system ,features convenience and promptness.

8.International brands electrical parts are applied for good stability.

9.On the horizontal axis with the front support means to improve the rigidity of the spindle.

10.Spare parts are thick and solid to maintain high precision,high stability and high reliability.

11.Pneumatic compressed feeding roller is applied ,the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.

12.Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.



3.Advantage:

Greatly improve the processing capacity and production efficiency by shortening the auxiliary working time.In addition, it reduces the number of traditional machine tools, saves the number of operators and reduces the floor area of the workshop.

1. Improve processing capacity and production efficiency.

Automatic planer is a kind of typical process more centralized knife combined machine tool, its focus on the traditional process of flat plane, pressure, shaft under vertical milling machine and other machine tools to complete more than processing, by shortening work time greatly improve the processing capacity and production efficiency.In addition, it reduces the number of traditional machine tools, saves the number of operators and reduces the floor area of the workshop.

2. mprove wood yield.

All round is a type of processing, the workpiece can be through a processing to the required size, cross section shape and surface finish requirements, avoids many machine tools repeated process every time have to set aside a certain cutting dosage, to ensure that eliminate the feed mechanism of multiple loss caused by indentation.

3. Improve product quality and processing precision.

The four-sided planing process completes multiple processes at one time to reduce the precision accumulated error caused by the clamping of traditional machine tools.Because the four-sided planer adopts mechanical continuous forced compression feed, the workpiece has little pulsation and displacement in the cutting process.Feeding speed can be according to the processed wood material and the size of the cutting quantity of frequency conversion and stepless speed regulation, from a certain extent, reduce the quality defects caused by excessive cutting parameter, improve the quality of the products and the processing precision.

4. Expand the technological range and increase the product variety.

The machining of the four-sided planer improves the workpiece's required flatness and surface finish, and provides the necessary conditions for the subsequent working procedure to ensure the machining precision.Excluding all can undertake outside the plane processing, also can undertake tenon type, slotting, linear, surface processing and multiple cutting processing, such as by plane, this is the traditional flat unable to realize.Under the premise of enterprise without any increase in machine tool, which can increase the varieties of products, and reduce machine purchase inputs, reducing the area of the workshop, from a certain extent, relative to reduce the cost of the product, improve the production efficiency of enterprises.

5. Safe and environment-friendly.

The four-side planer is equipped with safety protective cover, which can effectively avoid wood chip splash and isolation noise, and improve the safety protection and environmental hygiene of the operator.



4.Technical Parameters:

+

Model

MBQ615A

Max.working width

150mm

Min.working width

25mm

Max.working thickness

100mm

Min.working thinkness

8mm

Spindle amounts

6 pcs

Spindle speed

6000rpn

Feed speed

4-18m/min

Spindle diameter

φ40mm

Cutter diameter First bottom cutter

φ125

Right vertical cutter

φ125-φ160

Left vertical cutter

φ125-φ160

First top cutter

φ125-φ160

Second top cutter

φ125-φ160

Second bottom spindle

φ125-φ160

Motor power First bottom cutter

4kw/5.5hp

Right vertical cutter

4kw/5.5hp

Left vertical cutter

4kw/5.5hp

Fist top cutter

5.5kw/7.5hp

Second top cutter

4kw/5.5hp

Second bottom cutter

4kw/5.5hp

Feed motor

3kw/4hp

Beam elevation

0.75kw/1hp

Total power

29.25kw/40hp

Feeding wheel Dia.

Φ120mm

Suction hood Dia.

φ125mm

Overall dimensions

3500*1410*1650mm

Packing dimensions

3700x1610x1835mm

Weight

2720kg

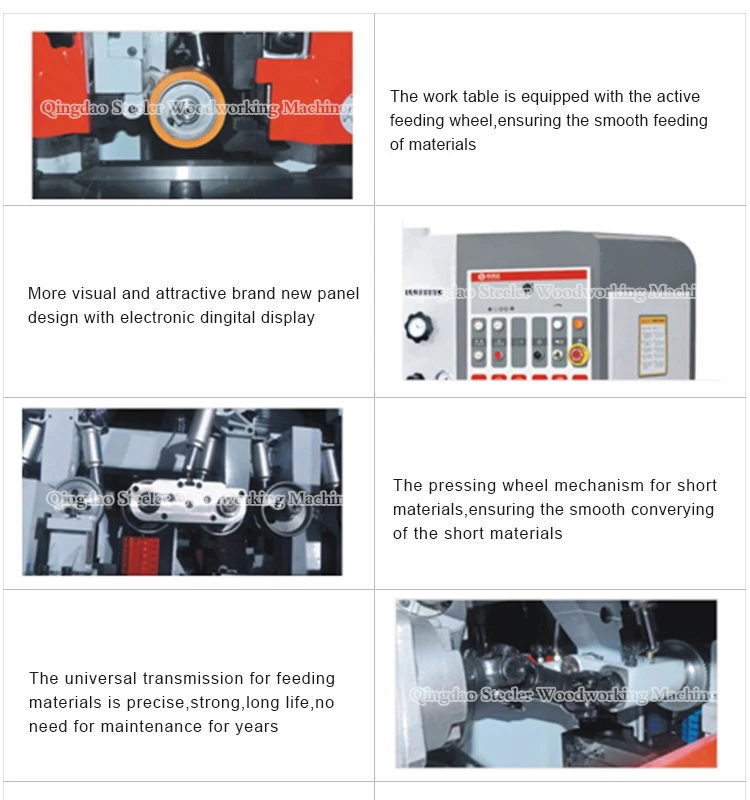

Detailed Images

Finshed Products

Packing and Service

1.Delivery and Package:

We will take care of your machinery packages well like picture show.

· Our workers will make sure your machine clean before package.

·We will add stretchy film for the whole machine and spare parts for delicate protection.

·We will make export standard strong Wooden box case package as your request.

2.Guarantee:

The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . more than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.

3. Technical support:

·Technical support by Phone, Email ,Wechat, WhatsApp and Skype, 24 hours online.

· We provide English version manual.

· Engineer available to service machinery overseas.

4. After sales services:

Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.

If you don't know how to use the machine,we will offer you free training until you can use machine freely.If there is still have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.
