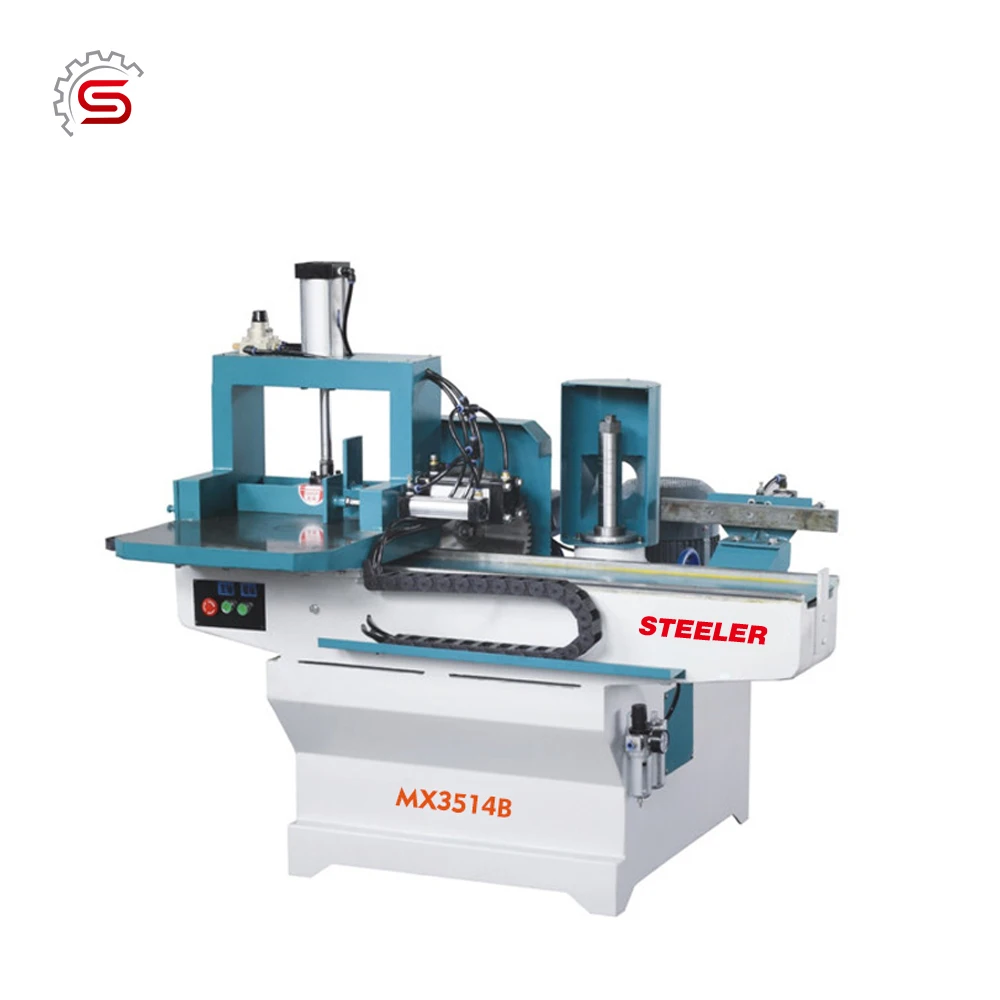

MX3514B Manual Finger Joint Assembler Woodworking Machine for sale

Supplier: Qingdao Steeler Woodworking Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Mike Lee
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Finger cutting knife diam:	160mm;	Dimension(LWH):	150014101460mm;
Warranty:	1 Year;	Condition:	New;
Certification:	CE ISO;	Supply Ability:	100 Set/Sets per Month MX3514B Manual Finger Joint Assembler Woodworking Machine for sa;
Max working width:	400mm;	After-sales Service Provided:	Online support;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;	Voltage:	380V;
Port:	Qingdao/Shanghai/Guangzhou/as your request;	Cut off saw power:	2.2kw;
Cut off saw speed:	2840r/min;	Weight (KG):	550 KG;
Cut off saw shaft diameter:	25.4mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,OR AS YOUR REQUEST;
Local Service Location:	United Kingdom,Brazil;	Shaper spindle speed:	7000r/min;
Shaper spindle diameter:	50mm;	Power (kW):	7.5;
Place of Origin:	Shandong China;	Key Selling Points:	Low Maintenance Cost;
Power Source:	Electrical;	Worktable size:	650*540mm;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ,Furniture Factory;	Max.working height:	140mm;
Air Pressure:	0.4-0.6mpa;	Packaging Detail:	By stretch film with wooden case or as your request;
Cut off saw diameter:	305mm;	Brand Name:	STEELER;
Showroom Location:	United Kingdom,Brazil;

Hot sale products

CNC Router

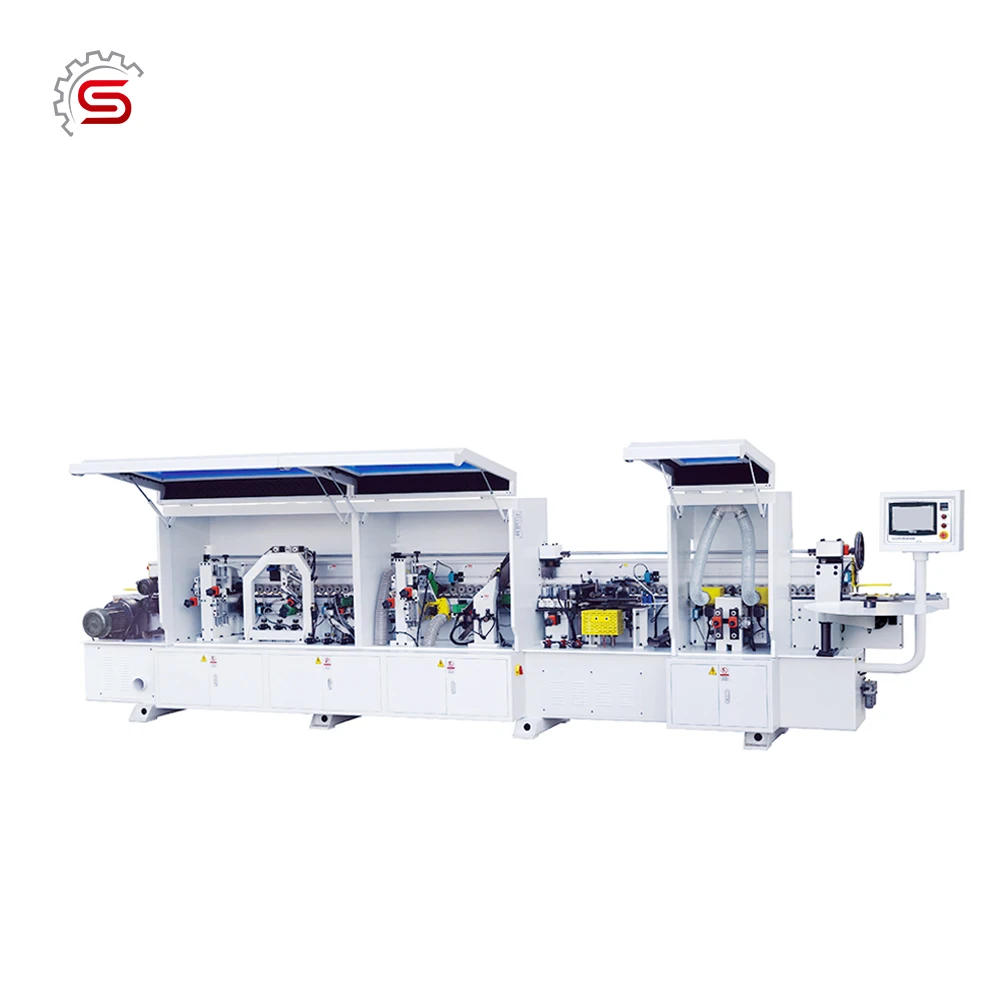

Auto Edge Banding Machine

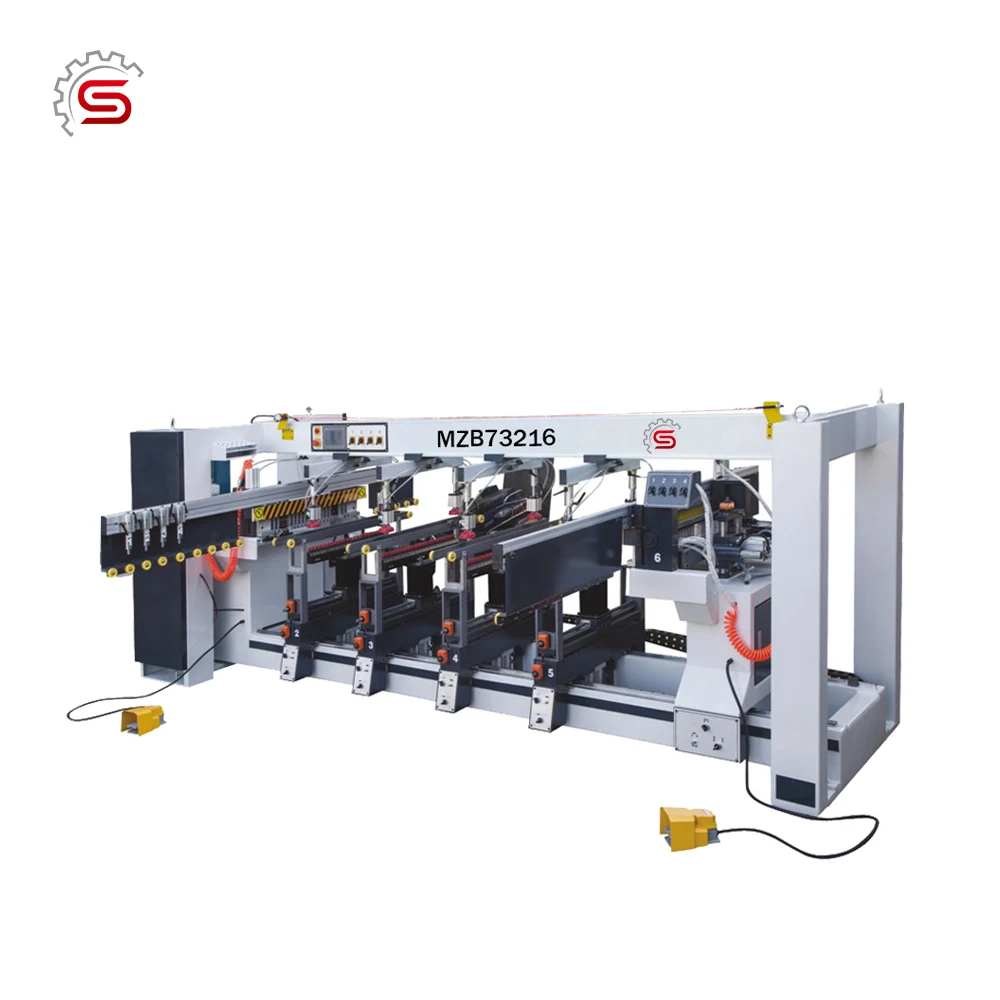

Drilling Machine

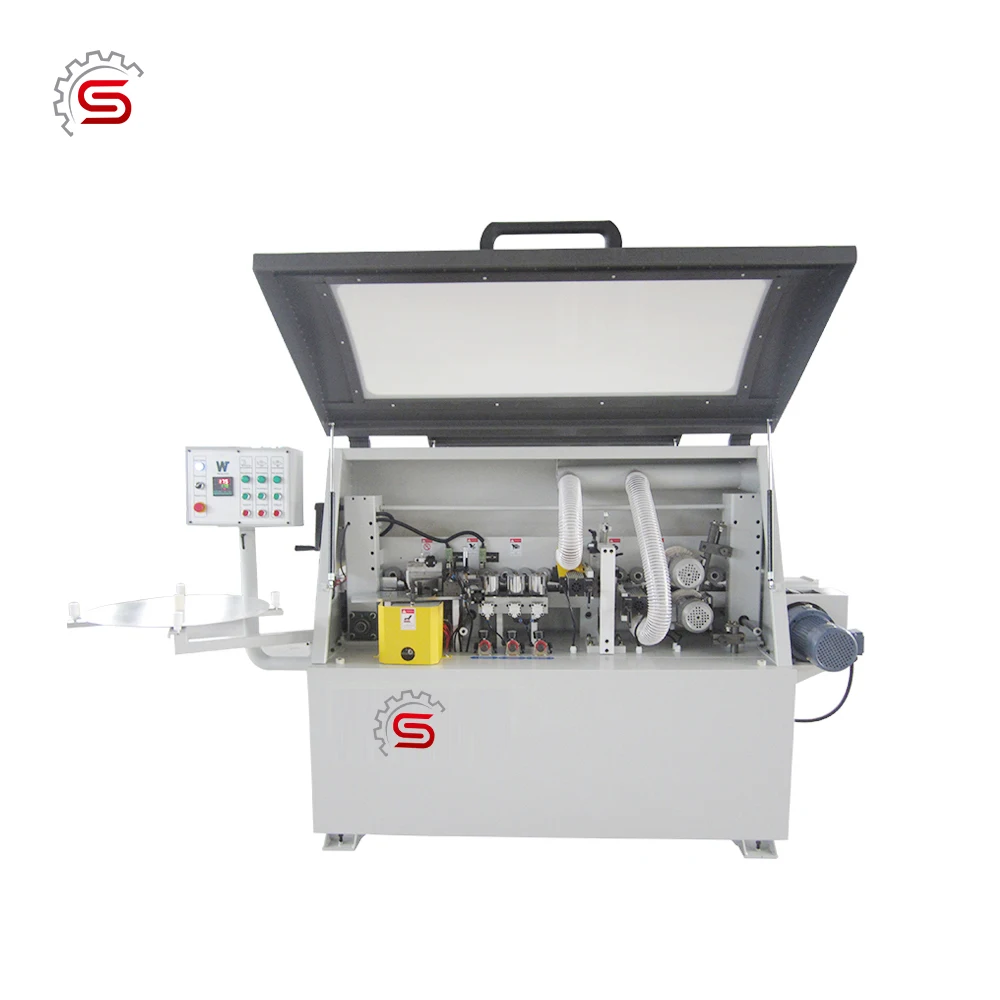

Semiauto Edge Bander

MX3514B Manual Finger Joint Assembler Woodworking Machine for sale

Product Description

Application:

Finger joint shaper machine is mainly used for combing of medium and short wood.It is a mechanical processing equipment to improve the utilization rate of wood and the performance of wood.It is widely used in wood processing industry, especially suitable for construction company

Features:

1. The high power main motor makes the tooth opening process easier and more efficient

2.Its unique frame design structure makes the machine run more smoothly without vibration

3.Double cylinder is adopted for side pressure to ensure the process of gear opening is safer and more reliable.

4.Steel wear - resistant linear guide rail lengthens service life by 2 times, and wood processing precision is higher.

5. Machine tool bearing is manufactured by well-known enterprises in China, which ensures the accuracy and stability of machine tool operation.

Advantage:

1. High utilization rate of wood, saving cost.

2.The machine is of high cost performance, especially suitable for small and medium-sized production enterprises.

3. This machine is the preferred equipment for the processing and reuse of building quadrangle wood. The interface strength after adhesive is greater than that of wood itself.

Technical Parameters:

Worktable size			650x540mm
Max working width			400mm
Max.working height			140mm
Shaper spindle diameter			Ø50mm
Finger cutting knife diameter			Ø160mm
Shaper spindle speed			7000r/min
Cut off saw speed			2840r/min
Cut off saw shaft diameter			Ø25.4mm
Cut off saw diameter			Ø305mm
Cut off saw power			2.2kw
Shaper spindle power			7.5kw
Working air pressure			0.4-0.6mpa
Overall size			1500×1410×1460mm
Net weight			550kgs

Detailed Images

Finished Products

Packing &Service

1.Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
