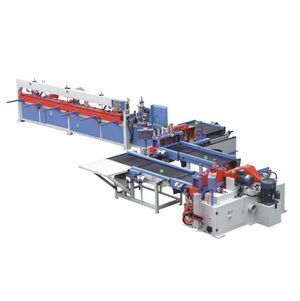

China MHB1525LX600II Finger joint shaper with scoring saw and glue spreader

Supplier: Qingdao Steeler Woodworking Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Mike Lee
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Air Pressure:	0.5-0.8Mpa;	Voltage:	380V 50Hz 3ph;
Place of Origin:	Shandong China;	Brand Name:	STEELER;
Main saw blade size:	255mm;	Shaper blade diameter:	160mm;
Warranty:	12 Months;	Supply Ability:	100 Set/Sets per Month;
Dimension(LWH):	966044004220mm;	Port:	QINGDAO SHANGHAI GUANGZHOU or as your request;
Cutter speed:	6000r/min;	Condition:	New;
Packaging Detail:	Stretch film with wooden case or as your requires;	After-sales Service Provided:	Online support;
Table Size(LxW):	850x600mm;	Assembler Blade speed:	3700r/min;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,As your required;	Min working thickness:	150x20x30mm;
Max assembled size(LWT):	6200x150x80mm;	Weight:	12000kg;
Certification:	CE ISO;	After-sales Service Provided:	Engineers available to service machinery overseas;
Power(W):	41.5kw;	Max working size(LxWxH):	850x80x150mm;

Hot Sales Products

Wide Belt Sanding Machine

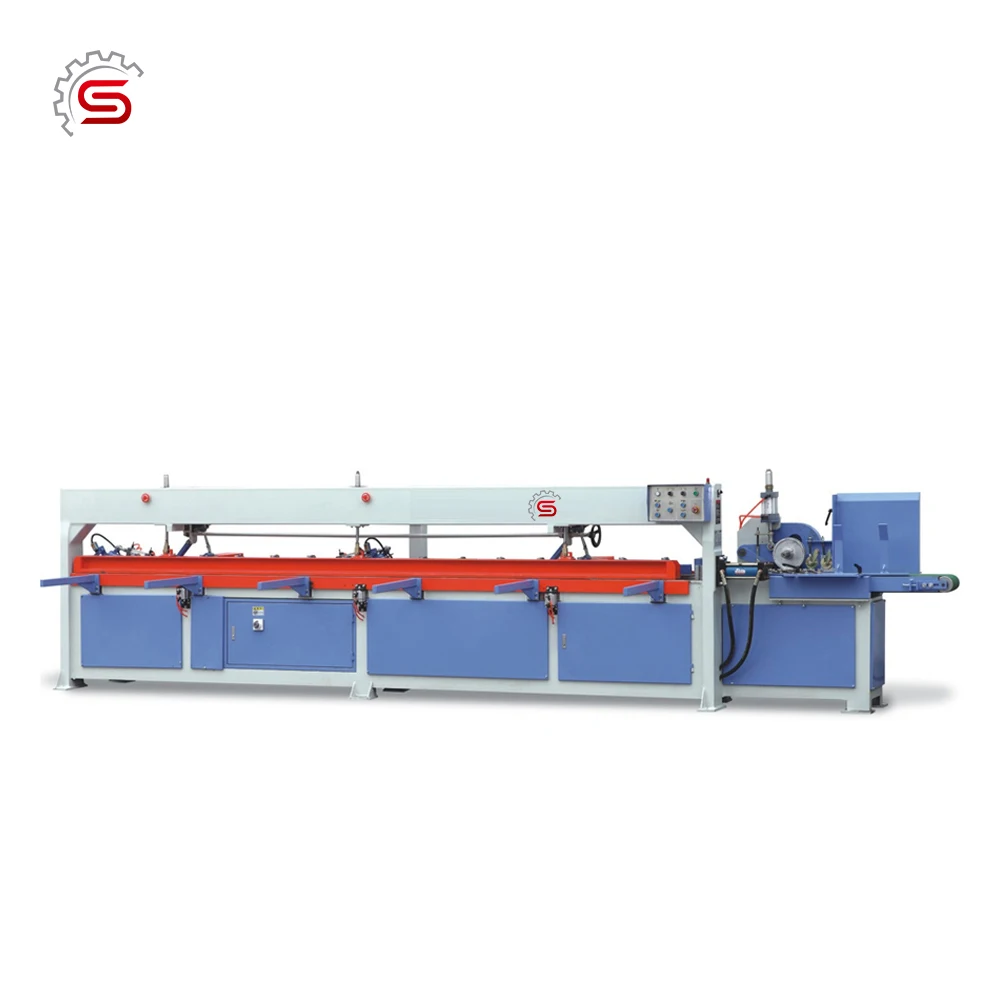

Finger Joint Assembler

Woodworking Thicknesser

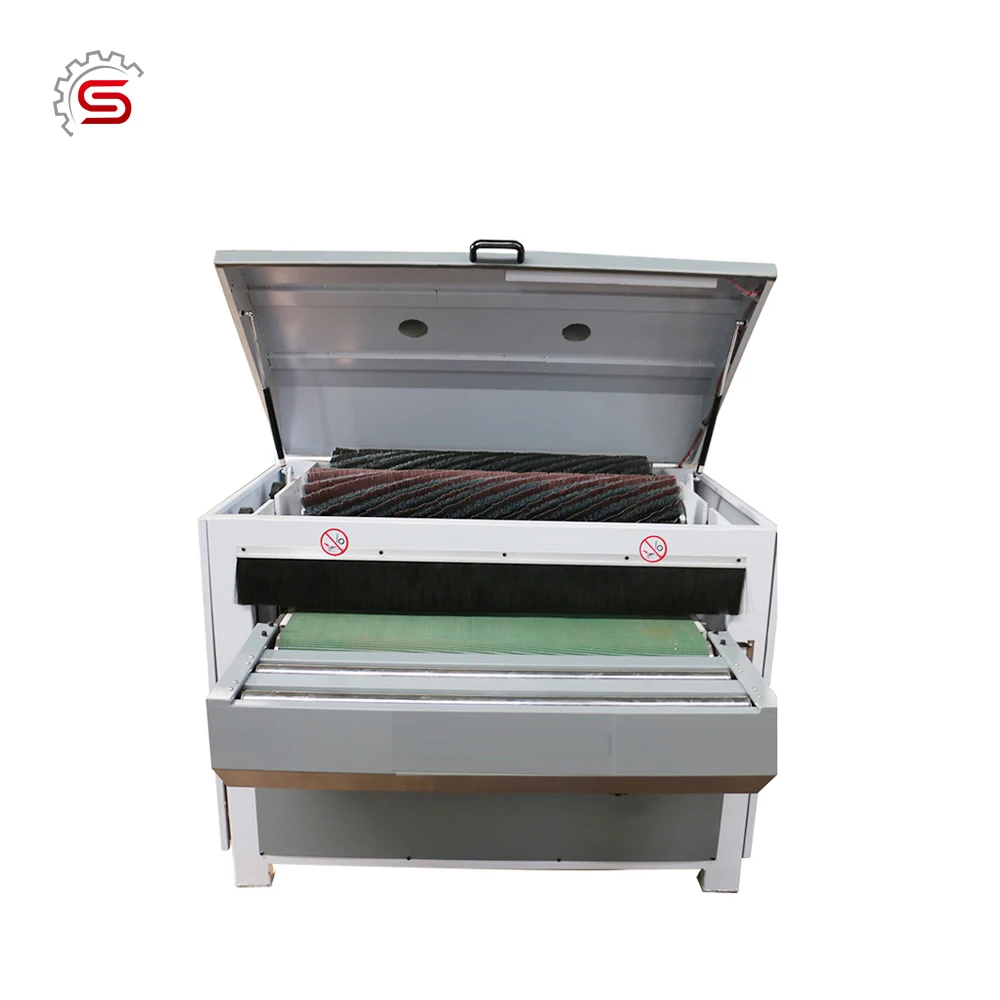

Drum Sander

China MHB1525LX600II Finger joint shaper with scoring saw and glue spreader

Product Description

Application:

This machine used for waste wood recycling, will have an ear on construction sites and other regions, waste wood to open after the tooth comb, the glue wood machine pressure, can be achieved using length, this process of regeneration, wood can be used as a new wood, for the world to save energy and cost savings for the enterprise.

Features:

1.Guide rail of finger joint shaper’s conveyor is japan precision linear guide rail to gurantee the shaping accuracy .

2.The design for finger joint shaper is double blades+tooth-tenon knife assembly to provide high precision.

3.The conveyor table of finger joint shaper adopts German pneumatic hydraulic conveyor system to control bakc and forth ,smoothly,low maintenance,high quality .

4.The second push part of finger joint assembler adopts long+short double pushing board design,by this kind of structure ,it can assemble very short workpiece to reduce the cost .

5.Whole machine is conveniently operated by PLC Central integrated programmable controller.

Advantage:

1.Save wood and material cost

2. Semi-automatic production line greatly improves the working efficiency of workers and saves labor costs

3.Two people of the complete set of machinery can complete the operation, with low safety risk and low accident rate of work-related injury. In addition, the safety protection measures of the wood receiving machine are in place, making the whole operation safe and reliable.

Technical Parameters:

Product line includes MXZ3515, MXZ3515T and MHB1560

Model	MXZ3515 Finger joint shaper	MXZ3515T Finger joint shaper with automatic gluing device
Table Size(LxW)	850x600mm	850x600mm
Max working size(LxWxH)	850x80x150mm	850x80x150mm
Min working thickness	150x20x30mm	150x20x30mm
Cutter speed	6000r/min	6000r/min
Draw saw speed	5600r/min	5600r/min
Trimming saw speed	5000r/min	5000r/min
Shaper blade diameter	160mm	160mm
Shaper spindle diameter	70mm	70mm
Main saw blade size	255mm	255mm
Cutter motor power	11kw	11kw
Saw motor power	5.5kw	5.5kw
Feeder motor power	0.375kw	0.375kw
Total power	16.12kw	16.87kw
Working air pressure	0.5-0.8Mpa	0.5-0.8Mpa
Net weight	2000kg	2200kg
Overall diamensions	2380×1700×1400mm	2580×1700×1400mm

Model	MHB1560 Finger joint assembler
Max.assembled size	6200x150x80mm
Max.working length one time	6200mm
Max.working width	150mm
Max.working thickness	80mm
Min.working length	2000 mm
Min.working width	30mm
Min.working thickness	20mm
Blade speed	3700r/min
Saw blade dia	355 mm
Saw blade power	3kw
Oil pump motor power	5.5kw
Working air pressure	0.5-0.8Mpa
Max.thrust for oil pressure	7800Kg
Max.output	25m/min
Overall diamensions	4700×1000×1420mm

Detailed picture

Finish products

Packing & Service

1.Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
4. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
