MHB1546 Woodworking Automatic Finger Joint Assembler /Finger Joint Machine

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,or as your request;Power(W):7.45kw;
Warranty:1 Year;Weight:7800KG;
Max thrust for oil:7800kg;Voltage:380V;
Packaging Detail:Stretch film or as your request;After-sales Service Provided:Field maintenance and repair service;
Brand Name:STEELER;Size of working table:4700*50mm;
Overall dimensions(LxWxH):6300*1600*1500mm;Place of Origin:Shandong China;
Saw blade spindle power:3.0kw;Port:Qingdao Guangzhou or as your request;
Oil pump motor power:2.2kw;Applicable Industries:wooden furniture;
Feeding motor power:1.5kw;Max assembly length:4600mm;
Max output capacity:4600*150*80mm;Dimension(L*W*H):6300*1600*1500mm;
Feeding speed:30-60m/min;Supply Ability:100 Set/Sets per Month;
Certification:ISO/CE;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;
Hot sales products

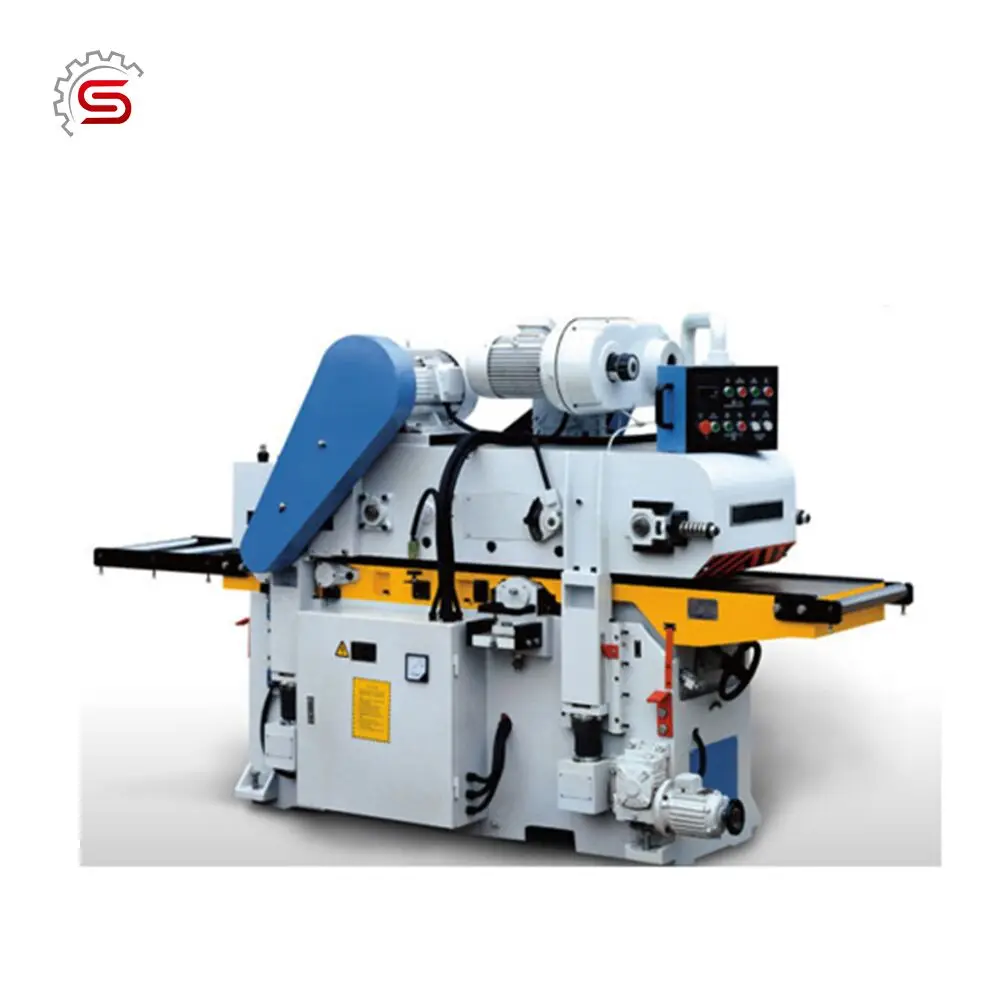

 Double sides planer

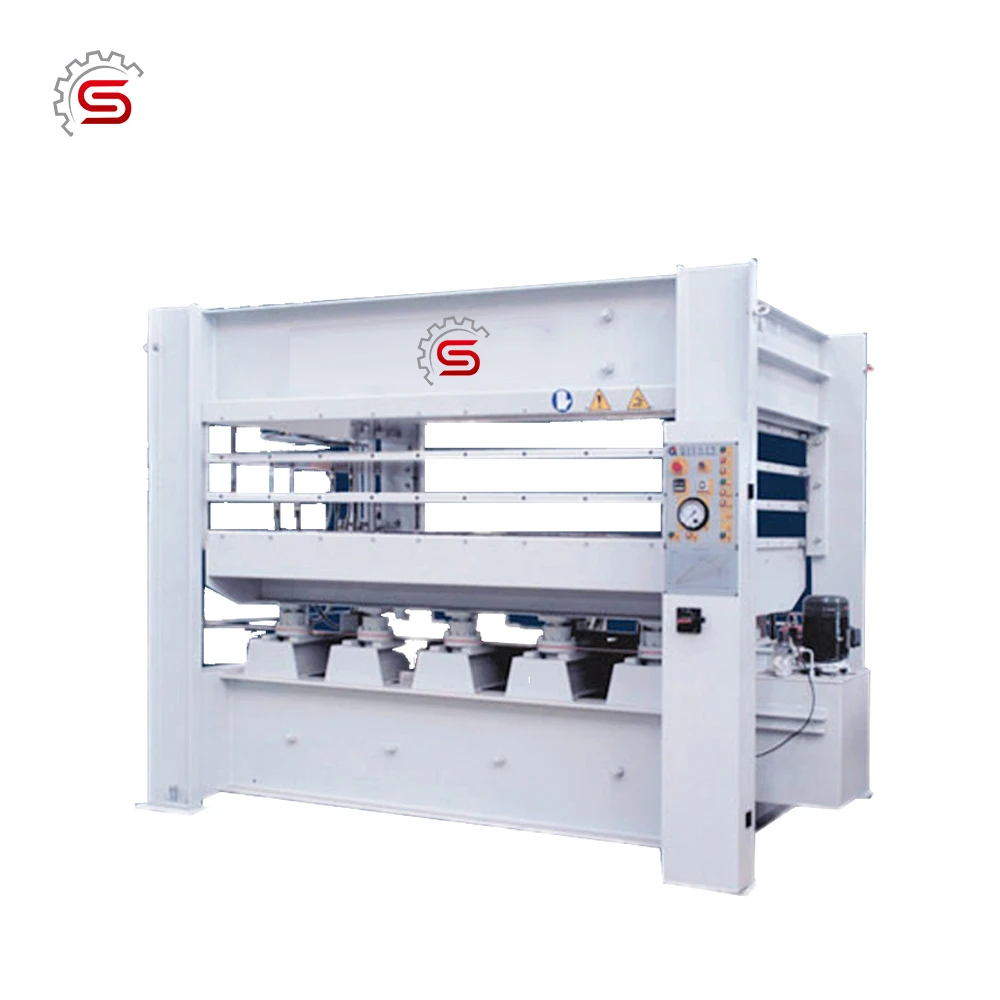

160TON Hot press machine

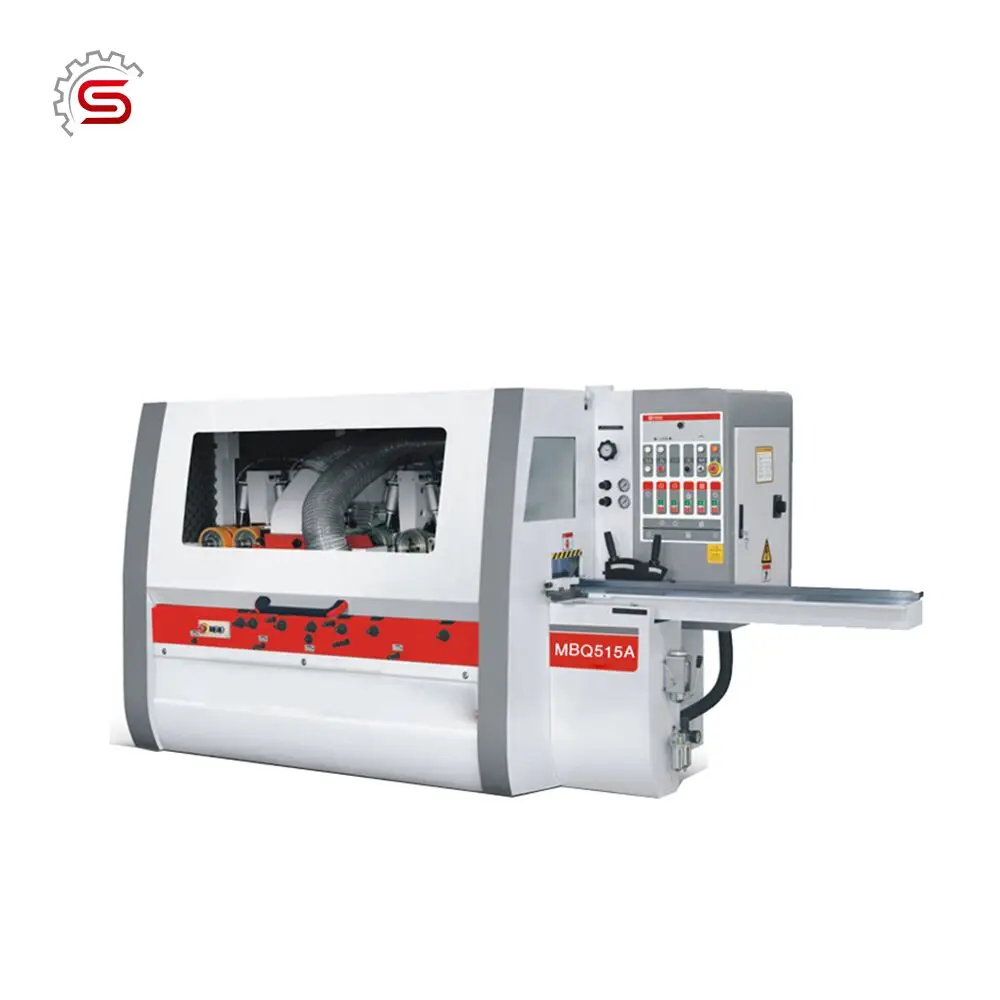

Four sides planer

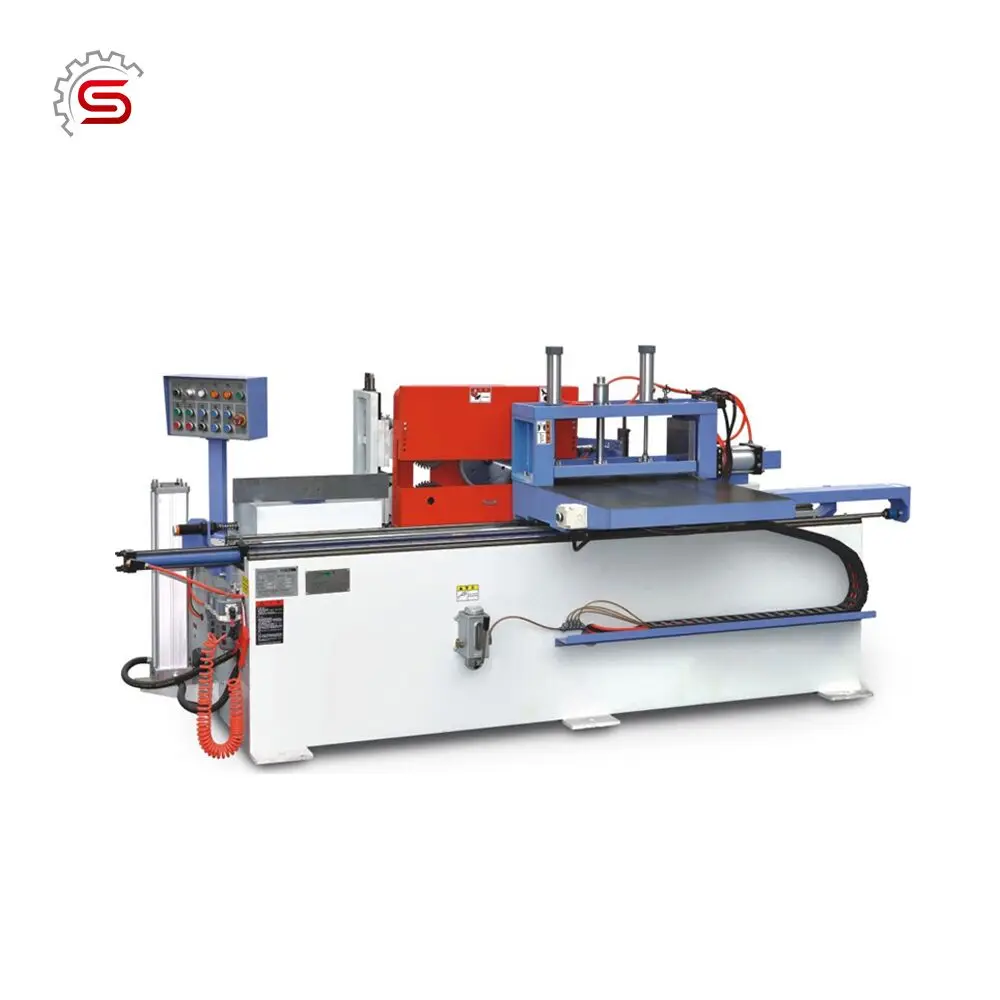

Automatic finger joint shaper

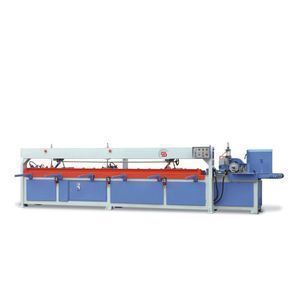

MHB1546 Woodworking Automatic Finger Joint Assembler /Finger Joint Machine

Product Description





Application:

This product is suitable for the reprocessing of disused engineering wood cubes, grooving operations, and the reprocessing of disused timber on the construction site.



Features:

1. Fixed length, lengthwise connection, automatic truncation of ideal length.Reduce the intensity of labor.

2. The operation mode of automatic feeding - butt forming - automatic discharging is simple and efficient

3. High quality motor makes the power supply sufficient and the service time longer



Advantage:

1. It can improve the utilization rate of wood, reduce the waste of resources, and achieve the purpose of long-term use of short materials and optimal use of inferior materials.

2.They are more convenient and simpler than most machines on the market.One person can operate it and save labor costs for the enterprise

3. The spliced product has high strength and can be used as new wood

4. High efficiency and precision of splicing, saving materials, saving raw materials cost for enterprises.



Technical Parameters:

+

Max assembly length

4600mm

Size of working table

4700*500mm

Saw blade spindle power

3.0kw

Oil pump motor power

2.2kw

Max thrust for oil pressure

7800kg

Feeding speed

30-60m/min

Feeding motor power

1.5kw

Max output capacity

4600*150*80mm

Overall dimensions(LxWxH)

6300*1600*1500mm

Weight

1900kg

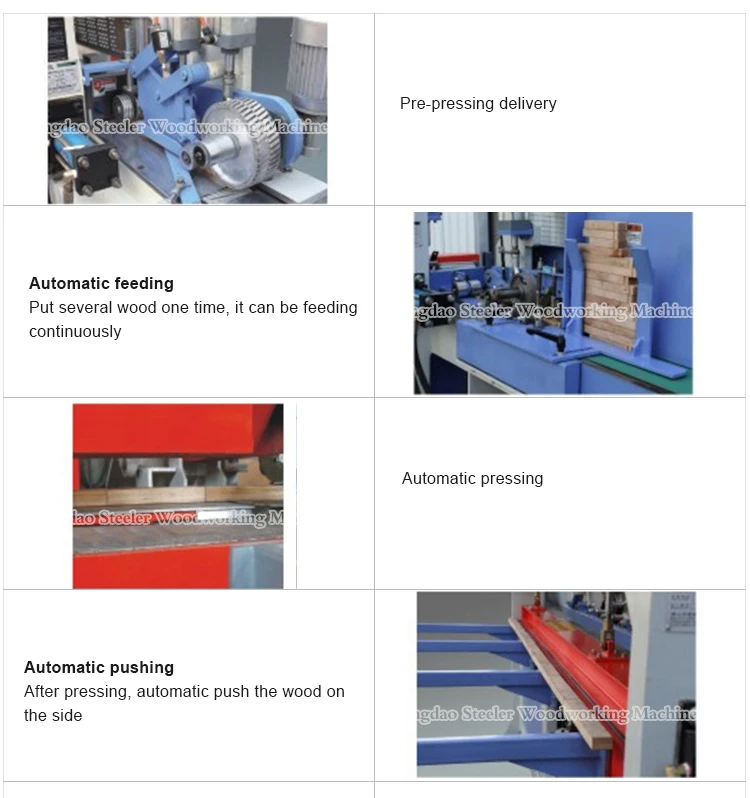

Detailed Images



Finished Products



Packing &Service

1.Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
