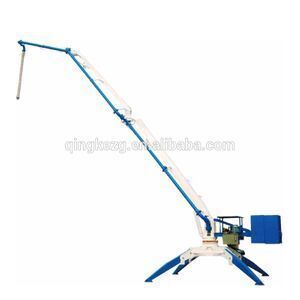

HGY15 15m Mobile concrete placing boom/Concrete Spreader

Supplier: Qingdao Qingke Heavy Industry Co., Ltd.
Region: Shandong, China
Contact: Ms. Cassie Lee
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Boom length:	15m;	Supply Ability:	200 Set/Sets per Month;
Product Name:	Concrete Boom Placer;	Function:	construction buildings;
Boom structure:	3Z;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;
Dimension(LWH):	8900mm4000mm2585mm;	Keyword:	Mobile concrete placing boom/Concrete Spreader;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Different areas in different countries maybe have different types of payment;	Weight:	5.5kg;
Product:	Placing boom;	Warranty:	1 Year;
Power:	5.5kw;	Type:	Full Hydraulic;
Voltage:	380V/50HZ;	Port:	QINGDAO;
Certification:	CE/ISO9001;	Brand Name:	CONELE;
Place of Origin:	Shandong China (Mainland);	Packaging Detail:	Woodern box package 40 foot container:1180021302180mm is just for 1 set Mobile concrete placing boom/Concrete Spreader;
Model:	HGY15;	Power(W):	5.5kw;

Product Description

Mobile concrete placing boom/Concrete Spreader

1.The boom adopts the "R" -shaped three-section folding arm, which can realize 360 ° full rotation and at the same time to complete the pitch fluctuation and the development of the boom, the folding arm movement, in the length of the boom to achieve three-dimensional space of all-round casting, No pouring dead ends, can easily achieve the wall, pipe, column, pile and other vertical structure of concrete pouring.

2.Boom of the folding, pitching, rotation are driven by the hydraulic, through the button to control the working of machine.

3. We have the fixed one and the mobile one to meet your different requests.

Item	HGY13	HGY15	HGY17
Horizontal reach	13m	15m	17m
Rotation	360°	360°	360°
Power	4kw	4kw	5.5kw
Boom Structure	3R	3R	3R
Control type	Wireless remote/Panel Control
Weight	2.7t	3.23t	5t
With counterweight	4.3t	5.43t	7.2t

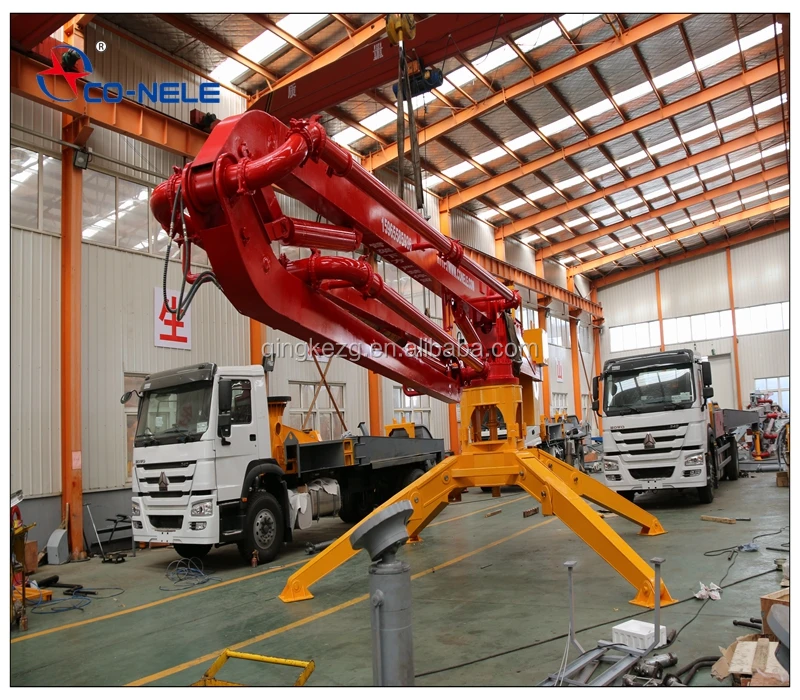

HGY13 concrete spider

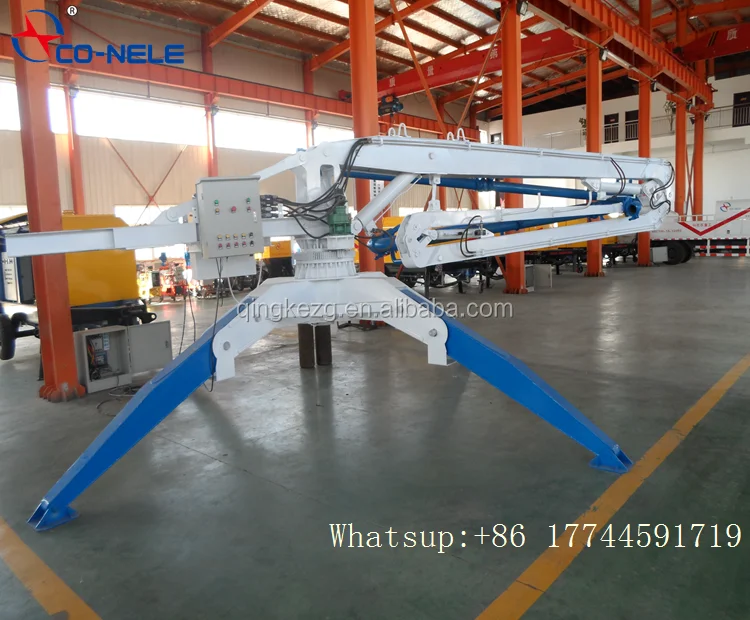

HGY15 concrete spider

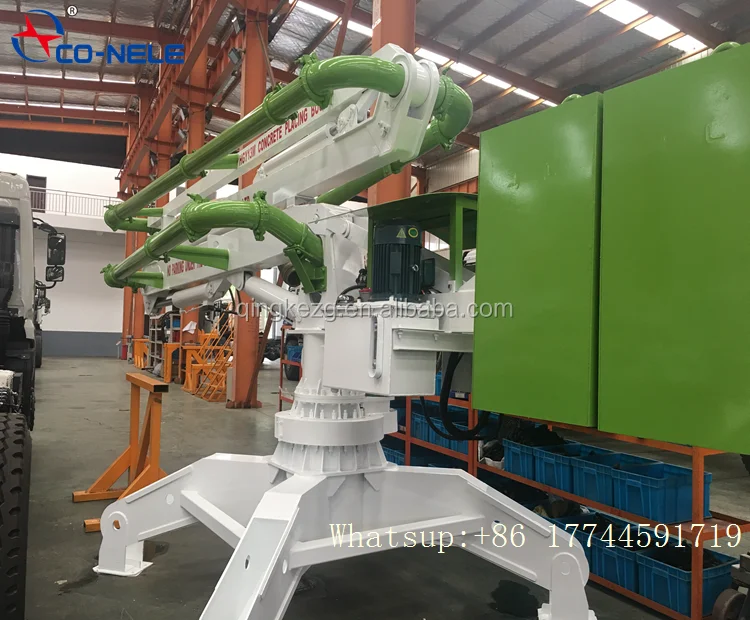

HGY17 Mobile Concrete Placing Boom

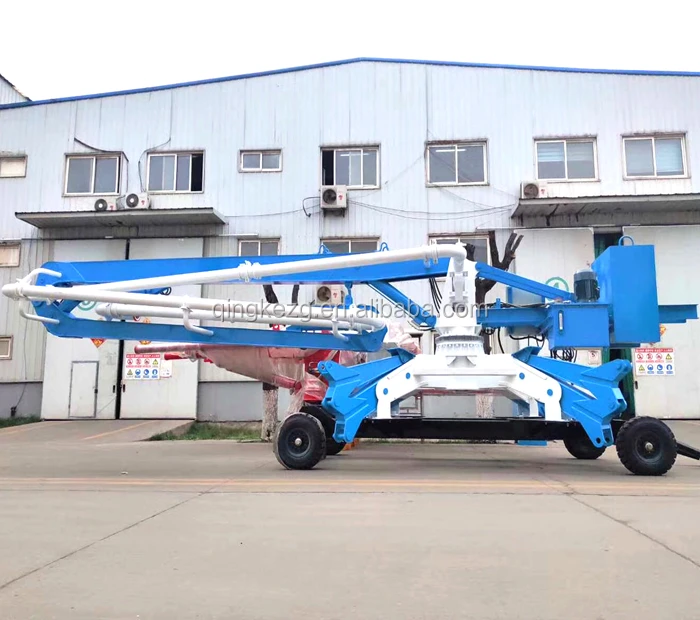

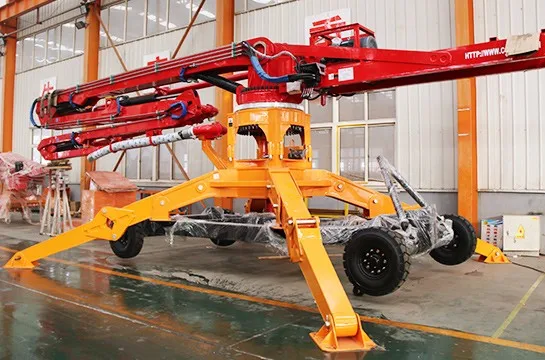

HGY15 Mobile Concrete Distributor with wheel

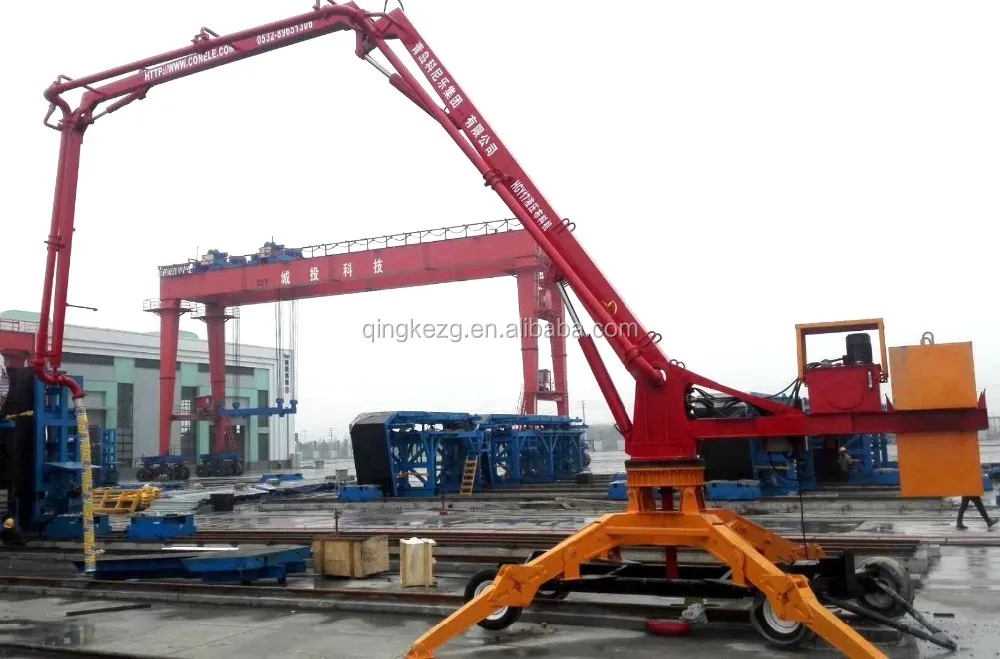

HGY21 Mobile Concrete Placing Boom with wheel

Cases

HGY13 Mobile concrete placing boom/Concrete Spreader

The HGY13 is well fit for the construction of different floors and for complicated jobsites without being influenced by the size and shape of floors.

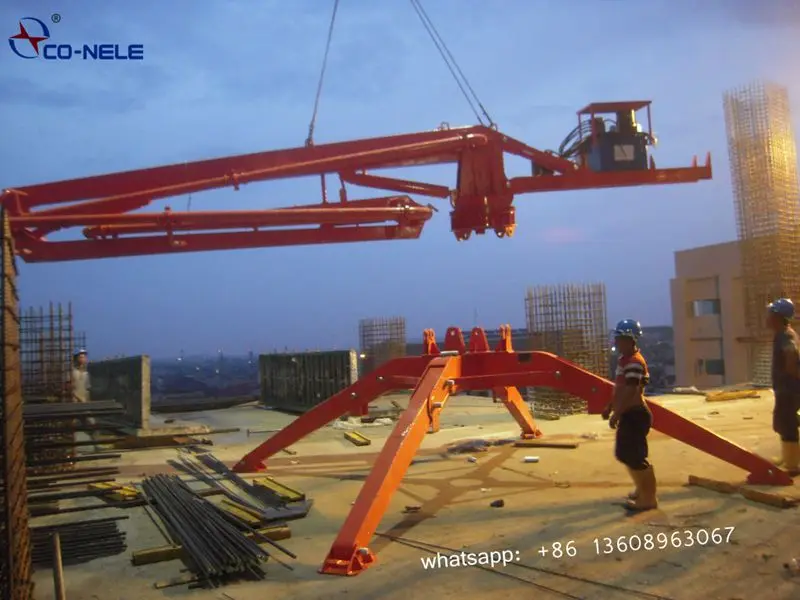

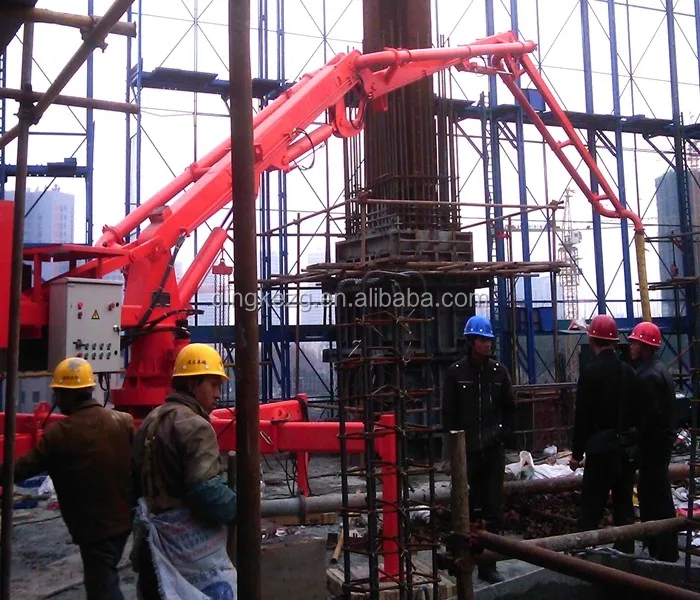

HGY15 Pouring concrete on building floor

The placing boom has a Z-shaped boom assembly with three foldable sections, which can swing through 360 degrees while luffing, folding/unfolding, thus allowing it to place concrete to form walls, pipes, columns, piles and other vertical structures without confined placement areas.

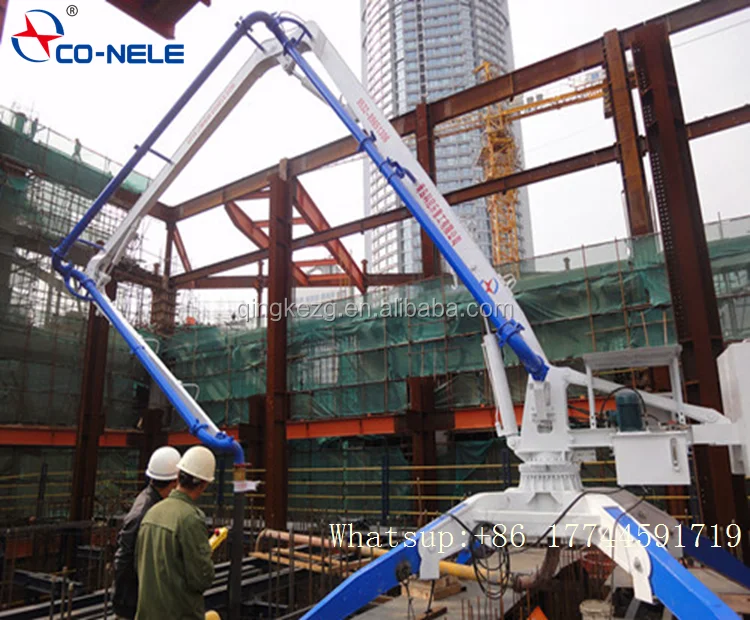

HGY17 Mobile concrete placing boom

The boom assembly's luffing, folding/unfolding and swinging are carried out hydraulically with buttons. The hydraulic and electrical system feature overload protectors, flow controls, alarms, phase sequence protectors and so on, which ensures the placing boom to have reliable performance, easy and smooth operation, and high safety.

13m15m,17m Mobile Concrete distributor

Featuring compact structure and lightweight, the placing boom can be completely lifted and transferred to any suitable places for concrete placement, such as floors, platforms, simply-structured racks or even trailers. It does not need to be fixed while working. In addition, it can be lifted off the placement sites when it is not needed, which leads to no disturbance to other jobs and easy maintenance.

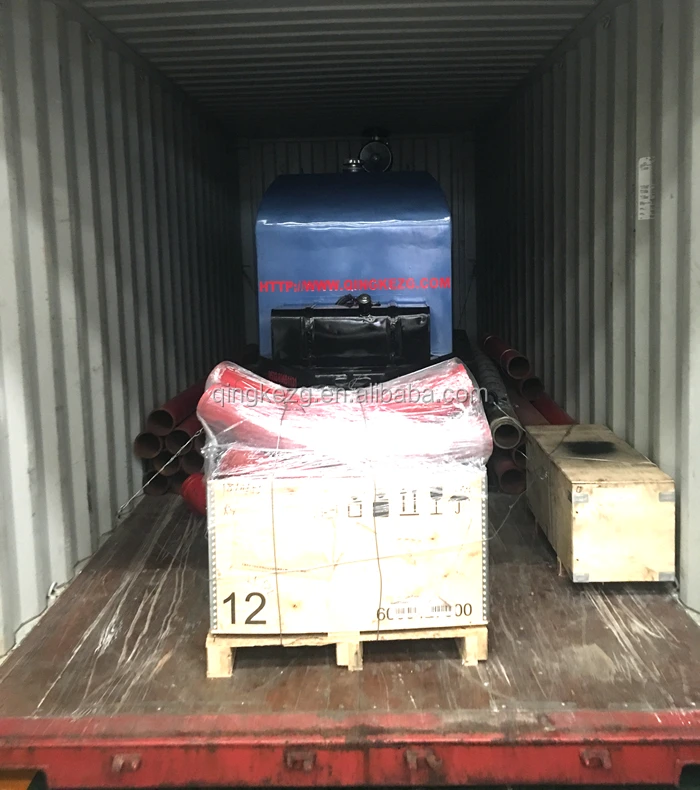

Packing & Shipping

XBS and HBX Serious cocnrete pump with pipes load by 1*20GP.

Spare parts packed by wooden box.

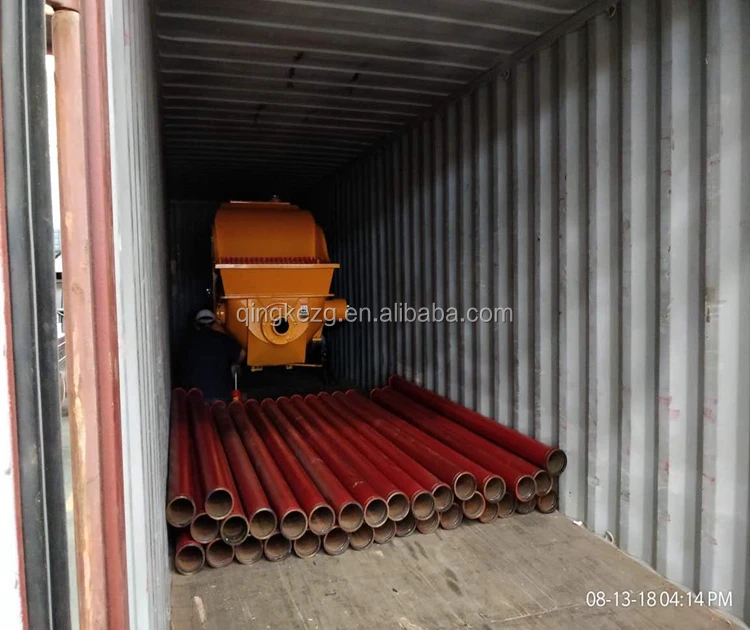

HBT Serious cocnrete pump with pipes load by 1*40GP.
Spare parts packed by wooden box.

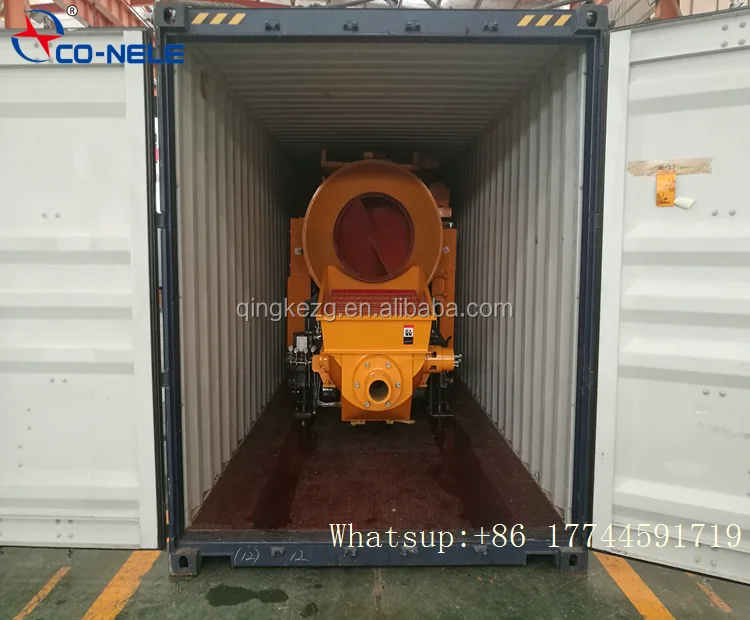

JBT Serious cocnrete mixer pump with pipes load by 1*40HQ ,biggest can load 2 sets.
Spare parts packed by wooden box.

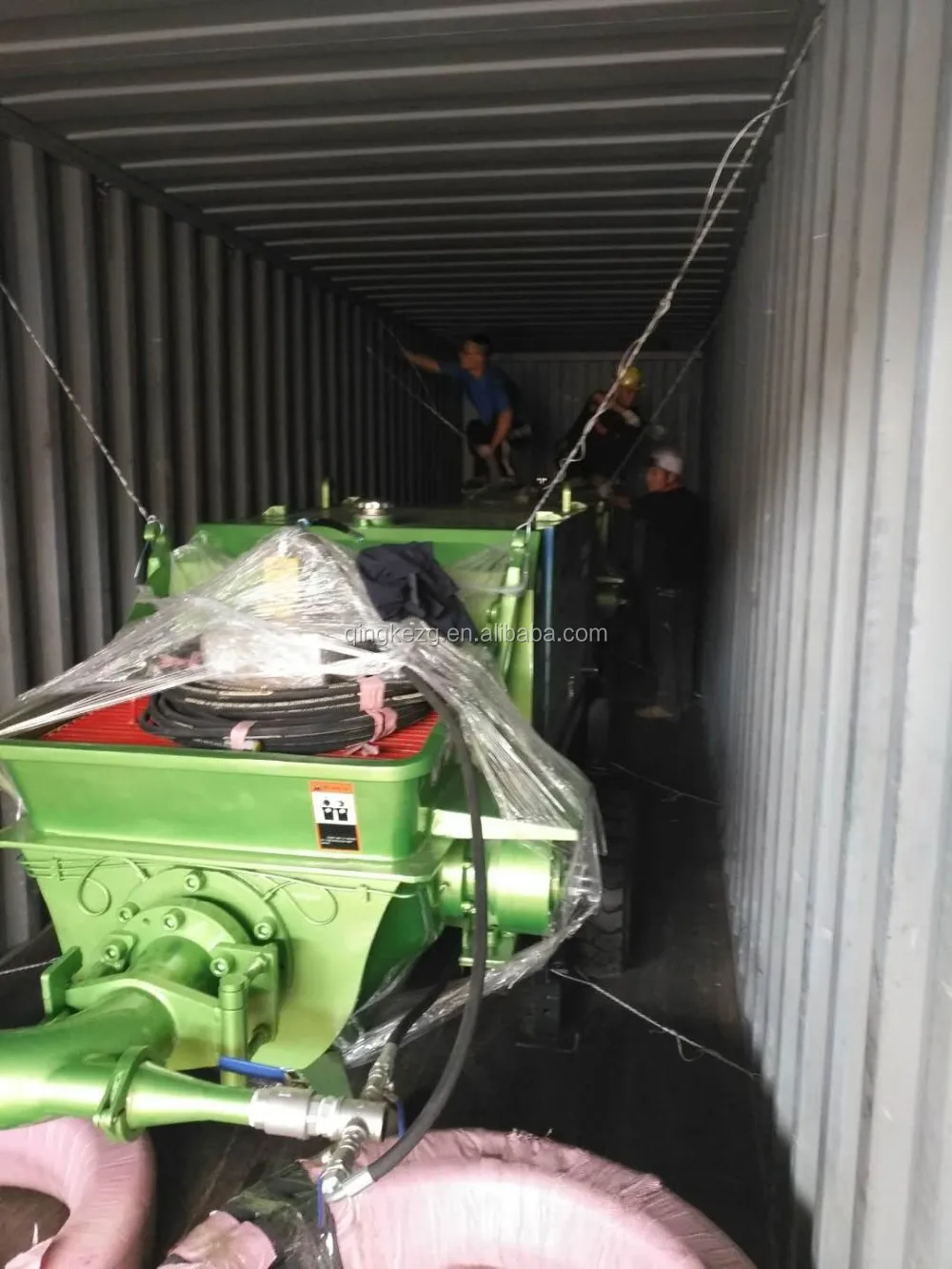

SPJ Serious Shotcrete Machine load by 1*20GP.
Spare parts packed by wooden box.

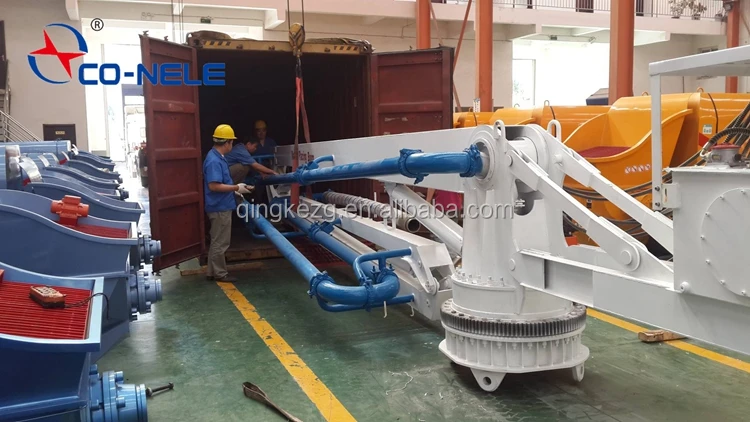

Mobile boom placer 13m to 23m load by 1*40HQ.

Spare parts packed by wooden box.

Self Climbing boom placer 28m-33m load by 2*40HQ.

Spare parts packed by wooden box.

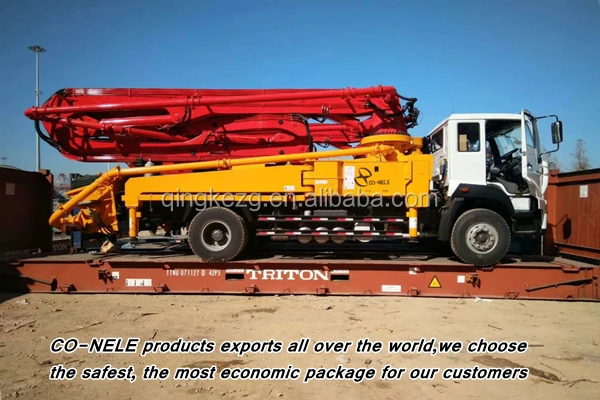

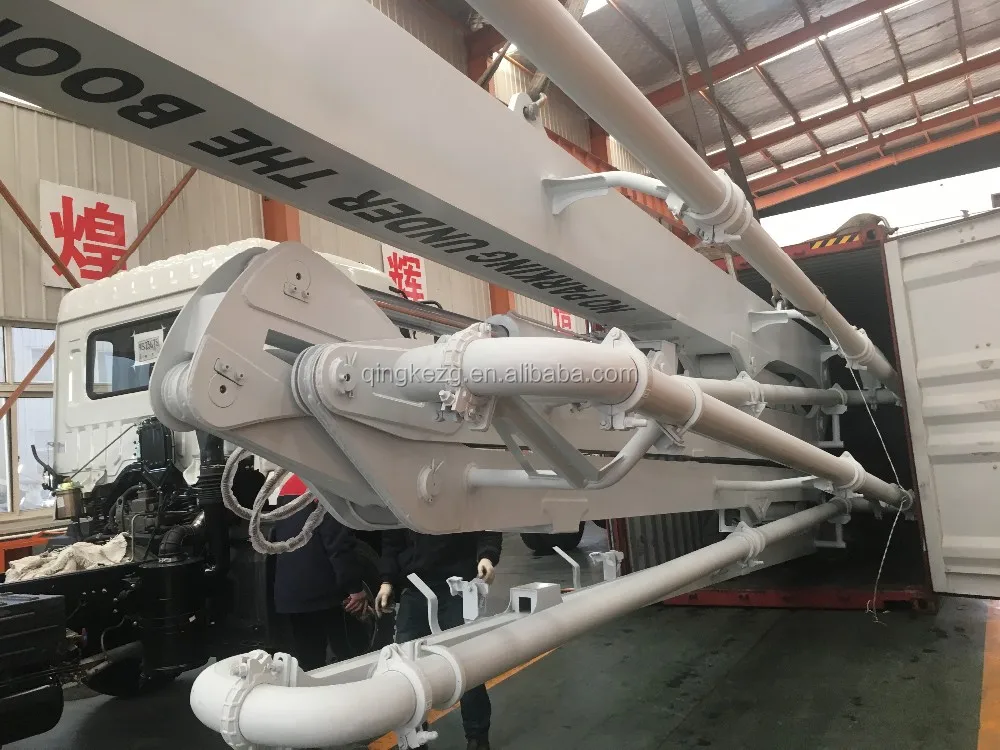

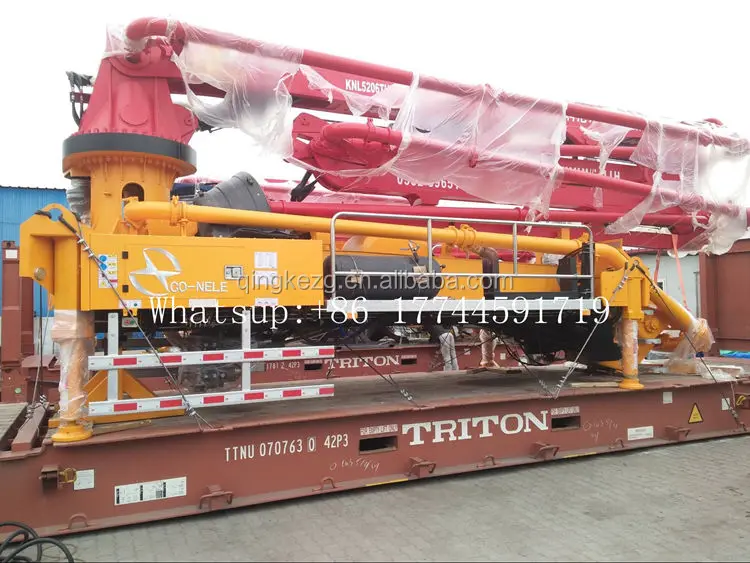

21m to 63m Tuck Mounted Concrete Boom Pump load by 40FR, or by Roll-Roll or Bulk Cargo.

Spare parts packed by wooden box.

21m to 63m Upper Concrete Boom Pump load by 40FR.
Spare parts packed by wooden box.

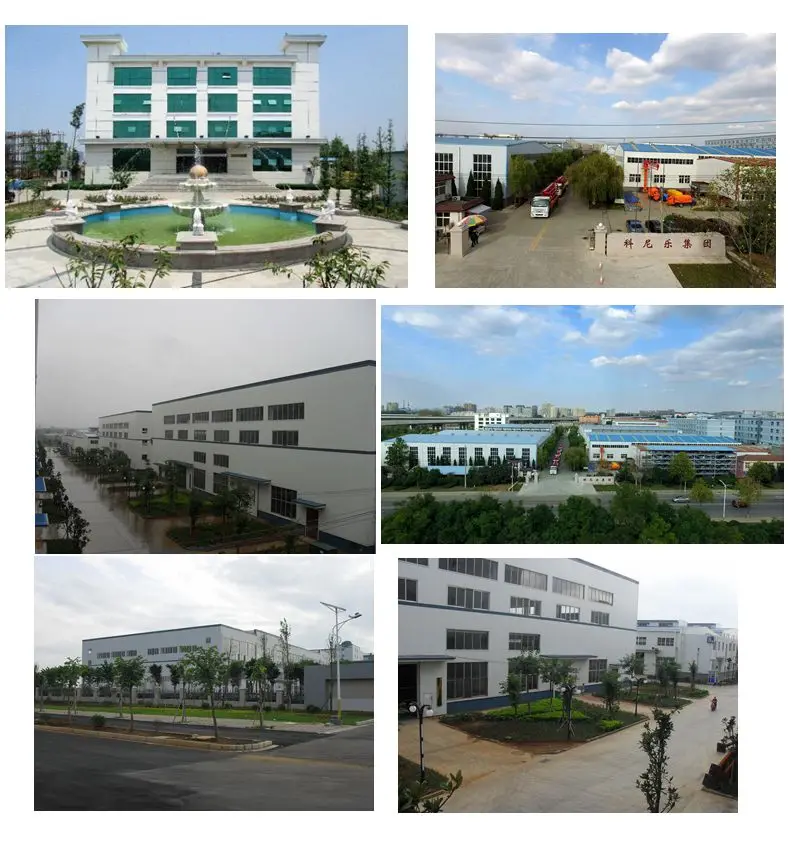

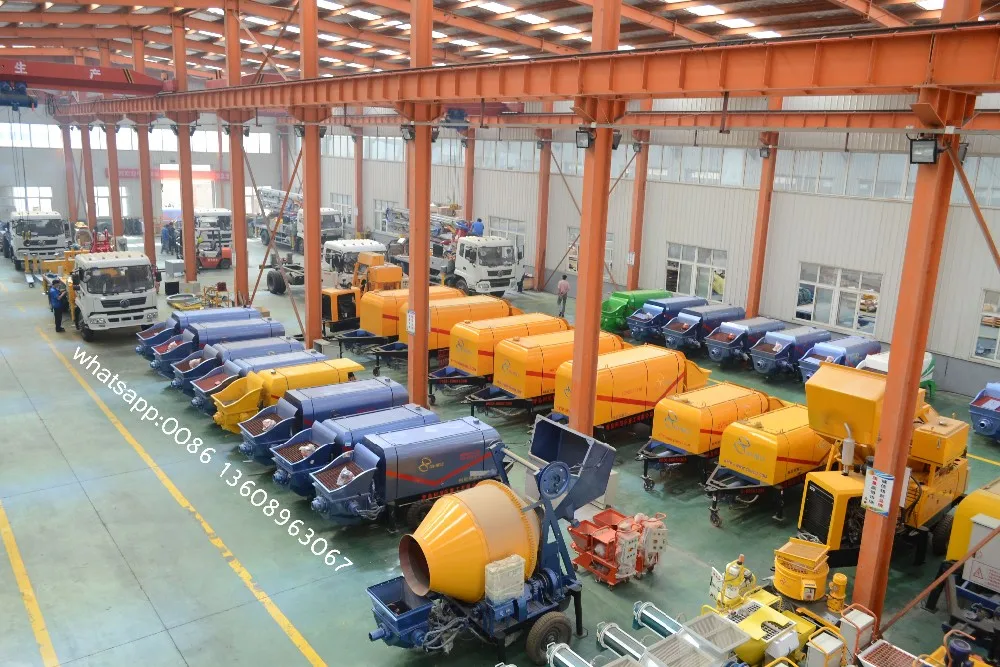

Company profile

QINGDAO CO-NELE GROUP CO.,LTD

The headquater was founded in 1993, own 28 branches in domestic and overseas.

CO-NELE Group is a China manufacturer specializing in the construction machinery, main cover concrete mixing, pumping, placing and spraying machines full range.

We are at the site of Qingdao, a beautiful seaside city. And we are near to the Qingdao Port and Qingdao Airport. So that it's very convenient for us to delivery the goods and for you to visit our company.

Agent Wanted

At present, we are trying our best to the overseas market and looking forward to cooperate with you.

We take great importance to your cooperation, and wish to creat a win-win suitation together if you like!

WhatsApp/Wechat:+86 17744591719

FAQ

1) What's the advantage of your companies?
3 production bases, 25 years' experience 28 subsidiaries and over1500 employee are our key to share large scale in domestic market and export concrete product to over 75 foreign countires.
2) How about the Mobile concrete placing boom/Concrete Spreader after-sales service.
Within the warranty period,we'll visit and repair for free when machine break down.Guarantee spare parts also free delivery to your door.
Beyond the warranty period,we supply paid service and spare parts all time.
3) What's the Mobile concrete placing boom/Concrete Spreader payment terms?
We need 30% deposit to start production, the balance should be paid brfore ready for shipment.
4) Do you supply international aftersales service?
Yes, we can send engineer to your job site for maintenance and technical support.
5) Are you a trader or manufacturer?
We are manufacturer,specializing in technical research,producing,sales and after-sale service of concrete equipment.Also we accept OEM and ODM.
6) How long is the Mobile concrete placing boom/Concrete Spreader warranty period ?
We offer 12 months warranty for the machine (main body) from the date of installation finished.
7)What is the Mobile concrete placing boom/Concrete Spreader delivery time ?
According to the model and quantity, generally within 15days for one set.
8)Can I have our LOGO on the machine ?
Yes
9)What is the Mobile concrete placing boom/Concrete Spreader MOQ ?
one set
10) Can I be your Mobile concrete placing boom/Concrete Spreader dealer ?
Welcome to become our dealer, we would cooperate and support the dealer's work.
