Model Number: | YZR5055JGKZ3; | Dimensions (L x W x H) (mm): | 7400*1980*3100mm; |
Curb Weight: | 4975KG; | Packaging Detail: | Wax; |
Place of Origin: | Hubei China; | Brand Name: | YZR; |
Delivery Detail: | Within 25 working days; | Wheelbase: | 3360MM; |
Emission Standard: | Euro 4; | Front/rear suspension: | 1385/1425; |
Payment Terms: | L/C,T/T; | Maximum speed: | 95KM/H; |
Port: | Shanghai; | max operation height: | 14M; |
Front / Rear tread: | 1385/1425MM; | Cab-by the number: | 2+3; |
Supply Ability: | 500 Unit/Units per Month; | Number of axles: | 2PCS; |
Approach/departure angle: | 24/12; | Chassis No.: | QL10508HWRY; |
Condition: | New; | Fuel Type: | Diesel; |
Transmission Type: | Manual; |

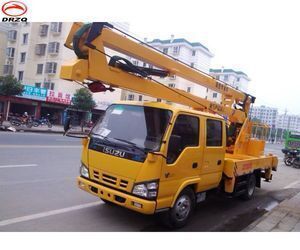

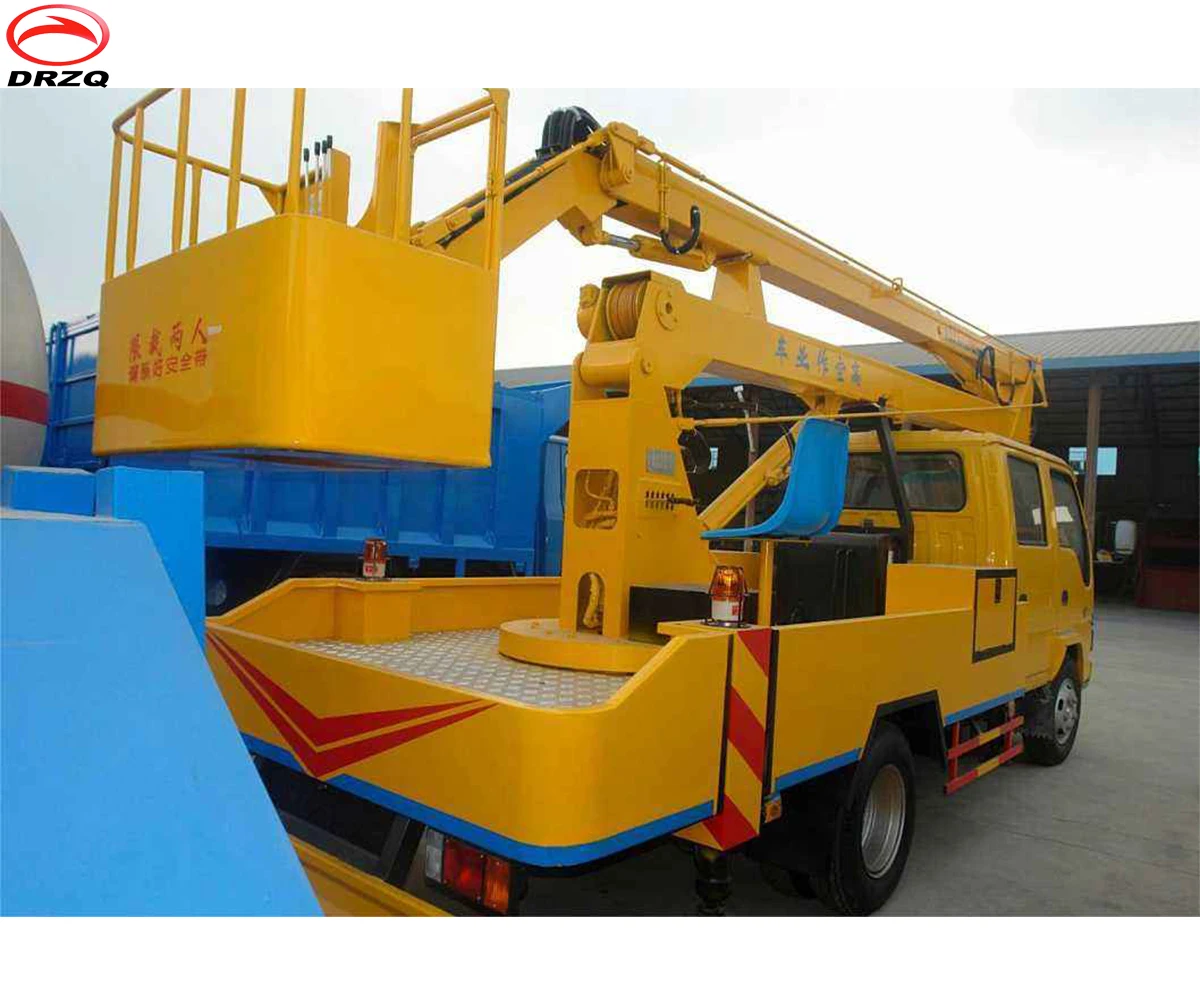

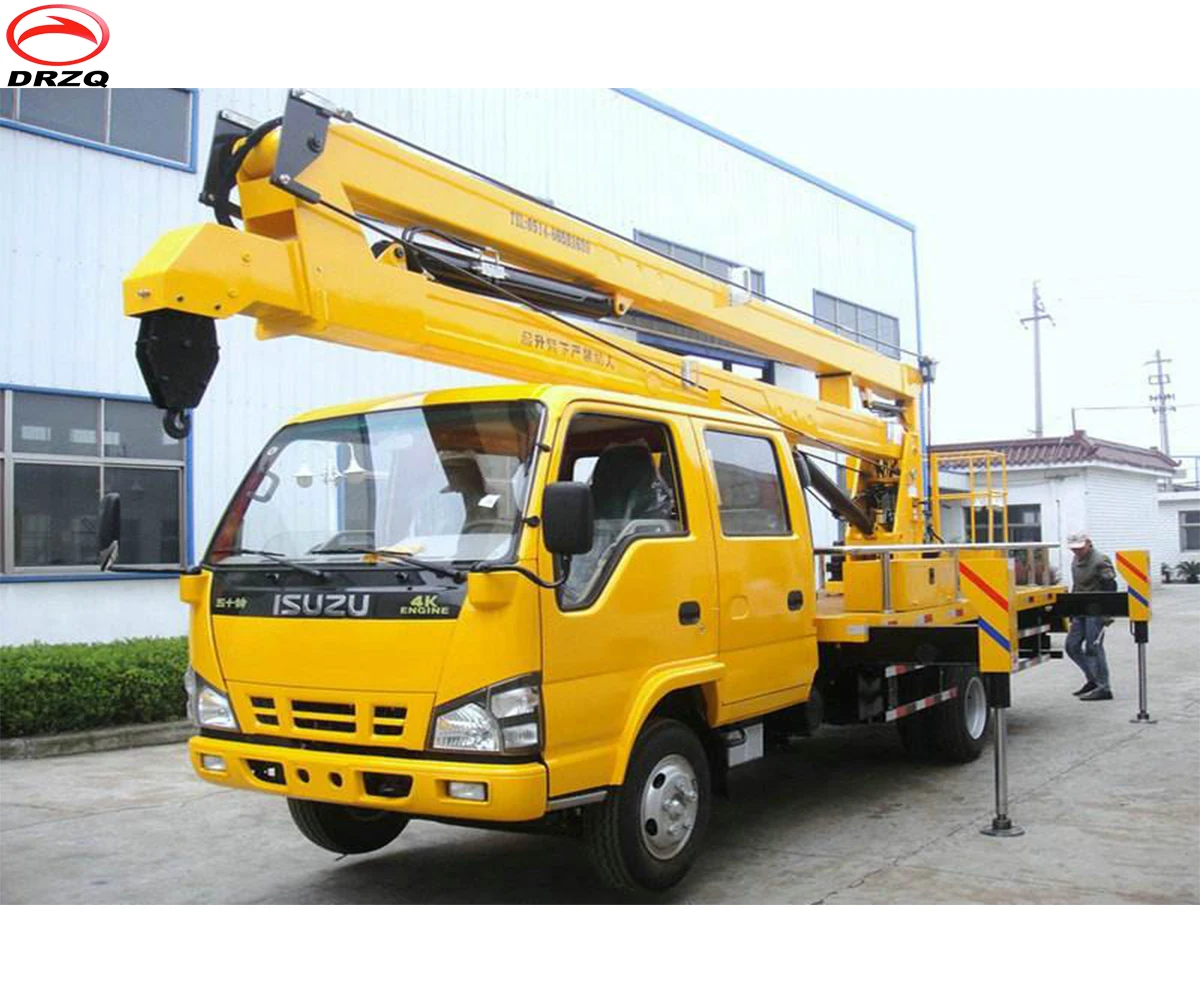

Product Nmae | I SUZU 14M High-altitude Operation Truck | |||
Item | Unit | Parameter | ||
Vehicle model | YZR5055JGKZ3 | |||
Chassis model | QL10508HWRY | |||
Overall dimensions | mm | 7400×1980×3100 | ||
Fact loading | kg | 200 | ||
Mass in working order | kg | Appro×4975 | ||
Body internal dimensions | mm | 3370×1800×400 | ||
Wheel base | 3360 | |||
F/R track base | 1385/1425 | |||
Approach/departure angle | ° | 24/12 | ||
Exhaust/kw | ml/kw/HP | 2771/70/95 | ||
Max speed | km/h | 95 | ||
Tire specification | 7.00-16 | Engine type | 4JB1-TC1 | |
Traction system | 4×2 | transmission | 5-speed with over drive | |
Number of axles | 2 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2+3 | |
Equipment | 1.max operation height>14m | |||
2.max operation radius>5.7m | ||||
3.max working platform height>11.5m, | ||||
4.working platform rating loading=200kg | ||||
5.working platform rating allowable passengers=2 | ||||
6.working platform dimension:1100*570*1000mm | ||||
7.360°turning(left or right),4 H-shape legs. | ||||
Clients can choose hydraulic parts made in China or Italy | ||||
Engine | DongFeng Cummins diesel engine |
As a professional special truck manufacturer, we provide both OEM and ODM service. We can also provide spare parts.

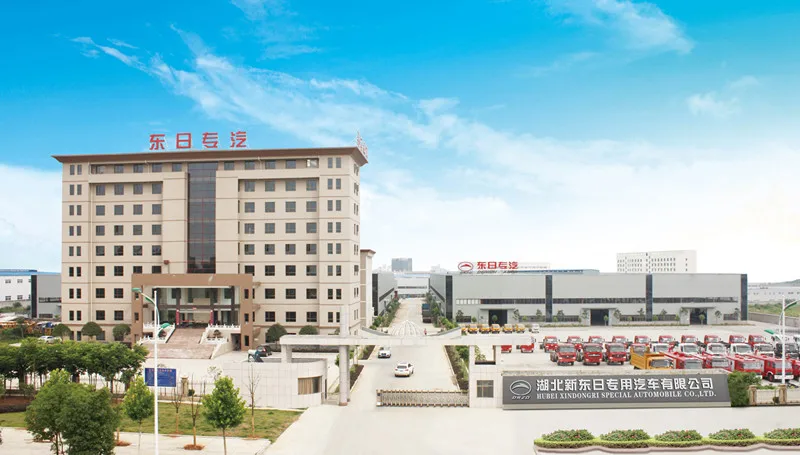

Hubei Xindongri Special Vehicle Co., Ltd. is located in Suizhou, Hubei Province,China.
Our company is specialized in all kinds of special trucks, such as Fire Trucks, Aerial Platform Working Trucks, Truck Cranes,Wrecker Trucks,Road Sweepers, Garbage Trucks, Water Sprinkling Truck,Sewage Suction Trucks, Fecal Suction Trucks, Dump Trucks, Fuel Tank Trucks, Cargo Trucks,Advertising Truck,Refrigerator Trucks, Concrete Mixer Trucks, Chemical Liquid Tank Trucks,Semi Trailers, and more than 100 kinds of other
vehicles.

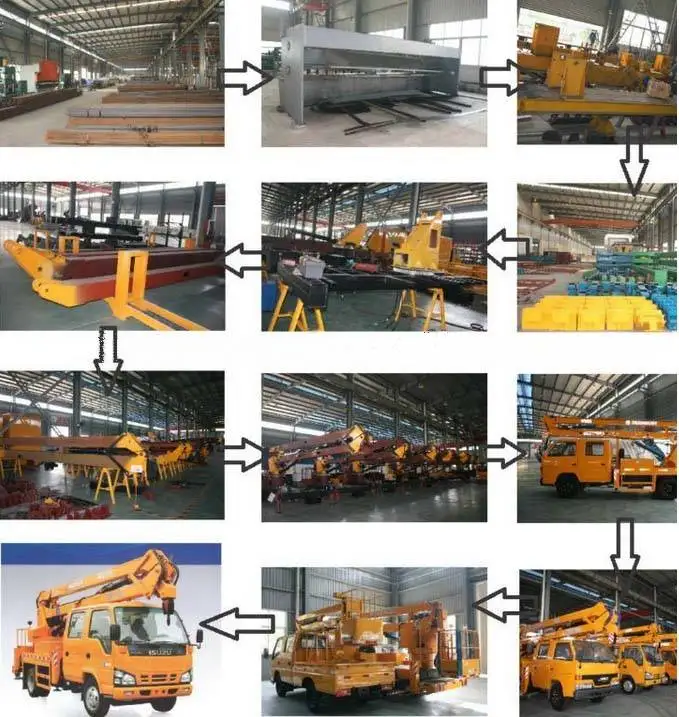

We have 300 working staff members, and 20% of them are engineer persons. The asset property of our company comes up to RMB210, 000,000. Our covering area is about 150,000 square meters. Our factory is equipped with more than 100 sets of high-tech production and testing equipment which operates under strict QC guidelines to guarantee high-quality products at competitive prices.
With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially the Mid-East, Southeast Asia, Africa, etc. Meanwhile, OEM orders are welcome. Our products enjoy great popularity among our customers.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting with us to build a long and successful business relationship.
Certificates
1, Q: Why should we choose you ?
A: We are a professional manufacturer and specialized in special truck field for more than 10 years, we have our own R&D engineering team and experienced staffs.We can guarantee the leadtime and quality.
B.We can export directly to overseas clients,no need to deal with trading company.
C.We already passed ISO9001 and ISO14001,SNAS,SGS certificates and we are a High-Tech enterprise.
D.We can provide special design for different speficication requirement according to different orders or tender documents.
E.We provide OEM and ODM service.
2, Q: What's your Payment method?
A: T/T 30% deposit, balance will be paid by T/T before delivery.
B: 100% L/C before start production.
3, Q: What's you minimum order?
A:To support customers, we accept only 1pc special truck order, if QTY is more, the price will be more competitive.
4, Q: What's the delivery time?
A:Generally within 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
5. Q: How about warranty item?
A: We could support you original spare parts. And also email or telephone assist in the following days. If necessary, our outwork engineer could go for technical assistance.
