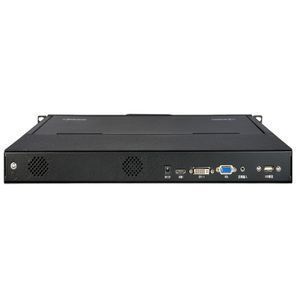

Factory support Industrial all in one 1 4 8 16 port 17 inch FHD High resolution Rackmount lcd kvm switch for KVM drawer

Product details
Monitor Connections:4 Ports;Model Number:KVM-1704HM;
Single package size:73X62X22 cm;Size:480mm*480.4mm*44mm (L x W x H);
Package Type:double carton package+pearl cotton+pe bag;Features:FHD resolution;
Brand Name:Pontron;Place of Origin:China;
HDMI Version:optional;Resolution:1920 x 1080;
Excellent video effect:1920*1080;Selling Units:Single item;
Single gross weight:20 KG;Interface Type:D-Sub;
Console ports (K/V/M):USB / PS/2 /VGA;Computer Connections:1 Ports;
Products Status:Stock;Port:4;
Warranty:1year;Supported OS:Win7/8/10, Linux;
Certificate:CE FCC RoHS ISO9001;ODM/OEM:support;
Product Description

 Main features

« 17.3’’ LED KVM switch with touch pad+Mouse

« 104keys keyboard with integrated Digital&E-switch keys.

« Excellent video effects, the best resolution is up to 1920*1080@ 75HZ.
« Supports front USB for keyboard/mouse

« Support USB+PS2 local console

« Supports computer indicator when user switch to another computer.
« Support cascading connection, max up to 512 computer.

Introduction

« What kvm switch works with windows 10?What kvm switches have ddc and edid support?Pls checking the details as below.

« Withdrawing installation design, the length can be adjusted to fit the rack space.
« Humanized design, can be installed and removed by only one person , which improves the  efficiency of the administrator.
« To switch the host computer though the hotkey or OSD menu, which can manage up to 512 computers.
« Password security protection, only authorized users can view and manage on-line computer.
« Support a variety of brand industrial computer and the sever, eg: EVOC / Lenovo / IBM / DELL / HP/ SUN, ect
« Support various operating system: Window XP, 7 /8 / 10 ,Microsoft, Linux, Unix,etc.

Specification



Model

KVM-1701HM

KVM-1704HM

KVM-1708HM

KVM-1716HM

Computer connect

   Direct 1

 Direct 4

 Direct 8

 Direct 16

    Max:1

 Max : 128

 Max : 256

 Max: 512

Keyboard

104 Mechanical mute Keyboard

Mouse

Touchpad

Switch Mode

Hotkey , OSD Menu

Switch Scan Time

1-255 second  ( OSD adjustable )

Cable Port

Local console

Keyboard / Mouse/ Display

(2*USB +2*PS/2+1* HDB-15 female  )

Connector port

1/ 4 / 8 /16 * HDB-15 female ( Yellow )

Input IO

HDMI+DVI (optional) for 1 port

Panel



Size

17.3 ’’ TFT LED , 16:9

Resolution

1920 * 1080

Max Color

262K

Brightness

300nit

Contrast ratio

400:1

Pixel Pitch

0.17925mm (H) x 0.17925 mm(V)

Power input

12V DC input ( AC100-240V 47-63Hz, 35W )optional



Work environment

Operating Temp

-10℃~60℃

Storage Temp

-20℃~70℃

Humidity

0%-95%RH

Cabinet Material

high-strength and Anti-corrosive steel plate

Color

Insulated black(optional)

For Cabinet

600-600mm / 800-1040mm

Net  weight

13KG-17KG

Gross Weight

17KG~20KG

Dimension

480mm*480.4mm*44mm (L x W x H)

Package

708mm*608mm*195mm (L x W x H)

Certificate

CE , FCC , RHOS



Ordering information



KVM - 1704HM

1U Rack mount 17.3" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 4 port VGA , W/ 12V power supply, W/ USB cable.

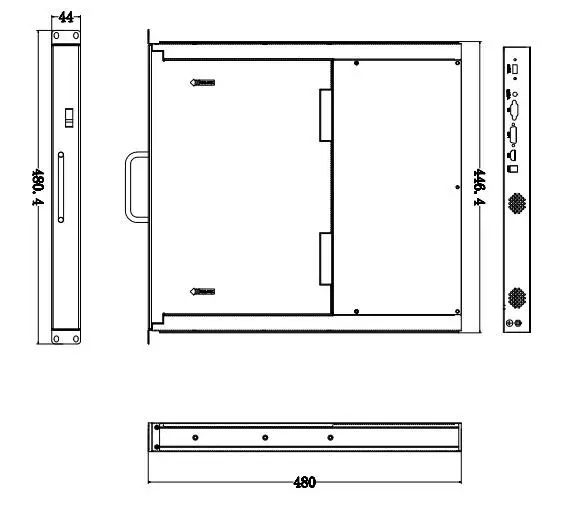

 Drawing

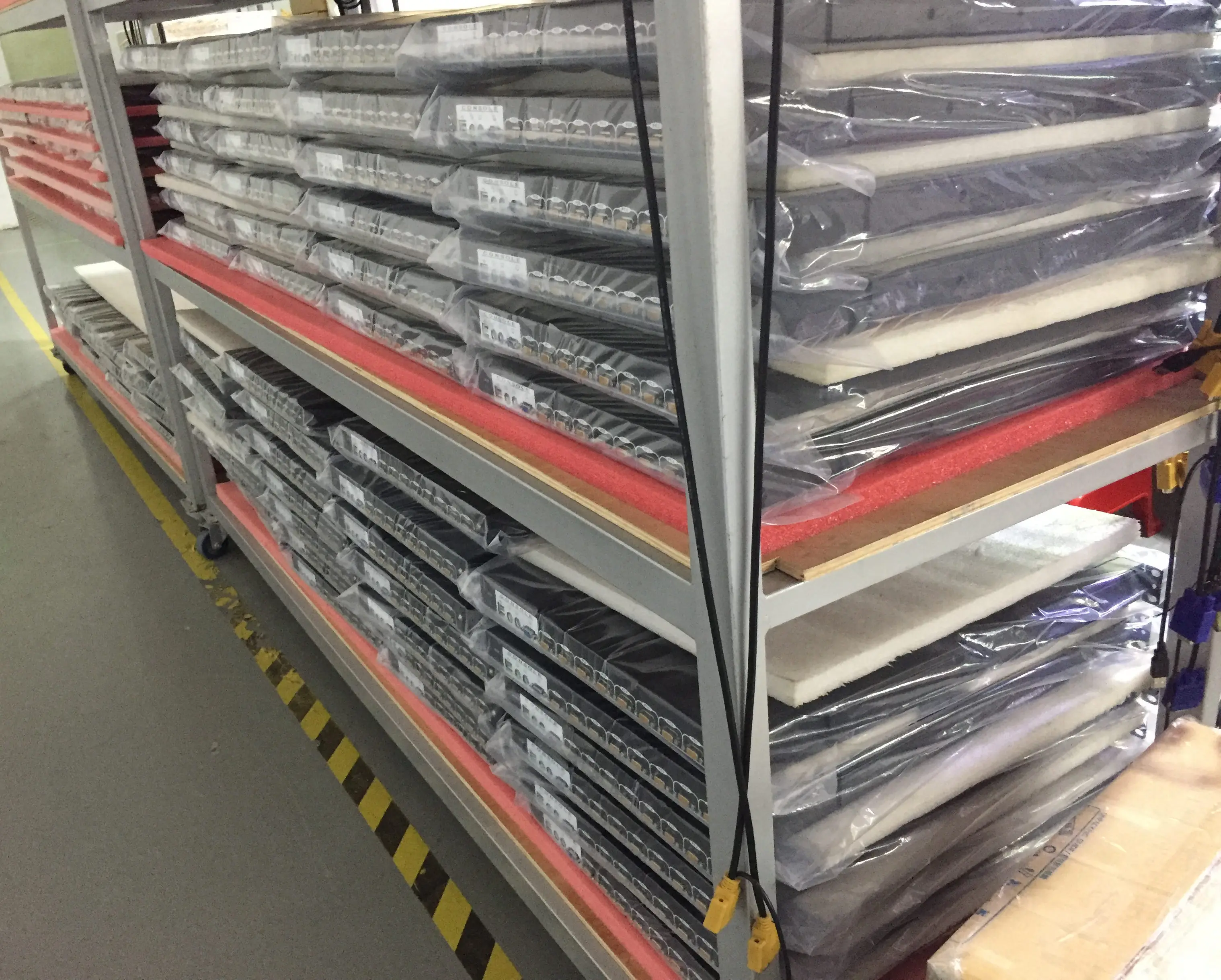

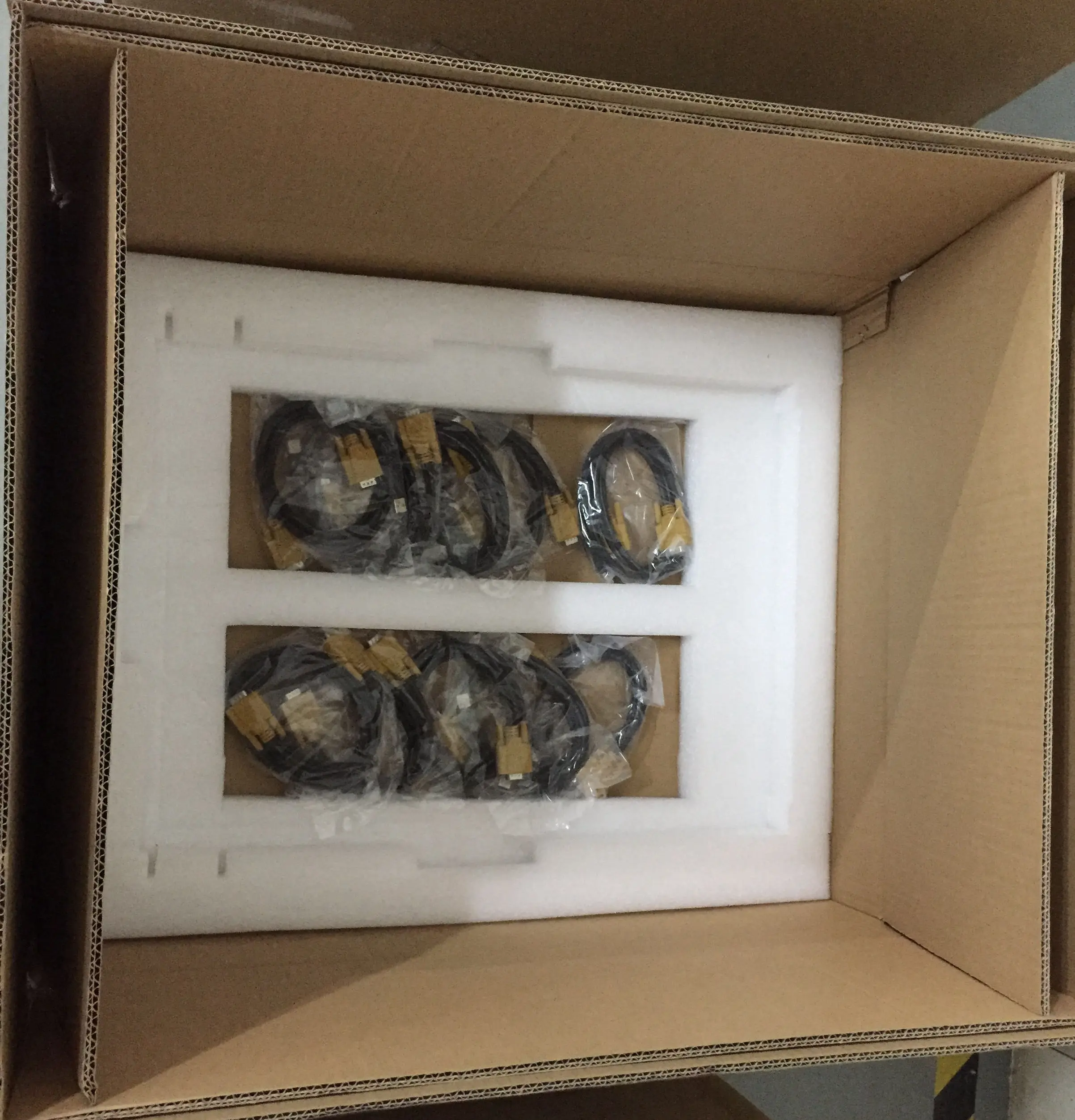

Packaging & Shipping





Our Services

 Shenzhen Pontron Technology Ltd we have dedicated in Industrial panel pc,Industrial LCD monitor,KVM, Industrial BOX pc,workstation,Mini pc in the worldwide market for 10 years. our products has the CE/EMC/FCC/ROHS certificate and the customers are all over the world.especially in USA, Europe, Australia and Asia.



  Our dedicated team of engineers, production specialists, and administrative staff provide the best quality products available on the market.



  We pride ourselves on our expertise in producing customized products. Through ODM/OEM production, you are assured of designs which will meet your exact specifications. Our innovative ideas in manufacturing which will make your products a leading seller on the market. this results in short period of develpoment time for projects.



  In PONTRON, we have a qualified working team which includes senior level mechanical and electronic R&D engineers, OEM product/sales manager, ISO 9001 trained manufacturing personel, and an efficient logistics department. we have an average age of 30 years old, and the average working experience in the industrial computer field is more than 7 years.



  PONTRON, is committed in prooviding quality, innovative products and technical support to our customers in a very cost effective manner. we like to grow with our customers.we believe customer satisfaction is the key to our growth and success. we work for your needs and your satisfaction is guaranteed.





Company Information

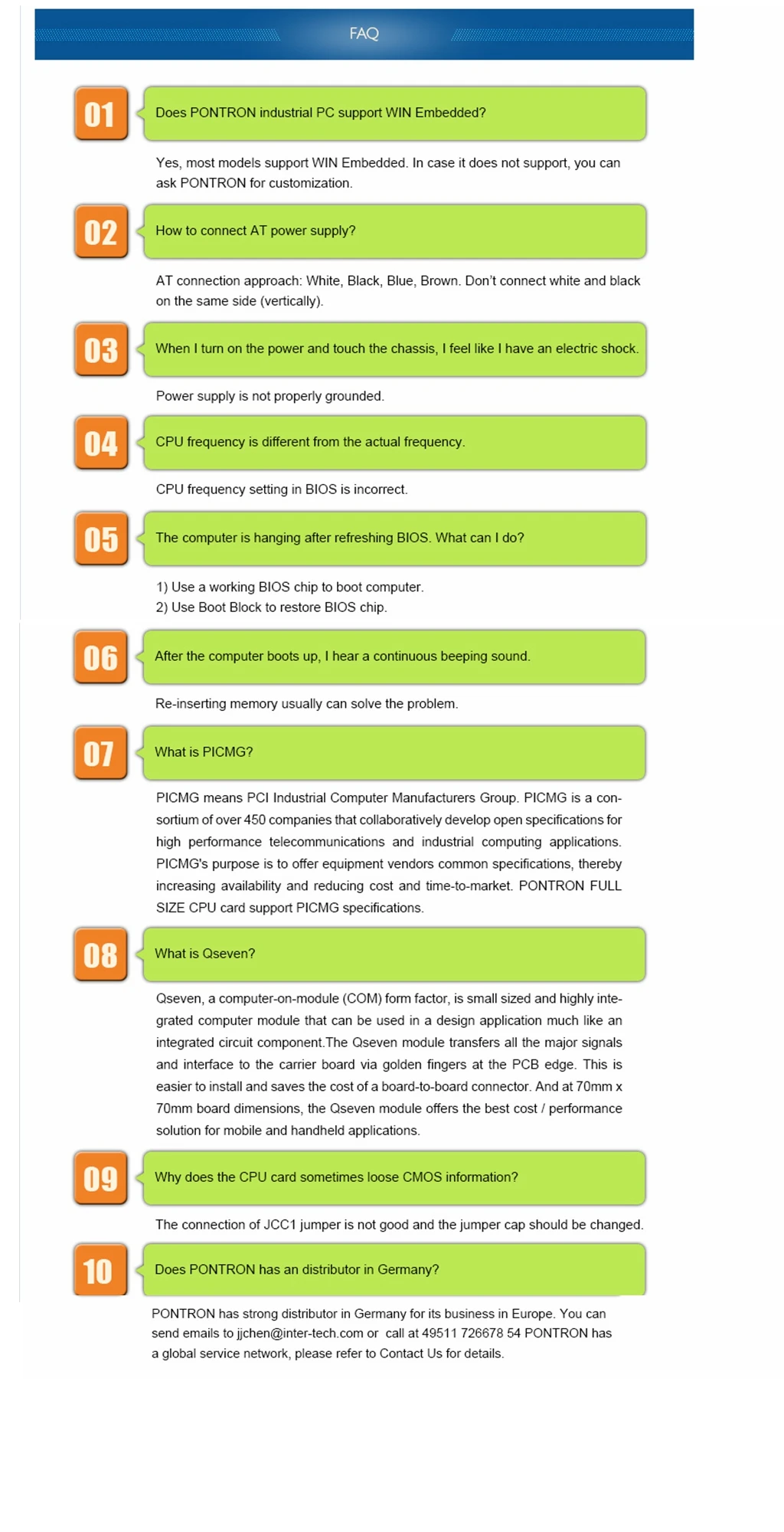

FAQ
