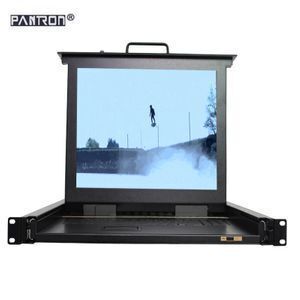

1port / 4port /8port /16port 15 inch usb +ps/2 lcd kvm switch

Supplier: Shenzhen Pontron Technology Ltd.
Region: Guangdong, China
Contact: Ms Amy Lai
Price: $328.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Products Status:	Stock;	Color:	Insulated black paint (optional);
Model Number:	KVM-1500M;	Local Console:	Keyboard / Mouse/ Display (2USB +2PS/2+1* HDB-15 female );
Single gross weight:	19 KG;	Single package size:	70.8X60.8X19.5 cm;
Resolution:	1024 x 768;	power input:	12V DC input ( AC100-240V 47-63Hz, 35W )optional;
Interface Type:	D-Sub;	Selling Units:	Single item;
Certificate:	CE FCC RHOS CCC;	OS:	Support Window XP, 7 /8 / 10 ,Microsoft, Linux, Unix,etc.;
Computer Connections:	1 port / 4port / 8port /16 port;	Place of Origin:	Guangdong China (Mainland);
Monitor Connections:	1 Ports;	Brightness:	250nit;
size:	15'' TFT LED;	Package Type:	Our kvm switch packaging: With by carton, Dimensions:446mm480.4mm44mm(KVM-1501M); 520mm480.4mm44mm (KVM-1504M/1508M/1516M);
Net weight:	12KG;	Brand Name:	OEM;

1port / 4port /8port /16port 15 inch usb +ps/2 lcd kvm switch

Product Description

Main Features:

« 19’’ 1U rack mount 15’’ LED KVM switch with touch pad+Mouse

« 104keys keyboard with integrated Digital&E-switch keys.

« Supports 1024*768@ 75HZ resolution, 250 nit brightness.
« Supports front USB for keyboard/mouse

« Support USB+PS2 local console

« Supports computer indicator when user switch to another computer.
« Support cascading connection, max up to 512 computer.

Introduction :

« Withdrawing installation design, the length can be adjusted to fit the rack space.
« Humanized design, can be installed and removed by only one person , which improves the

efficiency of the administrator.
« To switch the host computer though the hotkey or OSD menu, which can manage up to

512 computers.
« Password security protection, only authorized users can view and manage on-line computer.
« Support a variety of brand industrial computer and the sever, eg: EVOC / Lenovo / IBM / DELL

/ HP/ SUN, ect .
« Support various operating system: Window XP, 7 /8 / 10 ,Microsoft, Linux, Unix,etc.

Specification :

Model	KVM-1501M	KVM-1504M		KVM-1508M	KVM-1516M
Computer connect	Direct 1	Direct 4		Direct 8	Direct 16
	Max:1	Max : 128		Max : 256	Max: 512
Keyboard	104 Mechanical mute Keyboard
Mouse	Touchpad
Switch Mode	Hotkey , OSD Menu
Switch Scan Time	1-255 second ( OSD adjustable )
Cable Port	Local Console		Keyboard / Mouse/ Display (2USB +2PS/2+1* HDB-15 female )
	Connector port		1/ 4 / 8 /16 * HDB-15 female ( Yellow )
	Power supply		1 * 3 pin AC power supply socket
Panel	Size		15’’ TFT LED
	Resolution		1024 * 768
	Max Color		16.7M
	Brightness		250nit
	Contrast ratio		700:1
	Pixel Pitch		0.297 x 0.297 mm
Power input	12V DC input ( AC100-240V 47-63Hz, 35W )optional
Work environment	Operating Temp		-10℃~60℃
	Storage Temp		-20℃~70℃
	Humidity		0%-95%RH
Cabinet Material	high-strength and Anti-corrosive steel plate
Color	Insulated black (optional)
For Cabinet	800-1040mm
Net weight	12KG
Gross Weight	15KG~19KG
Dimension (L x W x H)	446mm480.4mm44mm(KVM-1501M); 520mm480.4mm44mm (KVM-1504M/1508M/1516M)
Package (L x W x H)	708mm608mm195mm
Certificate	CE , FCC , RHOS

Ordering information :

KVM - 1501M	1U Rack mount 15" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 1 port VGA , W/ 12V power supply, W/ USB cable.
KVM - 1504M	1U Rack mount 15" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 4 port VGA , W/ 12V power supply, W/ USB cable.
KVM - 1508M	1U Rack mount 15" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 8 port VGA , W/ 12V power supply, W/ USB cable.
KVM - 1516M	1U Rack mount 15" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 16 port VGA , W/ 12V power supply, W/ USB cable.
