19 inch LCD screen cat5 cable over ip kvm USB drawer switch console manufacturer 32-port kvm switch

Product details
Monitor Connections:1 Ports;Port Selection:Button;
Model Number:IP KVM-1900U;Packaging Detail:double carton package+pearl cotton+pe bag;
Size:19inch;Features:over ip ( remote control );
Products Status:Stock;Interface Type:RJ-45;
Switch Mode:Hotkey , OSD Menu;Supported OS:Win7/10/xp,linux;
Console ports (K/V/M):2*USB +1* HDB-15 female;Computer Connections:8 Ports/16 port /32port;
connector port:8 /16 / 32 * CAT5 (RJ45 port );Resolution:1280 x 1024;
Place of Origin:Guangdong China;Warranty:1Year;
Certification:FCC,ce,RoHS;Single package size:72X62X22 cm;
Excellent video effect:To1280*1024 75HZ;Certificate:CE/FCC/EMC;
Brand Name:Pontron;Selling Units:Single item;
Single gross weight:19.0 KG;

 manufacturer OEM/ODM 19 inch cat5 ip kvm drawer price 32-port kvm switch



 Main features:

« KVM (keyboard, video ,mouse ) access over IP and analogous telephone line (modem needed) .
« Full control under any OS, in BIOS mode , during boot, at Blue Screen

« 256 bit SSL encryption of all transmitted data and certificate management
« Port to connect a user console for direct analogous access to KVM switch

« Can be used with most standard KVM

« To switch the host computer though the hotkey or OSD menu, which can manage up to 1024 computers.
« Password security protection, only authorized users can view and manage on-line computer.
« Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc
« Support various operating system: Microsoft, Linux, Unix, etc.



Introduction:





« IP-KVM switch can save your Money ,Time, Space, Equipment and Power . IP KVM switch defines a new class of remote KVM switch devices. IP KVM switch combines digital remote KVM access via IP networks with comprehensive and integrated system management.

« IP KVM Switch provides convenient, remote KVM access and control via LAN or internet . it captures, digitizes, and compresses videa signal and transmits it with keyboard and mouse signals to and from a remote computer. IP KVM switch provides a non-intrusive solution for remote access and control . Remote access and control software  runs on its embedded processors only but not on mission-critical servers, so that there is no interference with server operation or inpact on network performance.



Specification:

Model

IP KVM-1908C

IP KVM-1916C

IP KVM-1932C

Computer connect

Direct : 8

(Max :256)

     Direct : 16

     (Max : 512)

Direct : 32

    (Max : 1024)

Keyboard

104 Mechanical mute Keyboard

Mouse

Touchpad

Switch Mode

Hotkey , OSD Menu , Panel Button

Auto-scanning interval

5-99second

LCD resolution

1280 *1024 DDC2B

Safety performance

Provide access control list function

Power input

DC12V input , (AC100-240V 47-63Hz, 35W ) optional





Cable Port

Local console

Keyboard / Mouse/ Display

(2*USB +1* HDB-15 female  )

Connector port

8 /16 /32 * RJ45 ( CAT5 port )

Power supply

1 * 3 pin AC power supply socket

Remote control

1* Lan port , 1* RS232 ( Lan Port )







LED Indicator

Power indicator

             2

Selection indicator

            16

Boost on-line indicator

            16

Num Lock

             1

Caps Lock

             1

Scroll Lock

             1



Work environment

Operating Temp

          -10℃~60℃

Storage Temp

          -20℃~70℃

Humidity

          0%-95%RH

Cabinet Material

high-strength and Anti-corrosive steel plate

Color

Insulated black (optional)

For Cabinet

800-1040mm

Net  weight

14KG-17KG

Gross Weight

17KG-22KG

Dimension

600mm*440mm*44mm (L x W x H)

Package

738*608*195mm (L x W x H)

Certificate

CE , FCC , RHOS


Ordering information:



+

IP KVM - 1908U

1U Rack mount 19 inch TFT LED KVM Drawer with 8 port over IP

IP KVM - 1916U

1U Rack mount 19 inch TFT LED KVM Drawer with 16 port over IP

IP KVM - 1932U

1U Rack mount 19 inch TFT LED KVM Drawer with 32 port over IP

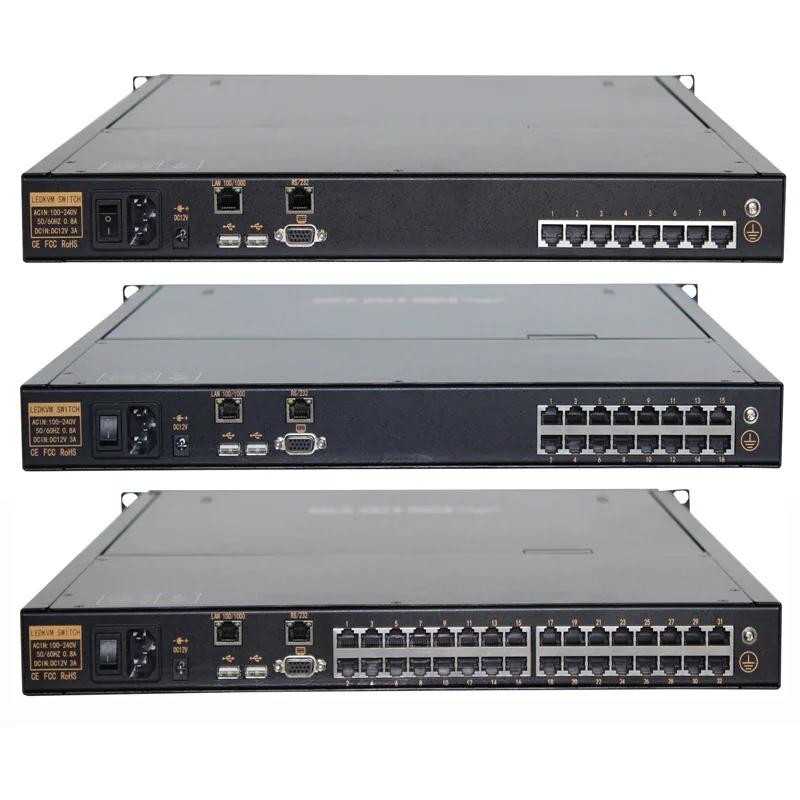

IO View :

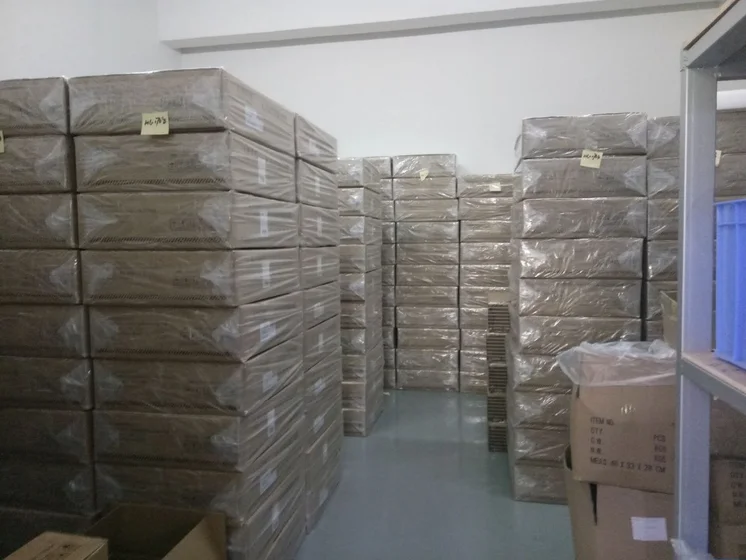

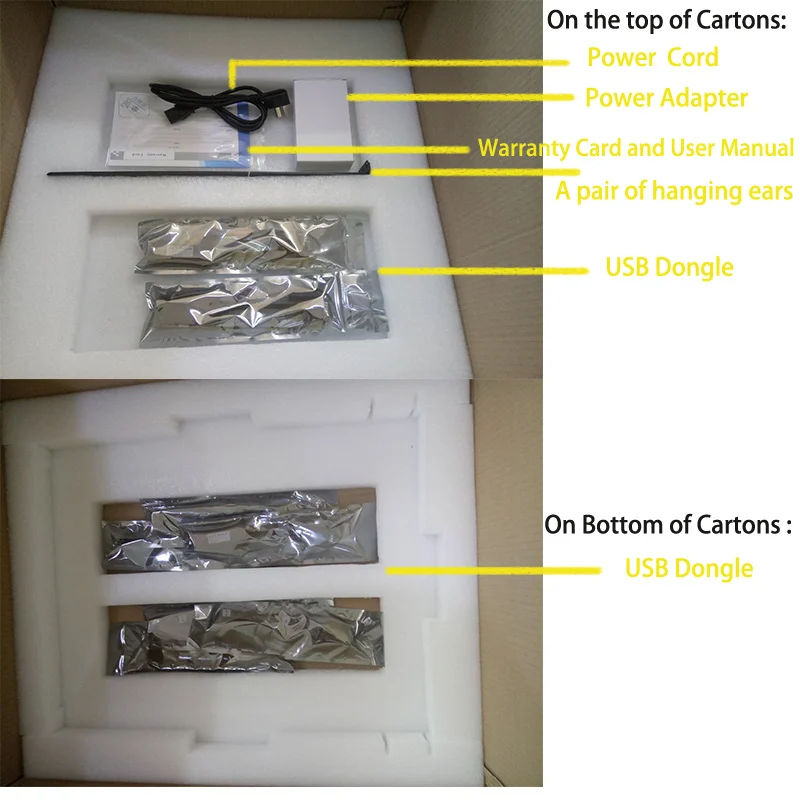

Packaging & Shipping
