Disposable syringe making machine

Supplier: Ningbo Haijiang Machinery Manufacturing Co., Ltd.
Region: Zhejiang, China
Contact: Mr Haijiang China
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Origin:	China;	Weight (KG):	4200;
Screw L/D Ratio:	20;	Supply Ability:	50 Set/Sets per Month;
Injection Weight:	236g;	Distance between Tie Bars:	420mm*420mm;
Local Service Location:	United States,Mexico,Algeria,Bangladesh,Ukraine;	After Warranty Service:	Video technical support,Online support;
Payment Terms:	L/C,D/P,T/T;	Power(W):	50HZ;
Showroom Location:	United States,Bangladesh,Ukraine,Uzbekistan;	Screw diameter (mm):	42 mm;
Warranty:	18 months;	Plastic Processed:	PP,PC,ABS,PVC,PPR,HDPE,PE;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory;	Plasticizing Capacity(g/s):	105;
Key Selling Points:	Easy to Operate;	Certification:	ISO9001;
After-sales Service Provided:	Overseas third-party support available;	Open Stroke(mm):	340 mm;
Injection Rate:	159g/s;	Brand Name:	HAIJIA;
Distance between Tie Bars(Width)(mm):	420 mm;	Packaging Detail:	container;
Ejector Force(kN):	33 kN;	Injection Weight (g):	236 g;
Type:	Tube Shoulder Injection;	Automatic:	Yes;
Screw Speed (rpm):	1 - 220;	Port:	Ningbo;
Plastic Type:	Thermoplastic;	Condition:	New;
Theoretical Shot Volume(cm³):	263 cm³;	Machine Type:	Hydraulic;
Model Number:	HJF140;	Clamping Force (kN):	1400 kN;
Distance between Tie Bars(Height)(mm):	420 mm;	Style:	Horizontal;
Injection Rate (g/s):	159 g/s;	Ejector Number:	6;
Ejector Stroke(mm):	120 mm;	Plastic injection moulding machine:	injection molding machine;
Power (kW):	13 kW;	Mold Height(mm):	170 - 450 mm;
Place of Origin:	Zhejiang China;

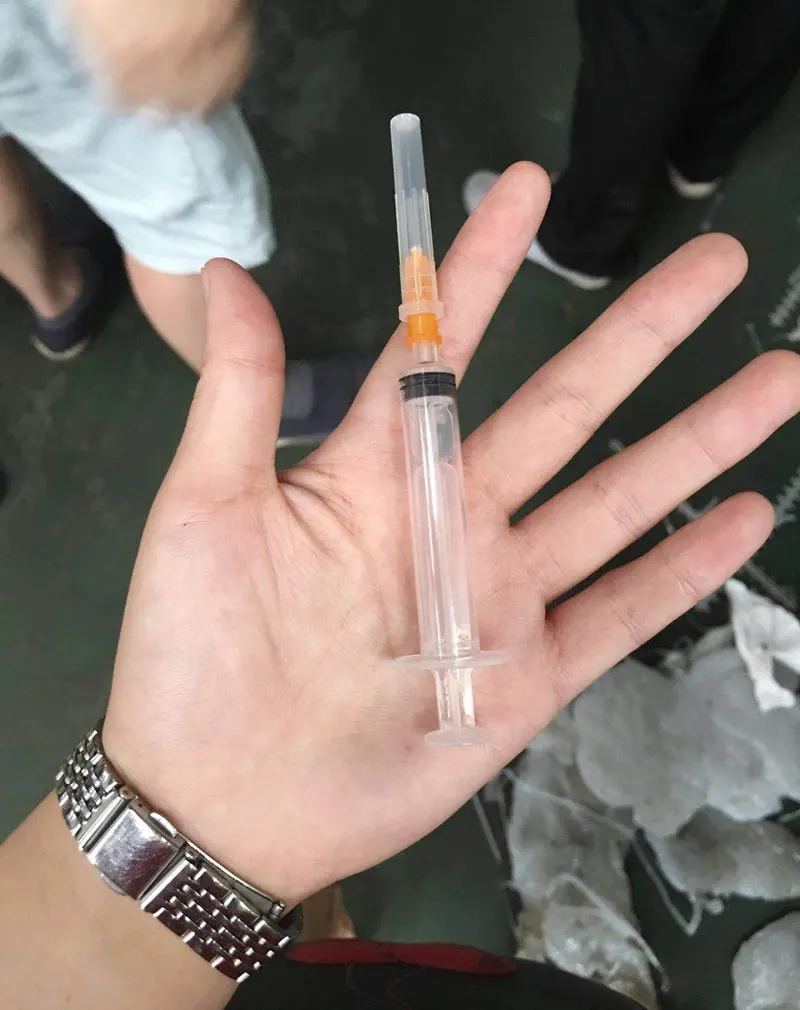

Ningbo haijiang disposable syringe making machine

We supply syringe making machine from 25T to 3000T, including color chips making machines, energy saving injection molding machines, gears making machines, dual clear color injection molding machine bakelite injection molding machines, PET preform injection molding machines, Fixed pump and variable pump injection molding machines, PVC fitting injection molding machines and etc.

118T Injection Molding Machine main technical datas as below;

Parameter	Unit	HJF118-F5
Screw diameter	mm	A	B	C
Screw diameter	mm	35	38	40
Screw I/D ratio	L/D	23.9	22	20.9
shot volumn (theoretical)	Cm³	154	181	201
injection weight(PS)	g	141	165	183
injection rate	g/s	80	95	105
injection pressure	Mpa	219	186	167
screw speed	r/min	0~220
clamp force	KN	1180
opening stroke	mm	340
*space between tie bars (WH)**	mm	370*370
max mould height	mm	400
min mould height	mm	150
ejector stroke	mm	100
ejector force	KN	33
ejector number	PC	5
max pump pressure	Mpa	16
pump motor power	KW	11
heating power	KW	6.5
machine dimension	M	4.21.251.8
machine weight	T	3.5
oil tank capacity	L	210
