Mini desktop plastic injection molding machine price
-
Supplier: Ningbo Haijiang Machinery Manufacturing Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Haijiang China -
Price: $4500.00 /set -
Min. Order: 1 set
| Distance between Tie Bars(Height)(mm): | 110; | Power (kW): | 0.75 kW; |
| Selling Units: | Single item; | Package Preview: | ; |
| Marketing Type: | New Product 2020; | Type: | Tube Shoulder Injection; |
| Showroom Location: | Pakistan,Mexico,Bangladesh; | Warranty: | 1 Year; |
| Local Service Location: | Egypt,Mexico,Russia,Algeria,Bangladesh,Uzbekistan; | Distance between Tie Bars(Width)(mm): | 110; |
| Screw Speed (rpm): | 1 - 220 rpm; | Clamping Force (kN): | 100kN; |
| Injection Weight (g): | 30; | After Warranty Service: | Video technical support,Online support,Field maintenance and repair service; |
| Power(W): | 0.5kw; | Style: | Horizontal; |
| Ejector Stroke(mm): | 30; | Single gross weight: | 45.0 KG; |
| Brand Name: | HAIJIA; | Core Components: | Motor,PLC,Screw; |
| Screw diameter (mm): | 16; | Model Number: | HJK-10T; |
| Automatic: | Yes; | Condition: | New; |
| Plastic Type: | Thermoplastic; | Theoretical Shot Volume(cm³): | 30 cm³; |
| Plasticizing Capacity(g/s): | 30; | Place of Origin: | Zhejiang China; |
| After-sales Service Provided: | Overseas third-party support available,Free spare parts,Field installation, commissioning and training,Online support; | Origin: | China; |
| Video outgoing-inspection: | Provided; | Screw L/D Ratio: | 20; |
| Injection Weight: | 40g; | Weight (KG): | 38.5; |
| Ejector Force(kN): | 5 kN; | Certification: | ISO9001; |
| Ejector Number: | 2; | Machine Type: | Electric; |
| Key Selling Points: | Automatic; | Injection Rate: | 260mm/s; |
| Mold Height(mm): | 50 - 150 mm; | Distance between Tie Bars: | 145mm*145mm; |
| Open Stroke(mm): | 70; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops; |
| Plastic Processed: | PP,PC,ABS,PVC,HDPE,PE; | Plastic injection moulding machine: | injection molding machine; |
| Injection Rate (g/s): | 50 g/s; | Warranty of core components: | 1.5 years; |
| Single package size: | 650X340X180 cm; | Packaging Detail: | container; |
| Machinery Test Report: | Provided; |

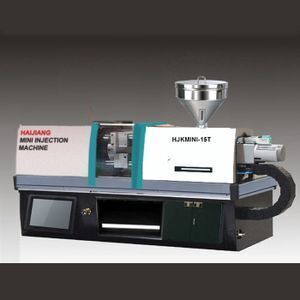

Mini desktop injection molding machine
Apply:
1.Micro precision parts production; 2.long-term or small orders;3.samples for testing ;4.air cleanliness workshop production ;5.for teaching and training;
pursuit the quality of products to be more stable
1.Ultra-high-sprformance dual-core CPU,computing speed 0.13us,shortest cycle control only62.5us,the machine is realized,high-speed and reliable operation,reduce consumption and costs,significantly improve the production efficiency.
2.The servo motor uses24-Bit MECHATROLINK-IIIbus of embedded NC technology yreatly improved plasticizing,injection sw;
3.The servo motor uses 24-Bit Absolute Type Encode,not only power failuer during operation or after power failure replacement of mechanical parts,but also to remember their locations in real time.
4,Server to utilize digital torque feedback control,plus the precision load measuing sensors,the machine can a chivev high accurac measuring the plasticizing;
Peripheral&Auxiliary Equipment
1.drying machine 2.automatic self-loader;3.water gap separator 4.cooling system;
|
Machine parameters |
||
|
Model Number |
HJKMINI-1.0T |
HJKMINI-1.5T |
|
Power |
0.5kw |
0.7kw |
|
Shot weight |
30 grams |
40 grams |
|
Nozzle hole Diameter |
2mm |
2mm |
|
Motor Accuracy |
0.002mm |
0.002mm |
|
Cooling Type |
Water |
water |
|
Power source |
AC220V |
AC220V |
|
Max Mold size |
180*110mm*110mm |
200*140*150 |
|
Heating Band Power |
DC36V |
DC36V |
|
Material |
PC,PS,PP,ABS,TPU |
PC,PS,PP,ABS,TPU |
|
Machine Size |
650mm*340mm*180mm |
650mm*340mm*180mm |
|
Machine weight |
40kgs |
45kgs |

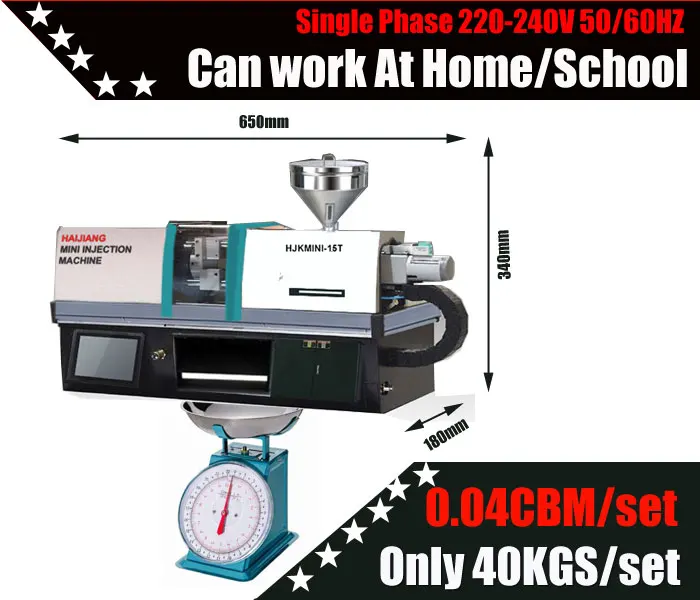

Machine sieze:650mm*340mm*180mm
Machine weight:45 kgs
Suit for material: PS,PC,PP,ABS,PE,TPU
Mould:
NINGBO HAIJIANG MACHINERY MANUFACTURING CO.,LTD., situated in Ningbo Yinzhou Investment & Innovation Center, coversa land of more than 50,000M2.It was established in 1992 and now employs a staff of more than 500 people. with CE and ISO9001
Haijiang Company is a hihg-tech enterprise specialized in manufacturing injection molding machines that mainly covers dozens of speci?cations with injection shot of 45-2,0000g and mold clamping force of 400-15,000KN. Based on the marrow of the trade gained and through years' accumulation, the company has made constant innovation to ensure the machine quality.Parts built into the machines of defferent mold locking forces are all processed under specialized management. HJF series injection molding machines are developed by Haijiang Company on the basis of a collection of the advantages assimilated from all world famous brand machines with optimized design realized by CAD/CAM/CAPP where technical problems such as noise of the entire machine and low energy dissipation are removed and thus the design quality of products is secured. The company adopts advanced equipment and technology and applies scientific management. Besides, it has introduced high-precision full automatic CNC machines fitted with imported electric and hydraulic parts, which have tremendously improved the accuracy and steadiness of the whole machine. Its present products such as HJK and KJF series and widely applied in the electronic, automobile and civil industries.
In order to participate in competition in the world market,the company has clustered a group of high quality technical and managerial personnel with innovative spirit by means of optimized combination fo personnel. The company faces the society and users by acting on the principle of pursuit for frst class and sincere service. We will appreciate friends from all circles who have given their concern and support to Haijiang machines with first class products and first class after service.
- May I know how soon I can get the machine after I transfer the deposit?
Re:Usually, if the quantity is less than 5 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible. - How long the product warranty period?
Re:The product warranty period is 12 months. - How long have you engaged in this industry?
Re:We have been engaged in this industry for more than 20years, Our hot products sold at home and abroad by our own foreign trade department and some trading company. - What kinds of Processing equipment you have?
Re:CNC laser cutting equipment, CNC plasma cutting equipment, CNC flame cutting equipment, numerical control sheet metal processing equipment, 500 tons of hydraulic press,bending machine etc.
-
