Diameter 0.75mm-50mm Material optical glass Sapphire Ruby Fused silica ball lens

Supplier: Changchun Worldhawk Optics Co., Ltd.
Region: Jilin, China
Contact: Ms Lucy liang
Price: $4.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Surface Quality:	<40/20 scratch/dig;	Clear Aperture:	>92%;
Coating:	Upon customer request;	Packaging Detail:	Inner packing-------special protective packing for optical products. Outer packing------carton, Shock absorption material and bubble wrap Transportation-----International Air Transport(UPS DHL FEDEX SF...) Delivery Detail------2-25workdays;
Dia. Tolerance:	+/-0.002mm;	Diameter:	1-150mm;
Shape:	BALL;	Brand Name:	Worldhawk;
Model Number:	WH-BL;	Focal length tolerance:	+/-1% (+/-5% for 400 series);
Place of Origin:	Jilin China;	Supply Ability:	5000000 Piece/Pieces per Month;
Structure:	Round;	Roundness:	0.003-0.005;
Usage:	Optical;	Centration:	3 arc min or better;
Port:	Changchun;	Surface Accuracy:	<2 lambda;
Irregularity:	lambda/2 @632.8nm;	Payment Terms:	T/T,Western Union,paypal;

Product Description

You are here: (0.75mm-50mm optical glass, Sapphire, Ruby, Fused silica, ball lens)

Ball lenses are commonly used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, Solar-photovoltaic and fiber-to-detector coupling.

Worldhawk can provide spherical ball lenses and half ball lenses in a range of substrates for performance in the ultraviolet to the NIR. Such as including H-K9L(N-BK7), Sapphire, CaF2, BaF2, ZnSe or custom materials upon request.

Ball lenses feature short back focal lengths to minimize the distance needed from the ball Lens to the optical fiber. Ball lenses are commonly used to improve signal quality in fiber coupling applications, or for use in endoscopy or bar code scanning applications.

Half-Ball (hemispherical) lenses are ideal for applications such as fiber communication,endoscopy, microscopy, optical pick-up devices,and laser measurement systems.

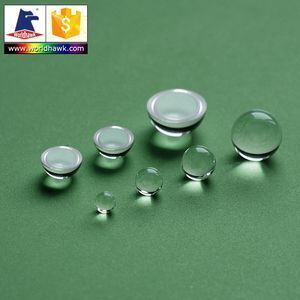

Worldhawk ball lens and half ball lens

Parameters Explaination:

EFL: Effective Focal Length BFL: Back Focal Length
CT : Center Thinkness C : Lens Center

Specifications of ball lens (Half ball lens)

Item	Parameter (Optical glass ball lens; Half ball lens)
Material	K9 (BK7), Optical sapphire(ruby) glass, fused silica, JGS1, ZnSe, Zns, Ge, Caf2, b270, LaF52, Schott glass
Diameter	1~150mm, 1mm, 2mm, 3mm…
Dia. Tolerance	+/-0.002mm
Roundness	0.003-0.005
Surface Accuracy	<2λ
Irregularity	λ/2 @632.8nm
Surface Quality	<40/20 scratch/dig
Clear Aperture	>92%
Focal length tolerance	+/-1% (+/-5% for 400 series)
Centration	3 arc min or better
Coating	Upon customer request

Material specification

Glass Materials	Refractive (nd)	Dispersion Coefficient(vd)	Glass Materials	Refractive (nd)	Dispersion Coefficient(vd)
H-Zlaf90	2.00069	25.43	Sapphire	1.768	72.20
H-Zlaf50D	1.804	46.58	ZnSe	2.403	N/A
H-ZF7LA	1.80518	25.46	Silicon	3.422	N/A
Fused Silica	1.458	67.70	Germanium	4.003	N/A
H-K9L(N-BK7)	1.517	64.20

Material Characteristics

Fused Silica Ball and Half-Ball Lenses:
1,Excellent UV Transmission

(From 200nm to 2.2μm)
2,Low Coefficient of Thermal Expansion

Sapphire and Ruby Ball Lens(Half ball lens):
1,Excellent for Severe Environments
2,High Strength and Hardness
3,High Chemical Stability
4,Ruby Balls are easier to see

H-K9L (N-BK7) Ball Lenses:
1,Can be Used as Fiber Coupling Spheres or Collimating Lenses
2,Ideal Pre-Forms for Aspheric Lenses
3,Available in a Variety of Sizes

High Index Ball Lenses:
1,Index of Refraction of 1.8-2.0
2,High Tolerance
3,High Index for a Closer Focal Distance

¦
Blank Products

Inner package

According to product's size and quantity of your order , we will choose the more suitable inner package to ensure the safety and convenient when transport and use

Test / Production

+ Our Factory

Advanced processing equipment and complete production system are ensure that we can effectively control every aspect of the product process to ensure product quality, and reduce losses and reduce costs!

Company / Cataloge

+ Company

Changchun Worldhawk Optoelectronics Co., Ltd, established in 2010 in China Optical City - Changchun, we have three branches in Changchun, Nanjing and Hong Kong.

Worldhawk is the professional supplier for the optical products with much experience in optics design, research and development, manufacturing and export. We have many experienced engineers and many skilled workers, they are the important guarantee for the higher quality products. We can ensure higher qualified rate because of the precision testing equipment.

We can provide all kinds of optical products processing, coating service, assembling the lens and high-altitude monitoring quipment and so on. We consider our customer relationship to be a valuable asset, We understand that your application is not standard and so we offer customization of all of our products.
