Optical glass Roof prisms Right angle prisms for Binoculars Microscopes and Telescope Eyepieces

Product details
Port:Any port of China Shanghai Shenzhen Changchun...;Surface Quality:40/20,60/40, 40/20, 20-10;
Angle Tolerance:+/- 2 arc seconds;Packaging Detail:Roof Prisms Packing Inner packing-------special protective packing for optical products. Outer packing------carton, Shock absorption material and bubble wrap Transportation-----International Air Transport(UPS DHL FEDEX SF...);
Dimension Tolerance:±0.2mm;Dimension (mm):0.5mm-380mm and customization;
Flatness:1/8 Lambda;Coating:Mirroring coating or customized;
Brand Name:Worldhawk;Material:Optical Glass,N-BK7, UV Fused Silica, CaF2, ZnSe, or Ge etc.;
Clear Aperture:≥90%;Dimension tolerance:±0.1mm~0.03mm;
Place of Origin:Jilin China;Model Number:WH-PR;
Bevel:<0.2±45°;Supply Ability:2000 Piece/Pieces per Month;
Payment Terms:T/T,Western Union,Paypal;
Prism Parameters





+  Roof prisms Amici prisms Right angle roof prisms

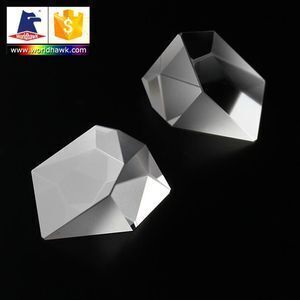

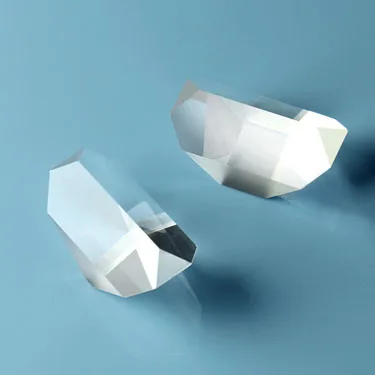

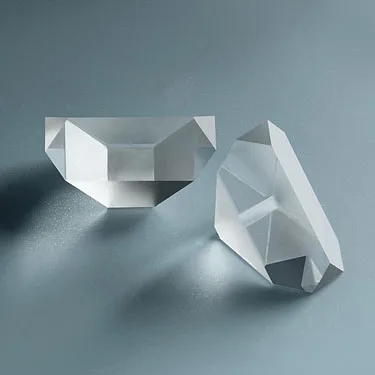

Roof prisms, also called “Amici prisms, Dach prism” or “right angle roof prisms, many name, same prism.



Characteristic for a roof prism is that the beam is split in half, with one half of the beam hitting first one face then the other face, while it is invert for the other half of the beam. Therefore, a roof prism can be used only with some distance to focal planes, or the "edge" of the roof would introduce slight distortions. Furthermore, the angle between the two faces has to be very close to 90°, or image quality would be degraded.
Roof prism deflects the beam, through an angle of 90 degree and inverts the image. For this reason, this prism is perfect for erecting images inverted by the objectives.
Used in Binoculars, Spotting Scopes, Microscopes and Telescope Eyepieces.









+ General Parameters

  StandardHigh Pricision
  MaterialN-BK7, Fused Silica, Custom
  Size0.5mm-380mm
  Size tolerance±0.1mm±0.03mm
  Angle Tolerance<3'<0.5''
  Clear Aperture≥90%100%
  Surface Quality60/40, 40/2020/10, 10/5
  Surface Flatness1/2 lambda, 1/4lambda1/10Lambda, 1/20Lambda
  Parallelism+/-3' , +/-30''<0.5''
  Bevel<0.2mm±45°No Bevel (The Angle is unbroken)
  CoatingUncoated, AR, BBAR, Reflective





Customize
You can customise this product to your needs, please contact us for custom solution.

[ Click here to get quotes ]





+ Processing Equipment:









+ Other Optical Prisms
Prisms are widely used in optical system, which can reflect, deviate and rotate beams of light as well as dispersing their wavelengths.

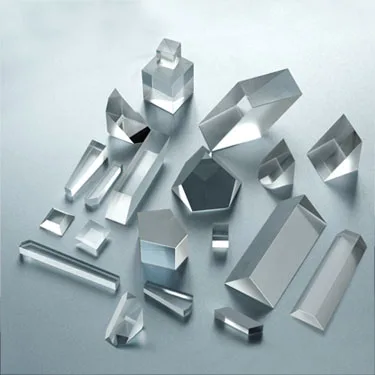

Worldhawk offers many types of high precision prisms including Right Angle Prisms, Dove Prisms, Panta Prisms, Roof Prisms, Beamsplitters, Wedge Prisms, Rhomboid Prisms, Corner Cube etc..,
Worldhawk accepts the following products customized services: micro-prism, special angle prism, high-precision prism ......
Please email to sales at worldhawk.com for get an offer.



 We accept high-precision and small quantities of custom prism services.
