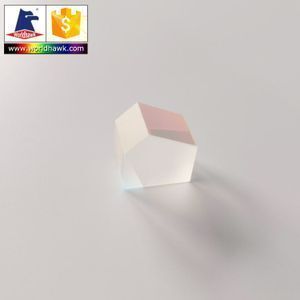

Survey pentagonal prism, Optical Penta Prism with coated

Product details
Place of Origin:Jilin China;Model Number:WHK- RAP;
Size Tolerance:0.1-0.03mm;Flatness:1/8Lambda;
Surface Quality:10/5,60/40 10/5;Angle Tolerance:3''~5'',<3' or <0.5";
Dimension Tolerance:0.03~0.15mm;Coating:Uncoated AR BBAR Reflective;
Packaging Detail:Inner packing-------special protective packing for optical products. Outer packing------carton, Shock absorption material and bubble wrap Transportation-----International Air Transport(UPS DHL FEDEX SF...);Payment Terms:T/T,Western Union,PayPal;
Material:Optical Glass,H-K9L N-BK7 Fused Silica Sapphire;Parallelism:+/-30" or <0.5";
Supply Ability:2000 Piece/Pieces per Month Upon the quantity;Clear aperture:>90% or 100%;
Bevel:<0.2mm ±45° or No Bevel;Brand Name:WORLDHAWK;
Surface Flatness:1/4Lambda or 1/20Lambda;Size:0.5mm-380mm;
Port:Any port of China Shanghai Shenzhen Changchun...;

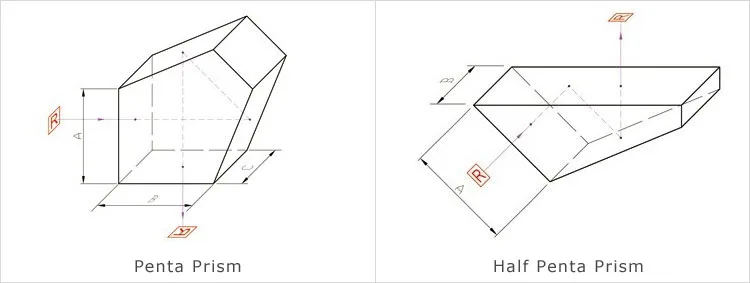

Prism Parameters





+ Survey pentagonal prism, Optical  Penta Prism with coated



An incident beam can be deviated by 90 degreee without inverting or reversing through a penta prism. It has five sides, four of them polished. Two reflective sides are coated with metal or dielectric HR coating and these two sides can be blackened. The deviation angle of 90deg will not be changed if the penta prism is slightly adjusted, this will be convenient to install it. The reflecting surfaces of this prism must be coated with a metallic or dielectric reflective coating.



It is widely used in laser level, camera viewfinder, measuring instruments, surveying instruments, image observation system, alignment and optical tooling.











+ Survey pentagonal prism

  ParametersStandardHigh Pricision
  MaterialN-BK7, Fused Silica, Custom
  Size0.5mm-380mm
  Size tolerance±0.1mm±0.03mm
  Angle Tolerance<3'<0.5''
  Clear Aperture≥90%100%
  Surface Quality60/40, 40/2020/10, 10/5
  Surface Flatness1/2 lambda, 1/4lambda1/10Lambda, 1/20Lambda
  Parallelism+/-3' , +/-30''<0.5''
  Bevel<0.2mm±45°No Bevel (The Angle is unbroken)
  CoatingUncoated, AR, BBAR, Reflective





Customize
You can customise this product to your needs, please contact us for custom solution.

[ Click here to get quotes ]



+ Processing Equipment:









+ Other Optical Prisms
Prisms are widely used in optical system, which can reflect, deviate and rotate beams of light as well as dispersing their wavelengths.
Worldhawk offers many types of high precision prisms including Right Angle Prisms, Dove Prisms, Panta Prisms, Roof Prisms, Beamsplitters, Wedge Prisms, Rhomboid Prisms, Corner Cube etc..,
Worldhawk accepts the following products customized services: micro-prism, special angle prism, high-precision prism ......
Please email to sales at worldhawk.com for get an offer.



 We accept high-precision and small quantities of custom prism services.

                                                                                Click on the image above to get more product information!



-
