HX8AM-H High Power 5.25hp Horizontal Mounting Vane Air Motor for Industry Machinery

Supplier: Rudong Hongxin Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lynn Zhang
Price: $200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Vanes:	4 Vanes or 8 Vanes available;	Power:	5.25hp;
Speed@Max. Power:	2500RPM;	Port:	Shanghai or Ningbo;
N.W.:	10.7kg;	Place of Origin:	Jiangsu China;
Supply Ability:	200 Set/Sets per Month;	Speed@Max. Torque:	300RPM;
Certification:	CE/ISO9001:2015;	Packaging Detail:	Foam Box,Carton/Plywood case;
Rotation:	REV;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Air Consumption:	175CFM;	Max. Torque:	21Nm/185lb.in;
Brand Name:	HONGXIN;

Product Description

Product Application

With compressed air as medium and make use of expansion function of it, blade air motor converts pressure energy into mechanical energy.

It can be operated in tough environment which is damp, high temperature, excessive dust or other poor working environment.

So it is widely used as power in mine rock drilling or loading machinery and more popular in many fields, e.g. ship, offshore platform,metallurgy,papermaking and petrochemical industries, etc.

HX8AM-H
Operation Date at Max. Power	Power	hp/kW	5.25/3.90
	Torque	Nm/Ib.in	14.40/132.00
	Rotate Speed	rpm	2500
	Air Consumption	m³/h	293
	Air Consumption	cfm	175
Maximum Torque	Rotate Speed	rpm	300
Maximum Torque	Torque	Nm/Ib.in	21.00/185.00

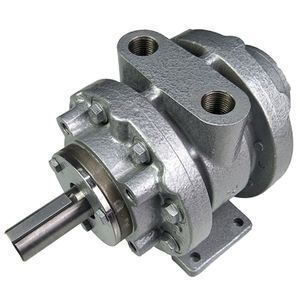

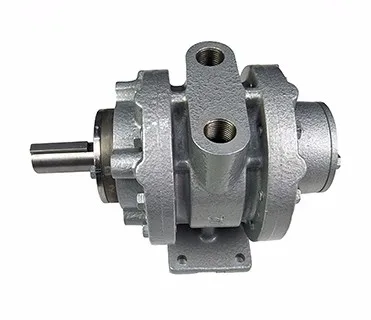

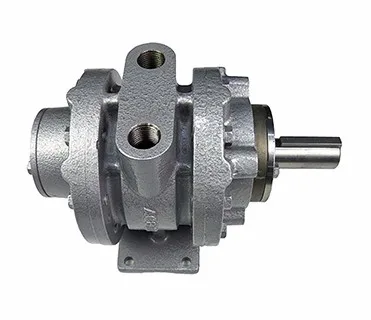

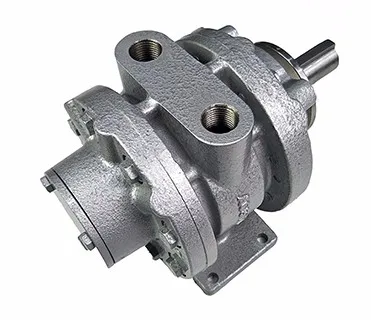

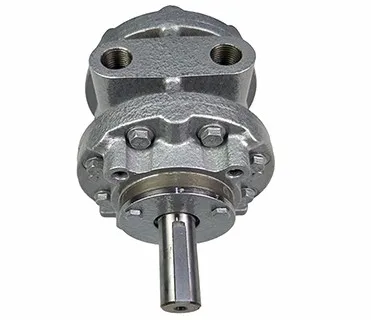

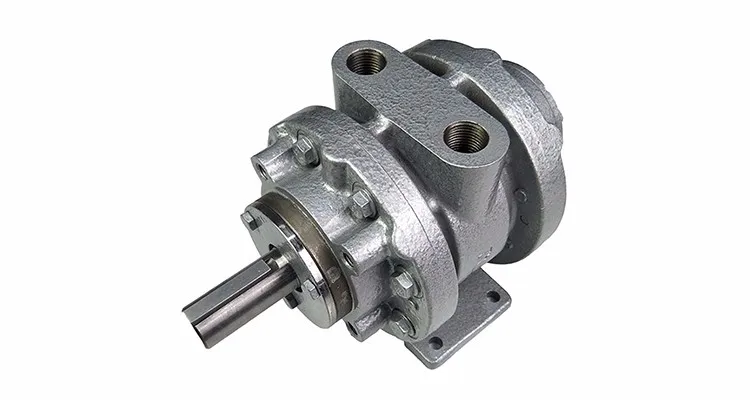

Detailed Image

Main Features

•Variable speed.
•Nonelectrical sparking.
•Instantly reversible.
•Cool running.
•Compact and portable.
•Minimum maintenance.
•Will not burn out.
•Low price.
•Operate in all positions.
•Low-shock starts.
•Self-sealing vanes.
•Long-life accessories.
•Wide range of applications

Packing & Delivery

Packaging
Size	250mm(L) * 200mm (W) * 200mm(H)
Weight	12kg
Packaging Details	1 plywood case per set. 2 If container is too tight,we will pack it according to customers special request
