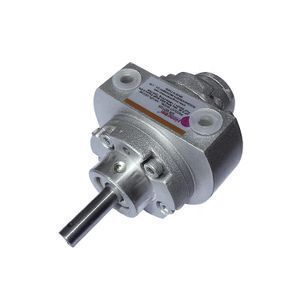

HX1UP Vane Air Motor Aluminium Body For Fiberglass Chopper Gun Fiberglass Cutter Gast Model Pneumatic Motor

Supplier: Rudong Hongxin Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lynn Zhang
Price: $192.00 /set
Min. Order: 1 set

Click here to contact

Product details

Rotaion:	CCW;	Certificate:	CE Certificate;
Port:	Shanghai;	Speed@Max. Torque:	500rpm;
Model Number:	HX1UPL-NCC-92;	Place of Origin:	Jiangsu China;
Max. Torque:	0.68Nm/6.00lb.in;	Speed@Max. Power:	6000rpm;
Port Size:	NPT 1/8'';	Power:	0.45hp/0.33kW;
Packaging Detail:	Foam cartoon, plywood case;	Warranty:	1 year;
Air Consumption:	27CFM;	Brand Name:	HONGXIN;
Package Preview:	;	Certification:	ce;
N.W.:	0.6kg;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Vanes:	4 or 8 vanes available;	Supply Ability:	100 Set/Sets per Month;

Product Description

Product Application

With compressed air as medium and make use of expansion function of it, blade air motor converts pressure energy into mechanical energy.

It can be operated in tough environment which is damp, high temperature, excessive dust or other poor working environment.

So it is widely used as power in mine rock drilling or loading machinery and more popular in many fields, e.g. ship, offshore platform,metallurgy,papermaking and petrochemical industries, etc.

HX1UPL-NCC-92
Operation Date at Max. Power	Power	hp/kW	0.45/0.33
	Torque	Nm/Ib.in	0.58/5.25
	Rotate Speed	rpm	6000
	Air Consumption	m³/h	47
	Air Consumption	cfm	27
Maximum Torque	Rotate Speed	rpm	500
Maximum Torque	Torque	Nm/Ib.in	0.68/6.00

Detailed Images

Main Features

•Variable speed.
•Nonelectrical sparking.
•Instantly reversible.
•Cool running.
•Compact and portable.
•Minimum maintenance.
•Will not burn out.
•Low price.
•Operate in all positions.
•Low-shock starts.
•Self-sealing vanes.
•Long-life accessories.
•Wide range of applications

Packing & Delivery

Packaging
Size	200(L) * 150(W) *150(H)mm
Weight	1kg
Packaging Details	Plywood case Plywood is a material manufactured from thin layers or plies of wood veneer that are glued together with adjacent layers.It is an engineered wood from the family of manufactured boards which includes medium-density fibreboard (MDF) and particle board (chipboard).
