Pneumatic motor, 1.7HP, 3000RPM, HX4AM, blade air motor
-
Supplier: Rudong Hongxin Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Lynn Zhang -
Price: $192.00 /set -
Min. Order: 1 set
| Finish: | Gray; | No Load RPM: | 3000; |
| Max. Air Pressure: | 100 psi; | Port: | Shanghai or Ningbo; |
| Supply Ability: | 300 Set/Sets per Month; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
| Housing Material: | Cast Iron and Aluminum; | Packaging Detail: | Foam Box / Plywood case; |
| Place of Origin: | Jiangsu China; | Brand Name: | HONGXIN; |
Performance Overview
VANE AIR MOTOR | ||||||||||
Model | Operation Data | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air Consumption | Rotate Speed | Torque | |||||
hp | kW | Nm | lb.in | rpm | m³/h | cfm | rpm | Nm | lb.in | |
HX1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.60 |
HX1UP | 0.45 | 0.33 | 0.58 | 5.25 | 6000 | 47 | 27 | 500 | 0.68 | 6.00 |
HX2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.10 |
HX4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56.00 |
HX6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115.00 |
HX8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185.00 |
HX16AM | 9.50 | 7.00 | 34 | 290 | 2000 | 475 | 275 | 300 | 43 | 372 |
Photoes & Drawings
HX4AM-H(GAST AIR MOTOR MODEL: 4AM-FRV-13C) HX4AM-V(GAST AIR MOTOR MODEL: 4AM-NRV-22B)

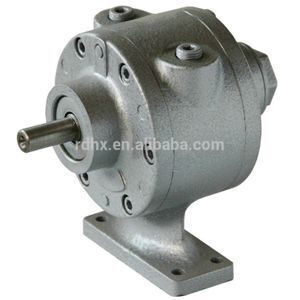

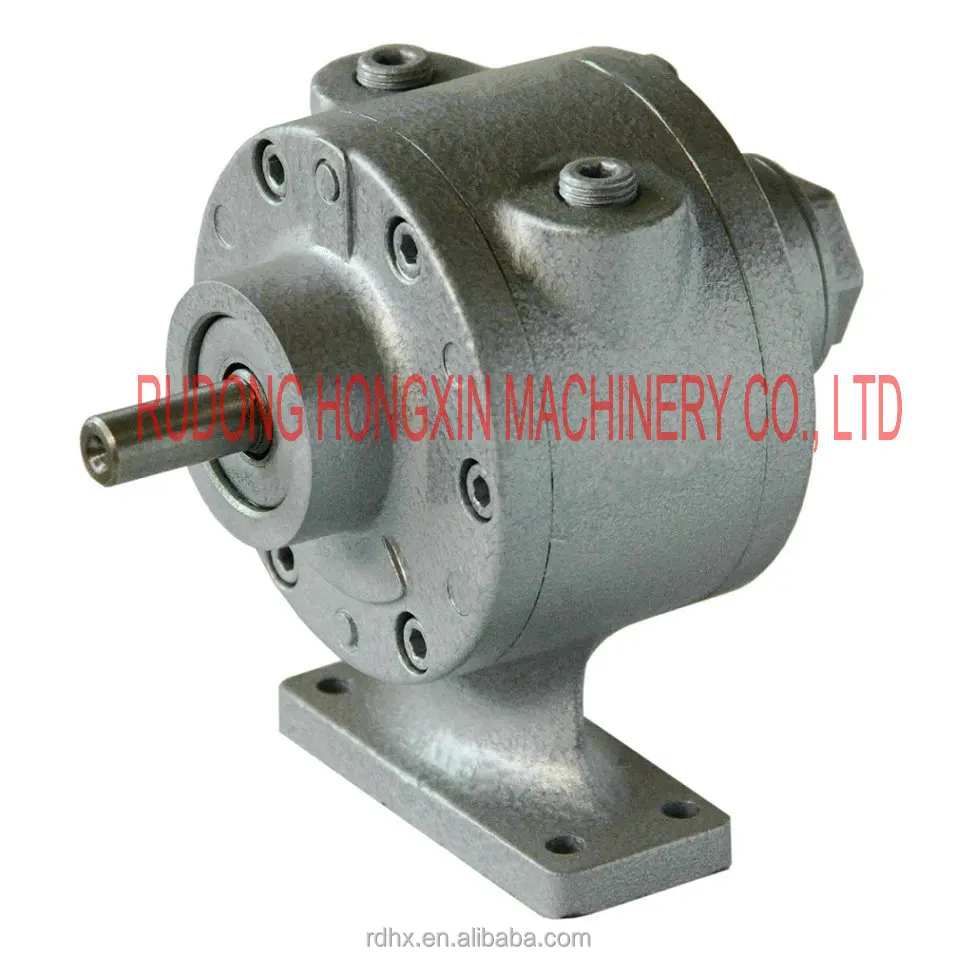

FOOT MOUNTING FACE MOUNTING
HX4AM-F110(
IEC #72 MOUNTING FRAME SIZE D71 NEMA 56C MOUNTING
HX4AM-FRV-92

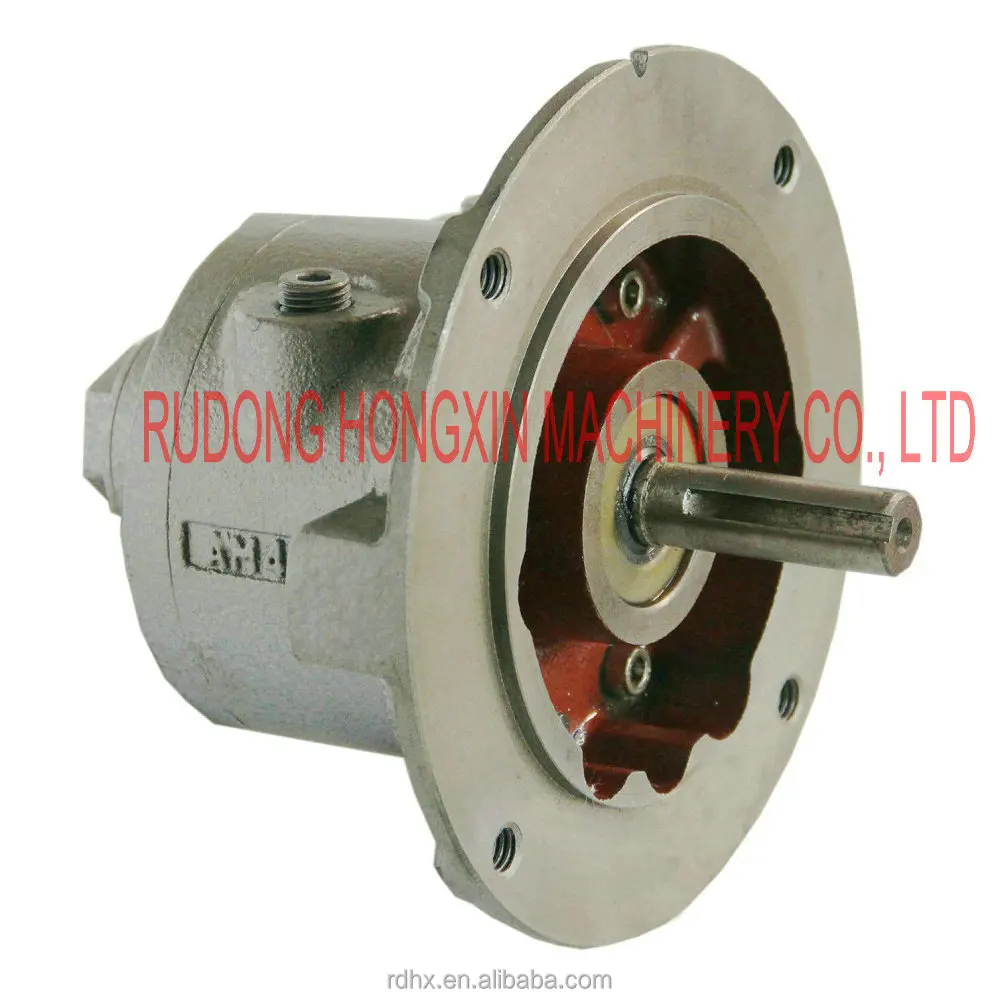

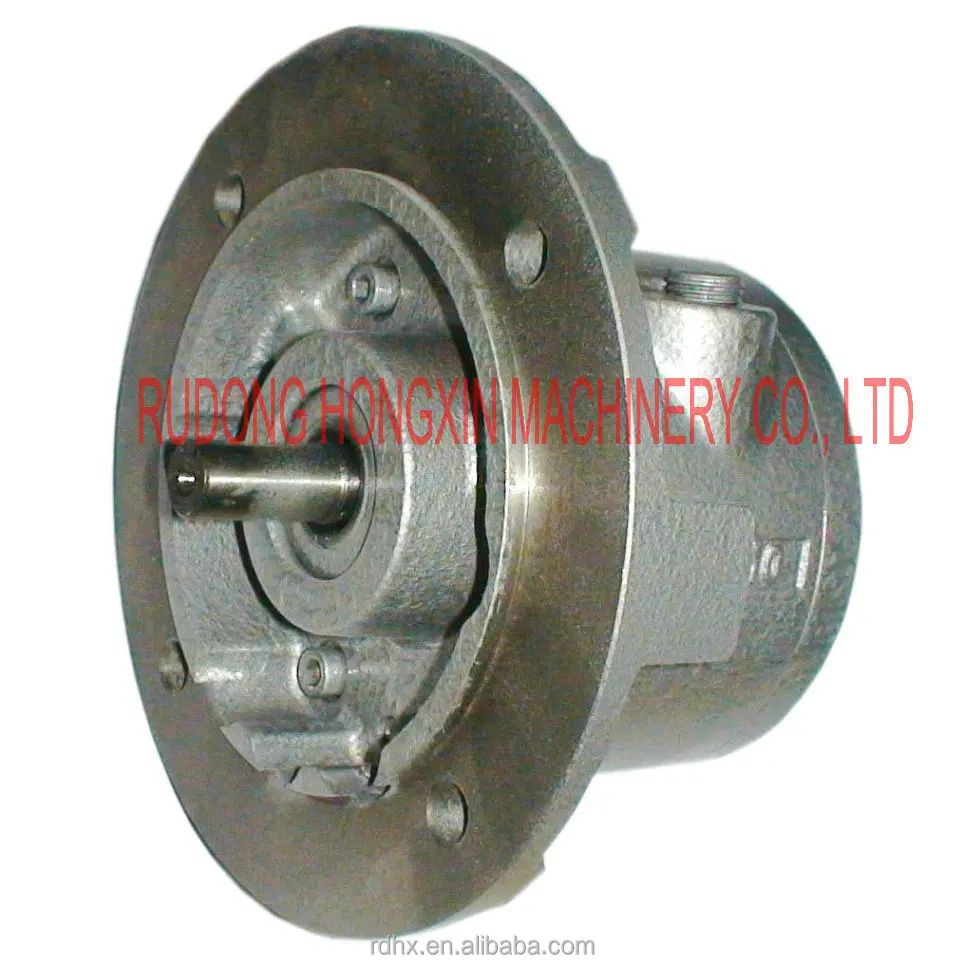

FACE MOUNTING FACE MOUNTING
-
