5in1 Heat Press 15"x12" 14" Vinyl Cutter Plotter T-Shirt Sticker Print Usb Port

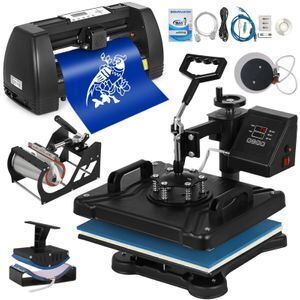

This listing offers you a 5 in 1 15" x 12" Heat Press Machine and a 14 Inch Vinyl Cutter Machine with Signmaster Software!!

5 in 1 15" x 12" Heat Press Machine

This 5 in 1 heat press machine can be used for T-shirts, caps, ceramic plates, ceramic tiles, mugs, coasters, mouse pads, jigsaw puzzles, lettering, other misc. fabrics & materials. It can transfer colorful pictures and characters of sublimating and dissolved printing ink onto ceramics, glasses and textiles such as cotton, flax, chemical fiber, nylon, etc. This all-in-one press includes flat platen, mugs and plates. The swing-away heat press boasts all of the must-have attachments. It has a built-in Teflon coated 12" x 15" (38X30cm) heat platen with a full range of heating coils to allow for consistency throughout its surface. The digital timer control is adjustable up to 999 seconds. The features a digital temperature gauge ranging from 0 - 250ºC (about 480ºF).

The machine is of metal and plastic construction, sanding surface,comfortable feeling. Automatic electronic timing when single table integrated, automatic alert when processes is completed. Built-in fuse for safe using. Slides design make the changing of the parts easier and fast, save your time and effort. Adjustable feet for unevenly floor.

Novel, fashion, high-grade design, reasonable structure, easy operate.
Large 15" x 12" transfer element - The 15" x 12" (38X30cm) heat platen provides a big surface to transfer onto flat surfaced items such as T-shirts, ceramic plates, mouse pads, jigsaw puzzles etc.
Digital LED controller - Preset the desired temperature and timer. Intelligent audible alarm after the transfer done.
Full 360-degree rotation of swing-away design- Allows the heating element to be moved safely aside and reduce the chances of accidental contact.
Full-range pressure-adjustment knob - This allows the pressure to be adjusted according to the thickness of the material you're transferring to.
Teflon-coated platen press element- The surface is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.
2 4/5" Long arm handle- Comfortable rubber grip for everyday use and long production runs.
Detachable lower platform - It is elevated with dual supports. Easily exchange to other elements.
Adjustable multi-spring balancer - Allows pressure to be more evenly distributed across the entire platen when it is closed.
4/5" thick heating board - Built-in structural support to maintain flatness. Warm up quickly and offer even heating.
Upgraded aluminium alloy cradle - Detached cradle for use of the mug elements. Compact size and lightweight, as compared to standard mug cradles.

14 Inch Vinyl Cutter Machine with Signmaster Software

This 14" Professional Vinyl Cutting Plotter comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork,and draw your own shapes! It Works great for advertising industry,car beauty industry,fashion design,etc.

Contour Cutting - is simple with the artcut software. Comes with illuminated LCD screen and large control panel buttons. Adjustable speed and force is available by the touch of a button. The digital readout makes for accurate and precise settings. Emergency stop/start function allows stop and restart.

Signmaster software is a professional-quality, extremely easy-to-use program that allows you to cut virtually any shape or design with your electronic cutting machines. This one-of-a-kind program gives you the ability to use your fonts, import custom artwork, and draw on your own shapes! The possibilities are endless!

In this version, if you have an image that has many colors in it, you can easily isolate each color and cut them separately

Print and cut capability (contour cutting) for this vinyl cutting plotter

3D-shadow (drop-shadow feature)

Pro gives users the ability to import a variety of vector and raster images from external sources

Works with your installed TrueType and OpenType fonts

Works with thousands of free TrueType Fonts including Dingbat/Wingding Fonts

Import various file formats, including SVG and PDF

Drawing tools to draw and edit shapes

Weld overlapping letters and shapes together

Select styles, including shadow and blackout, to change the look of your letters and shapes with just a few clicks

Cut & Simple Print

Save and share your design layouts

Free technical support and access to professionally made video training series

Aluminum shaft adopts whole precision processing

Suitable for various paper sizes

Adjustable digital force and speed to handle the cutting process

Advanced design allows adjustment of cutting force and speed while working

128K-2M memory, DM/PL, HP/GL language

Compatibility: DM/PL, HP/GL language. System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10 (32& 64).

NOT compatible with Mac system when used with this cutter

System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10(32& 64)

[Works Cooperatively]- 14 inch vinyl cutter, together with 5 in 1 heat press, enables quick design and product making, a nice combination for art business.

[Flexible Cutting]- Plotter machine cutter pressure: 10-500g. Adjustable.

[2 Rollers]- 2 fully adjustable pinch-rollers allow you to use a flexible range of materials. Roland compatible blade holder gives you access to the most economical blades available.

[360-degree Rotation]- Swing-away design of heat press allows the heating element to be moved safely aside and reduce the chances of accidental contact.

[Teflon-coated Platen Press Element]- The surface is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.

User Manual is included in the attached USB flash disk.

NOT compatible with IOS system!

Feeding and Cutting Capacity

Professional vinyl cutting plotter. Maximum paper feeding capacity: 370 mm (14.6inch). Maximum actual cutting width: 350 mm (13.8 inch). Advanced design allows adjustment of cutting force and speed while working.

Large 12" x 15" Transfer Element

Heat platen provides a big surface to transfer onto flat surfaced items such as T-shirts, ceramic plates, mouse pads, jigsaw puzzles etc. 4/5" thick heating board with built-in structural support to maintain flatness. Warms up quickly and offers even heating.

Signmaster Software

Extremely easy-to-use program with endless possibilities allows you to cut virtually any shape or design with your cutting machine. Gives you the ability to use your fonts, import custom artwork, and draw on your own shapes!

Humanized Design

Full-range adjustment knob allows heat transfer pressure to be adjusted according to material thickness. Comfortable 2 4/5" long rubber grip for everyday use. Detachable lower platform is elevated with dual supports. Easy exchange to other elements.

Overload Protector Replacement

A small red button on the control box of heat press will pop-up when voltage is unstable or too high, thus providing protection for control box as well as heat platen.

Power and USB Interface

USB connection of vinyl cutter is accomplished through serial conversation to support the long-distance data transmission. Equipped with 110V 60Hz power cable, perfectly used in USA.

5 in 1 15" x 12" Heat Press Machine

Temperature Range: 0 - 480ºF (0 - 250ºC)

Timer Control: 0 - 999 seconds

Adjustable Height: 13 1/2" to 17"

Wattage: 1250W

Power Input: 110V

Cord Length: 4.5"

Dimension (w/ platen press): 15 1/4"L x 15"W x 17"H

Platen Press (telfon-coated): 12" x 15" (38X30cm)

Hat/Cap Press: 6"x 3" (curved)

Mug Press:3"-3.5"diameter (11OZ)

Plate Press #1: 5" max diameter

Plate Press #2: 6" max diameter

14 Inch Vinyl Cutter Machine with Signmaster Software

Voltage: 110V AC, 60 Hz

Blade Types:Standard, Roland Compatible, 2mm Dia

Motor Type:Stepper Motor

Interface:USB port

Max Paper Feed: 370mm (14.6 inch)

Max Cutter Width: 350mm (13.8 inch)

Cutter Pressure: 10-500g

Cutting Speed: 10-800mm per second

Number of Pinch Rollers: 2

Memory: 128K-2M

Positioning: Manual

Language: DM/PL, HP/GL

Repetition Accuracy: 0.005" (0.127 mm)

System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10(32& 64)

Gross Weight: 22 lb (10 kg)

Package Dimensions (L x W x H): 26" x 13.8" x 13" (66 x 35 x 33 cm)

5 in 1 15" x 12" Heat Press Machine

1 X Fully-assembled Machine with Platen Press

1 X Hat Press

1 X Mug Presses

2 X Plate Presses

1 X Removable Silicone Pad and Cotton Pad

1 X Wrench & Screwdriver

1 X Operating Manual

T-shirts, cups and hats are NOT included

14 Inch Vinyl Cutter Machine with Signmaster Software

1 X 14 Inch Vinyl Cutter Plotter Machine

1X SIGNMASTER Software

1 X Blades Holder

3 X Blades

1 X Pen Holder

1 X USB Cable

1 X Serial Cable

1 X Power Cord

1 X USB Driver

1 X User Manual
