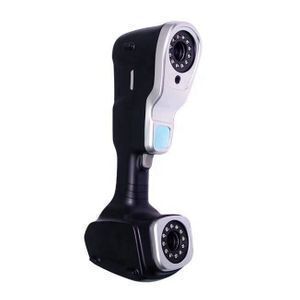

2019 new high accuracy handheld portable laser 3d scanner for big object

Product details
Package Type:waterproof case and carton case;Single gross weight:9.2 KG;
Selling Units:Single item;Model Number:AXE-G7;
Brand Name:HIM;Model:AXE-G7;
Single package size:380X180X105 cm;Package Preview:https://sc02.alicdn.com/kf/Ha08f2916d2e4474eaaf36c315c0529ecE.png_640x640.png;
Place of Origin:Zhejiang China;Function:big range scanning;

2.3 Feature

High precision

- Volumetric accuracy is up to 0.02mm+0.035mm/m

- Accuracy far exceed normal hand-held scanner

Quick measurement

- Double scan area

- Cut half quantity of sticker

- No need to work with global photogrammetry system

Fast speed

-480000measures/s

-7 red crossed lasers

-single red laser to scan deep hole

Portable and User-Friendly

-easy to perform 3D measurement for large volume individually

Dynamic Measurement

--secure full freedom of movement between scanner and object.

Stability & Convenience

-device and cable integrate in one interface

2.5 Parameter

Chart1. IAXE-G7 technical parameter

Type

IAXE-G7

Laser source

7 red laser crosses +1 extra laser

Scan deep hole

support

Measurement rate

480,000 measures/s

Laser class

Ⅱ(eye safe)

Resolution

0.1mm

Accuracy

(300mm ball stick)

Up to 0.02mm

Volumetric

(without extra device)

0.02mm+0.035mm/m

Stand-off distance

450mm

Depth of field

500mm

Output format

. ply,.xyz,.dae,.fbx,.ma,.obj,.asc,.stl or customized

Work temperature

-10~40℃

Interface mode

Gigabit Lan

2.5 Application

Ø Automobile manufacturing

Ø Aerospace

Ø Power generation

Ø Model manufacturing

Ø Casting inspection

Ø Construction machinery

Ø Design inspection

Ø Architecture sculpture

3.Configuration

The production capacity of AXE 3D scanner is about 400 sets per year. The accessories are adequate and can deal with emergency situation.

Chart2. AXE standard configuration

Component

Quantity

3D scanner

1

Calibration plate

1

Combination cable

1

Power adapter

1

6mm reflective marker

4000

Reference bar

2

Coding point

400

Waterproof case

1

ScanViewer software

1

4 Customer Support

4.1 Training

Our goal is to develop skills by providing flexible training according to participants’ level of knowledge.

To ensure training quality and consistency, our team of experienced trainer draw on training plans with other tools to clearly explain train objectives, introduce theory, guide hands-on practice and assess student progress.

4.2 Maintance

Scantech offer multilingual service and support to ensure satisfactory solution.

We promise 1-year warranty after sale. Take advantage of worry-free maintance and global repair coverage for all of your hardware and software, we will have a plan suited to your needs while your device is on service time.



Application :



5.1 Car design
