Selling Units: | Single item; | Phase: | Three Phase; |
Place of Origin: | China; | Brand Name: | Telebahn; |
Warranty: | 3 Years; | Package Type: | 80pcs/carton; |
Certificate: | CE Certification; | Material: | Thermoplastic UL94-V0; |
Imax: | 40KA (8/20us); | Application: | Protecting photovoltaic system; |
Single package size: | 55X32X27 cm; | Enclosure Color: | white base and purple module; |
Base: | integrated base for easy installation; | Max. continuous d.c voltage Uc: | 1000V; |

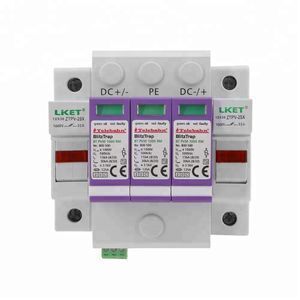

Product name: | 1000V 40KA solar photovoltaic DC power supply system surge protector; | Current Type: | DC; |
Single gross weight: | 21 KG; | Type/Class: | Class I; |
Product introduction:
This product is applied in photovoltaic system, the max, PV voltage up to Ucpv=800V dc, protecting photovoltaic inverter and so on. Designed according to GB 18802.1/IEC 61643-1, YD/T 1235.1.
Main character:
1. High discharge capacity, quick response, pluggable.
2. Approved fault-resistant circuit, consist of three varistors and thermal disconnection device.
3. Multi functional for conductor and busbars.
4. Window will display red when fault occurs, also provide remote alarm termal at the same time.
Parameters:
Type | BT PVM 1000 RM/2P | |
Art.-No. | 800 500 | |
Max.PV voltage | Un | ≤1000V |
DC voltage (max.continuous voltage) | Uc | 1060V |
Norminal discharge current (8/20) | In | 20kA |
Max. discharge current (8/20) | Imax | 40kA |
Voltage protection level for In | Up | ≤3.6kV |
Voltage protection level at 5kA | Up | ≤2.2kV |
Response time | tA | ≤25ns |
Operating temperature range | Tu | -40°C...+80°C |
Cross-sectional area | 1.5mm2-25mm2 solid/35mm2 flexible | |
Mounting on | 35mm DIN rail | |
Enclosure material | Purple (module)/light gray (base) thermoplastic, UL94-V0 | |
Dimension | 2 mods | |
Test standards | YD/T 1235.1; GB 18802.1; IEC 61643-1 | |
Type of remote signaling contact | Switching contact | |
Switching contact | AC:250V/0.5A;DC:250V/0.1A;125V/0.2A;75V/0.5A | |
Cross sectional area for remote signaling contact | Max. 1.5mm solid/flexible |
