Brand Name: | Telebahn; | Nominal voltage: | 230VAC; |
Material: | Alumimum; | Rated Voltage: | 230V; |
Model Number: | BT PDU 06; | Certificate: | CE Certification; |
Place of Origin: | Guangdong China; | Rated Current: | 10KA; |
Indication of disconnector: | Red led light indicates fault; | Grounding: | Standard Grounding; |
Single package size: | 55X32X27 cm; | Selling Units: | Single item; |
Package Type: | 55x32x27cm, 5pcs/carton; | Type: | Extension Socket; |
Single gross weight: | 6 KG; | Product name: | PDU plug and socket 6 outlet surge protector power; |

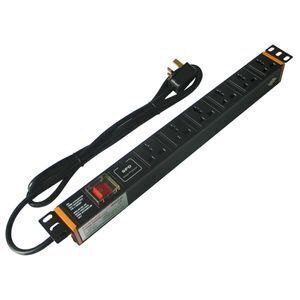

220V 10KA PDU 6 outlet SPD transient voltage surge protectors for cabinet
Product introduction:
220V 10KA PDU 6 outlet SPD transient voltage surge protectors for cabinet
2016 China new 230V multiple socket Class III power supply surge arrester
Product Description:
Multiple socket outlet for protecting electronic equipment from surge damages. Applied in SPD Class III (Class D) for single phase various power supply system.Designed according to GB 18802.1 / IEC 61643-1.
Main character:
1. High discharge capacity, low voltage protection level
2. Quick response
3. Green light indicates normal
4. Can be installed in a 19" panel
Parameters:
Type | BT PDU 06 | |
Art.-No. | 830 240 | |
Nominal voltage | UN | 230V |
Rated voltage (max. continuous a.c. voltage) | Uc | 320V |
Nominal discharge current (8/20µs) | In | 3KA (L–N), 5KA (L+N–PE) |
Combination wave | Uoc | 6KA (L-N),10KA (L+N-PE) |
Voltage protection level at In | Up | ≤1.15KV (L-N), ≤1.5KV (L/N–PE) |
Response time | tA | ≤25ns (L-N) ≤100ns (L/N-PE) |
Max. Back up fuse | 16A gL/gG | |
Short-circuit withstand capability at max. backup fuse | 6kArms | |
Operating temperature range | Tu | -40°C...+80°C |
Terminal wires | 1 mm2, length 120 mm | |
Enclosure material | Aluminum | |
Test standards | YD/T 1235.1; GB 18802.1; IEC 61643-1 | |
Certification | CE (LVD, EMC) |
