Color: | purple; | Model Number: | IC 04; |
Single package size: | 55X32X27 cm; | LCD indicator: | 0-9999; |
Mounting on: | 35mm DIN rail; | Brand Name: | Telebahn; |
Warranty: | 3 Years; | Place of Origin: | Guangdong China; |
Product name: | 4 digits LCD display lightning counter for surge current; | Certificate: | CE Certification; |
Single gross weight: | 12.8 KG; | Enclosure Material: | Purple thermoplastic UL94-V0; |
Type: | Surge protector accessory; | Selling Units: | Single item; |
Power supply: | 3V battery; | Package Type: | gross weight/unit: 0.12kgs, 98units/carton, carton dimension: 55X32X27cm, gross weigh/carton: 12.8kgs.; |
Application: | Counting the number of current discharge; |

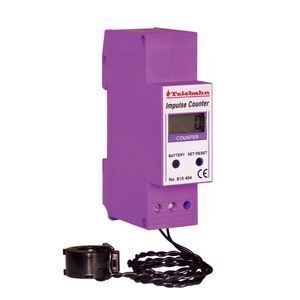

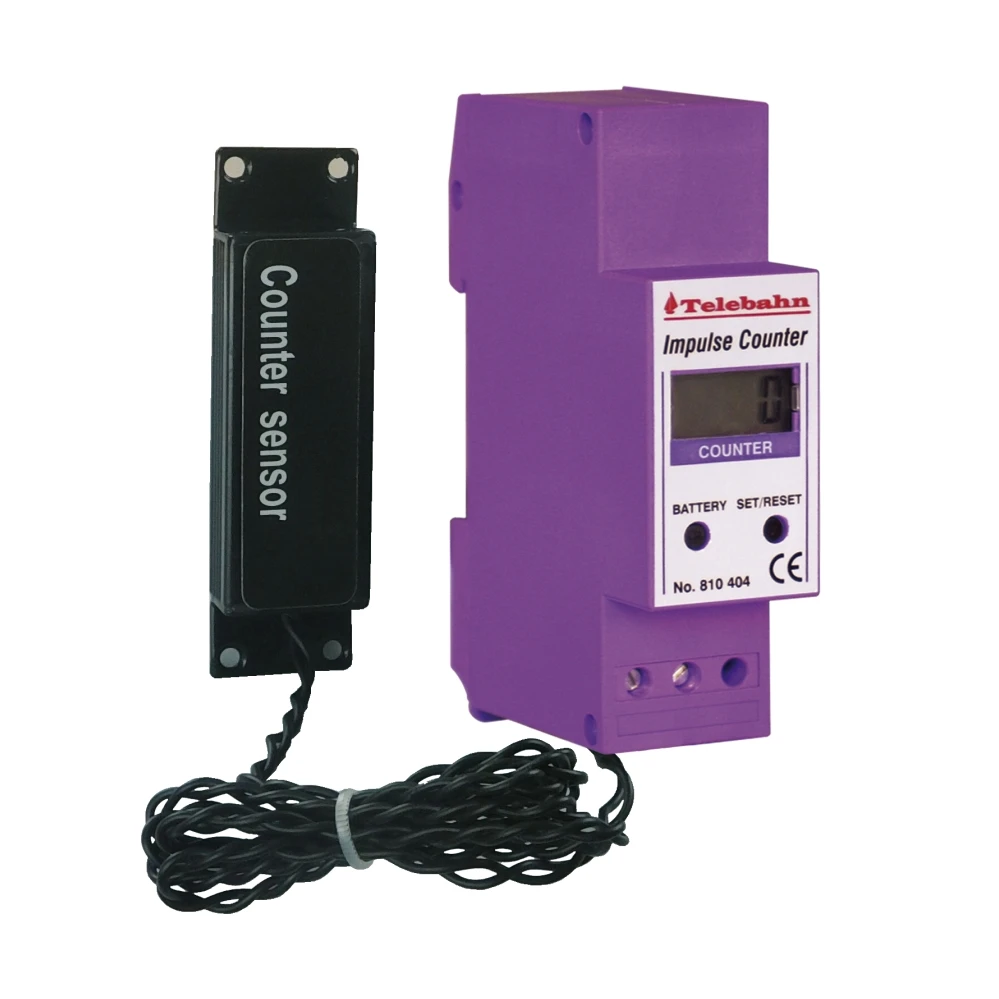

4 digits LCD display lightning counter for surge current
Product description:
For counting the number of current discharges by surge protective devices to earth. The counter with 3V battery and battery low indication, 3 digits or 4 digits LCD display with set and reset function.
Main character:
1.1.5 standard module width

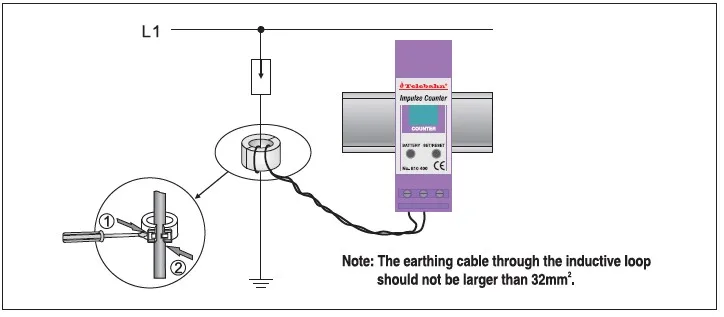

2. Inductive loop (feed through with the earthing line of surge protective devices)
3. Provided with 3V battery and change indication, 3 digits or 4 digits LCD display with set and reset function
4. Press the button BATTERY continuously, if display HI, it means the battery’s power is adequate, if display LO, it means the battery’s power is inadequate (i.e low), the battery should be replaced.
5. 1m long inductive twisted pair.
Parameters:
Type | IC 04
|
Art.-No. | 10 404 |
Response behavior of impulse current | 1kA, rise time 8-10µs |
Sequence of impulse | >1s |
LCD indicator | 0-9999 |
Inductive line | Twisted-pair 1m long |
Power supply | 3V battery, Type: CR123A, exchangeable |
Service life of battery | >2.5years |
Enclosure material | Purple thermoplastic, UL94-V0 |
Mounting on | 35mm DIN rail |

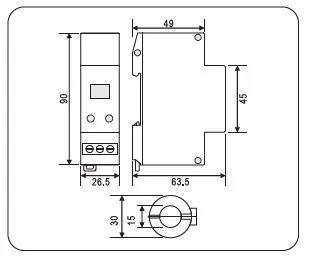

Dimension | 1.5 mods |
Certification | CE (LVD, EMC) |
