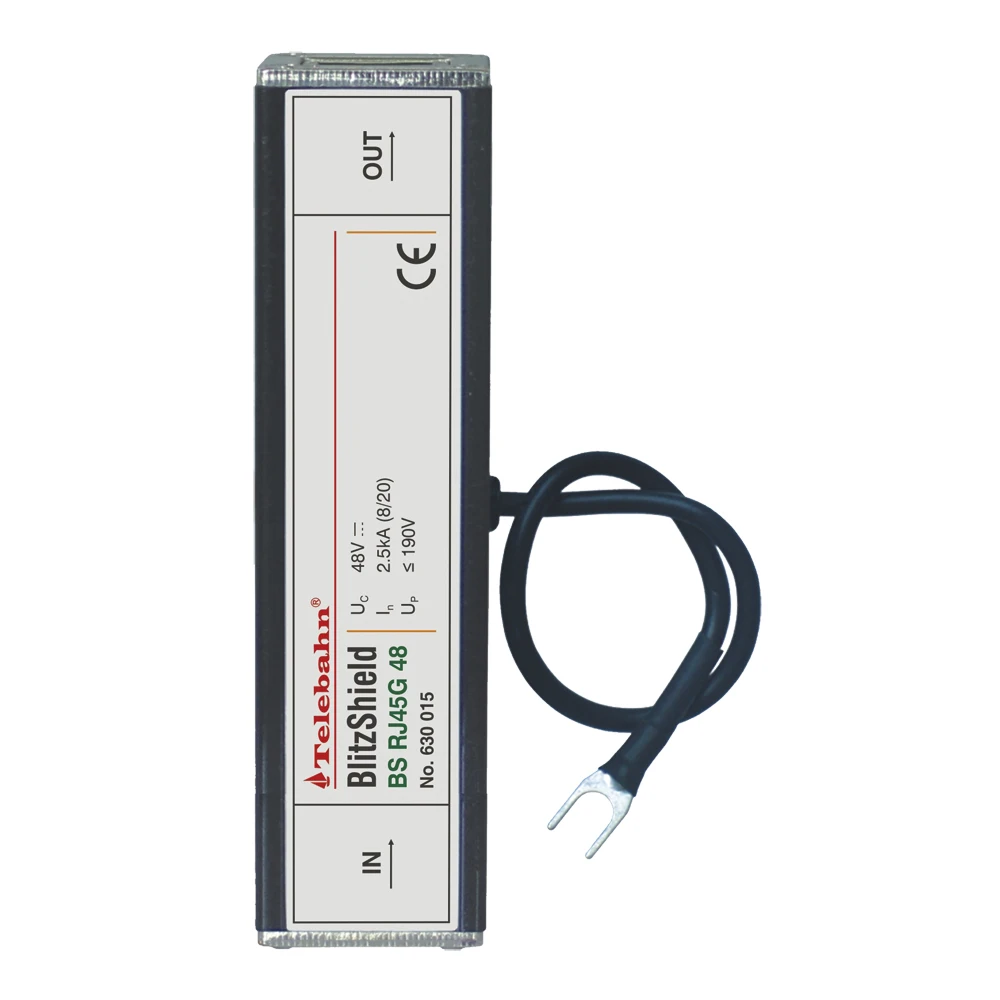

100M or 1000M 5-48V DC gigabit rohs network poe lan rj45 ethernet surge protector

Product details
Brand Name:Telebahn;Material:Alumimun;
Product name:computer data transmission and network system lightning protector;Nominal voltage UN:48V;
Color:Black;Nominal current IL:1A;
Place of Origin:China;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Certificate:CE Certification;Model Number:BS RJ45G 48 (B);
Supply Ability:10000 Piece/Pieces per Quarter;Port:zhuhai,shenzhen;
Application:Protecting for RJ45 POE network;Warranty:3 Years;
Type:Signal system surge protector;Packaging Detail:120pcs/carton;
In (8/20us):10KA;

100M or 1000M 5-48V DC gigabit rohs network poe lan rj45 ethernet surge protector







Product description:

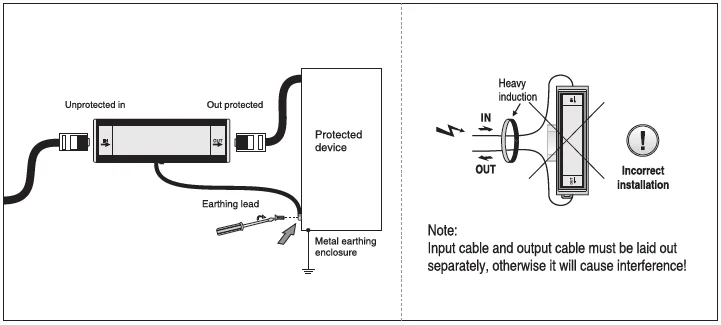

According to the concept of lightning protection zone, this surge protective device is installed at LPZ 0B -2 or higher interface or directly installed in the front near the equipment; according to IEC standard for CAT 6 or Class E integrated wiring system; all the industrial Ethernet 10M, 100M, 1GBit or higher network surge protection; nominal current, continuous DC high voltage, to support the POE network with power supply system.



Main character:

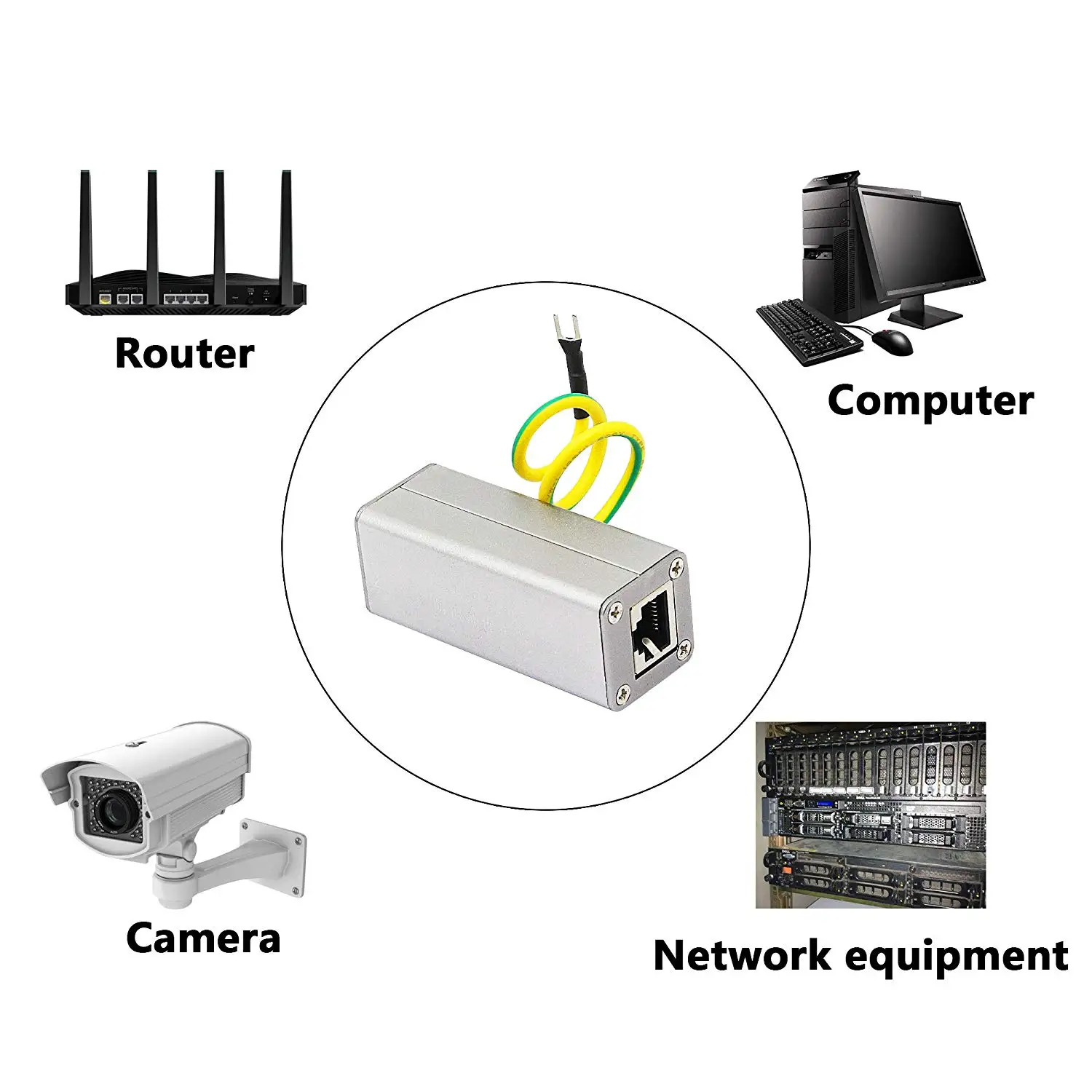

1. For protecting computer data transmission system, network system and so on

2. Good discharge capacity, low voltage protection level

3. Quick response, high transmission speed, low signal attenuation

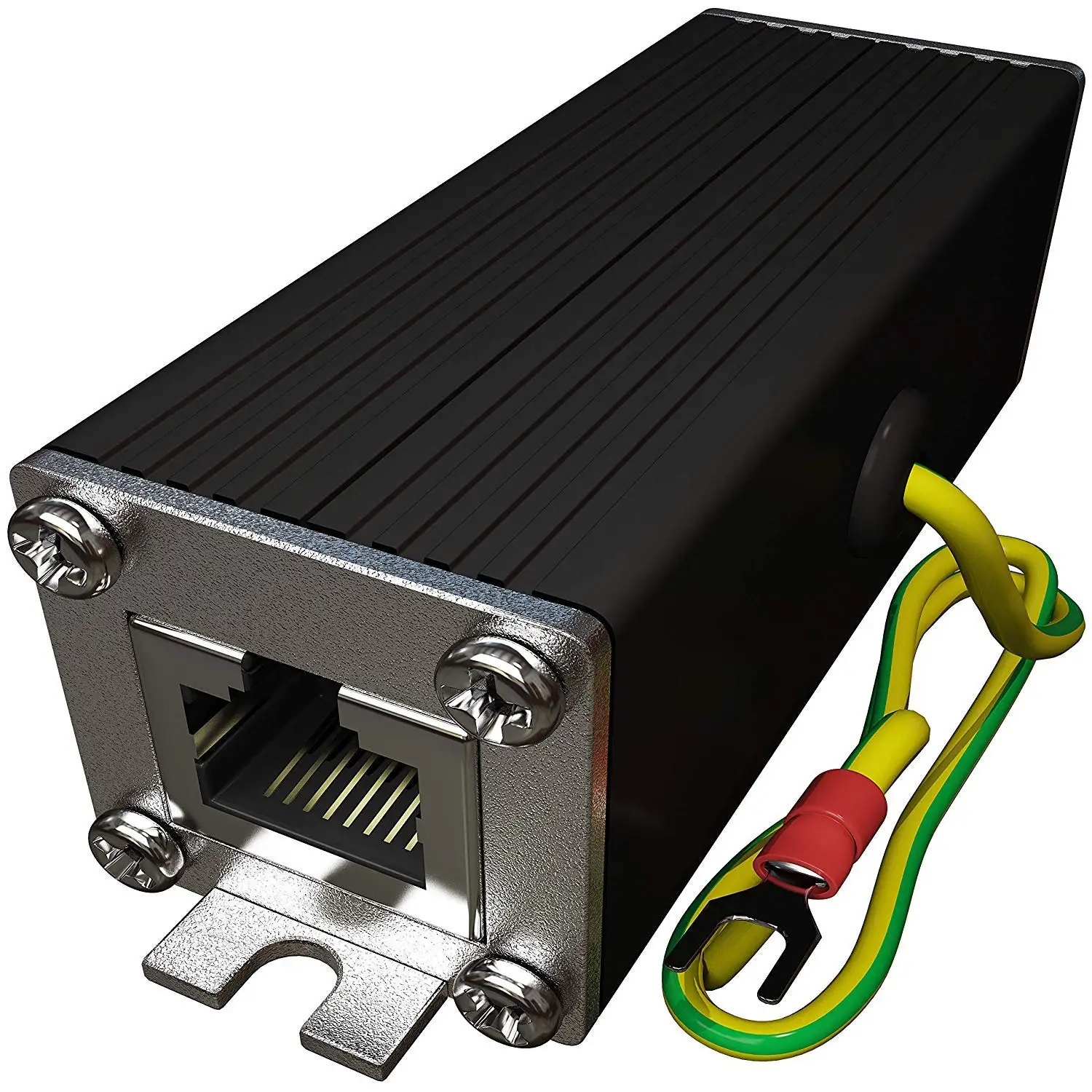

4. Metallic housing RJ45 connection, easy for installation

5. Optional with DIN rail installation



Parameters:

Type



                           BS RJ45G 48 (B)

Art.-No. 630 014
SPD category

C1, C2, C3

Norminal voltageUN48V
Rated voltage (max. continuous d.c voltage) Uc48V
Rated voltage (max. continuous a.c voltage)Uc34V
Max. Continuous d.c. voltage (pair-pair POE) Uc57V
Nominal currentIL1.0A
Lightning impulse current (10/350)Iimp

                           0.5kA (Line-PG)

Nominal discharge current (8/20)In0.15kA (Line-line), 2.5kA (Line-PG)
Total norminal discharge current (8/20)In10kA (Line-PG)
Nominal discharge current (8/20) (pair-pair POE)In

0.15kA

Voltage protection level at InUp

 ≤190V (Line-line) ,  ≤600V (Line-PG),  ≤600V (line-line POE)

Transmission frequency

fG

500MHz (line-PG)

Insertion loss at 250MHz ≤2dB
Capacitance C≤ 165pF (Line-line),  ≤255pF (Line-PG)
Operating temperature range  -40℃-+80℃
Connectional input/output

RJ45 shield socket

Pinning

1/2, 3/6, 4/5, 7/8

 Mounting on

 35mm DIN rail

Earthing via

Type B: outgoing cable 1.5mm2 x 300mm

Shield earthing

Indirectly via integrated spark gap

Test standards YD/T 1542; GB 18802.21; IEC 61643-21
Certification

 CE (LVD, EMC)
